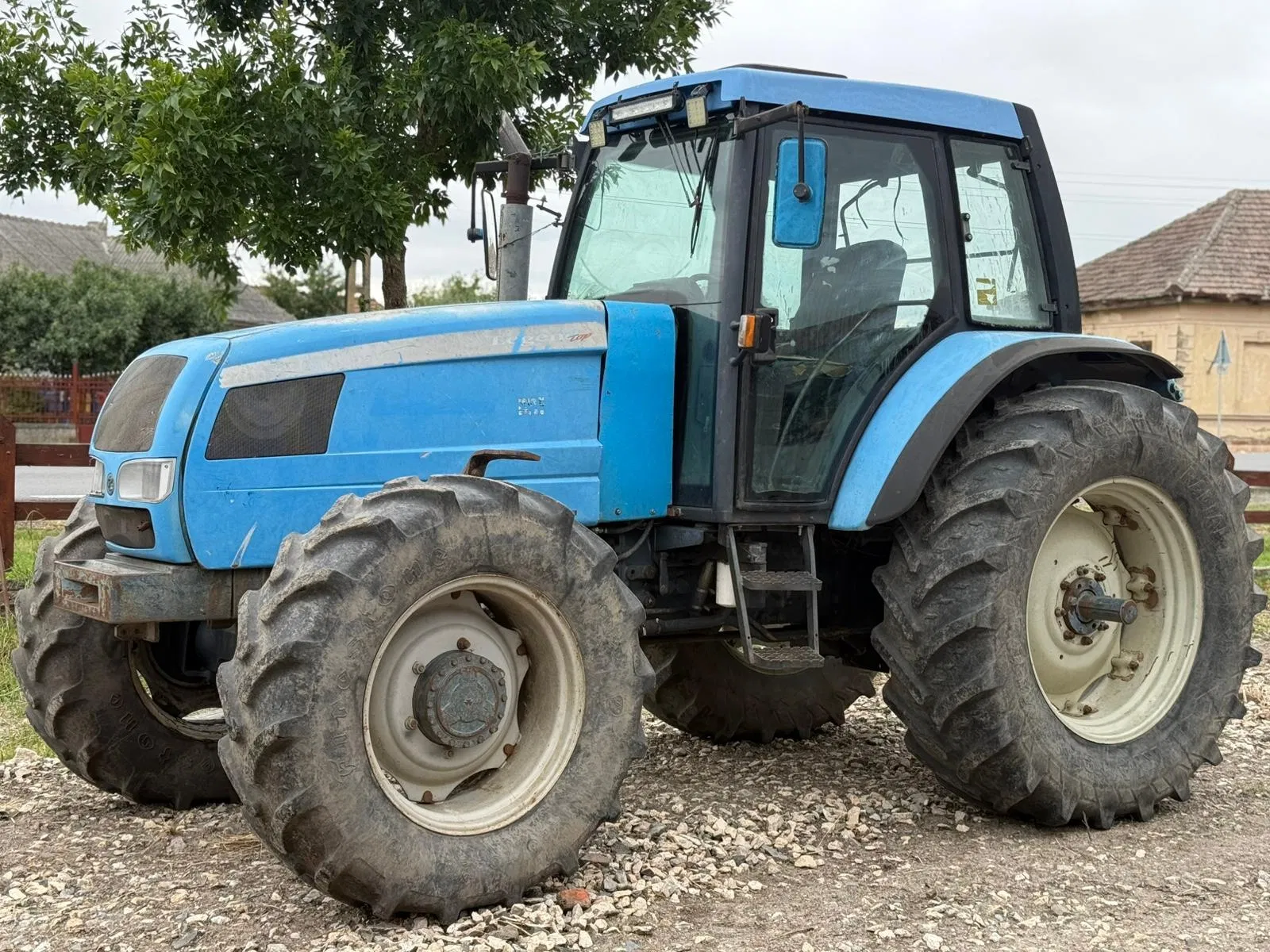

Landini Legend 145
Landini Legend 145 — Model year 1993-19971997-2001 · 138 hp. Reference specifications; pending source verification.
The Landini Legend 145 is a tractor with a rated power of 138 hp, positioning it at the more powerful end of its class. This model was manufactured from 1993 to 2001. It features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. Its operating weight is listed at 5601 kg, suitable for operations ranging from 200 to 800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
138 hp
Weight
5601 kg
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
138 hp
Recorded weight
5601 kg
Transmissions
36-speed
Production years
1993-2001
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Row-Crop tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Fuel tank190.0 LReference
Engine102.9 kWReference
Perkins 1006-6THR2Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Power102.9 kWReference
Rated RPM2200Reference
Torque552.2 NmReference
Torque RPM1400Reference
Transmission
36-speedReference
72-speedReference
Gears36 forward and reverseReference
Gears72 forward and reverseReference
PTO & Hydraulics
Total flow53.0 lpmReference
Rear lift6501 kgReference
Rear PTO Type540/1000/groundReference
Dimensions
Wheelbase279 cmReference
Weight5601 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Ag front16.9R28Reference
Ag rear20.8R38Reference
Length497 cmReference
Height295 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
