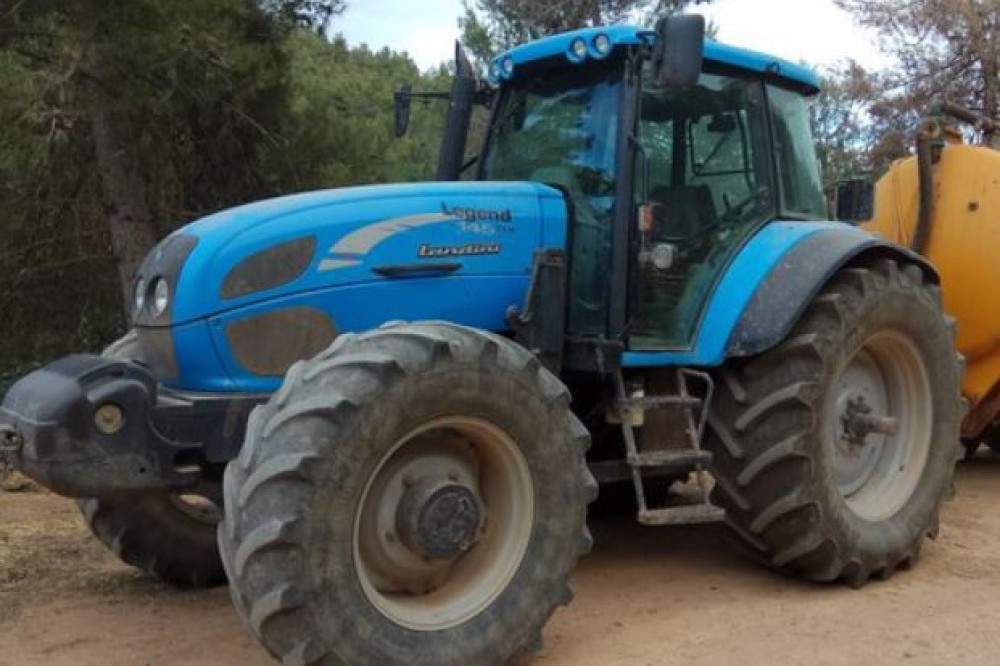

The Landini Legend 145 TDI is a tractor model with an output of 130 hp, categorising it among higher-powered machines in its class. Manufactured between 2003 and 2005, the Legend 145 TDI features a 6-cylinder turbocharged diesel liquid-cooled engine, which transmits power through a 4-wheel drive system and a 36-speed gearbox. The listed weight of the tractor is 5937 kg. It is intended for use on areas of approximately 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Weight
5937 kg
Catalogue coverage
Variants represented
2
Richest spec table
37 rows
Recorded power
130 hp
Recorded weight
5937 kg
Transmissions
36-speed
Production years
2003-2005
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Row-Crop tractorReference
Four-wheel driveReference
Engine
Perkins 6.0L 6-cyl dieselReference
Engine107.4 kWReference
Perkins 1106-E60TAReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
EmissionsStage IIReference
Power107.4 kWReference
Rated RPM2200Reference
Torque603.4 NmReference
Transmission
36-speedReference
72-speedReference
108-speedReference
TransmissionTopReference
Gears36 forward and reverseReference
TransmissionPower SixReference
Gears72 forward and reverseReference
TransmissionTop-TronicReference
Gears108 forward and 36 reverseReference
PTO & Hydraulics
PTO (claimed)96.9 kWReference
Hydraulic system66.2 LReference
Capacity66.2 LReference
Pump flow97.3 lpmReference
Rear lift6985 kgReference
Rear PTO Type540/1000Reference
Capacities
Fuel261.2 LReference
Dimensions
Wheelbase279 cmReference
Weight5937 kgReference
Length544 cmReference
Width218 cmReference
Height279 cmReference
Ground clearance53 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
