Tractor · 2001Unverified

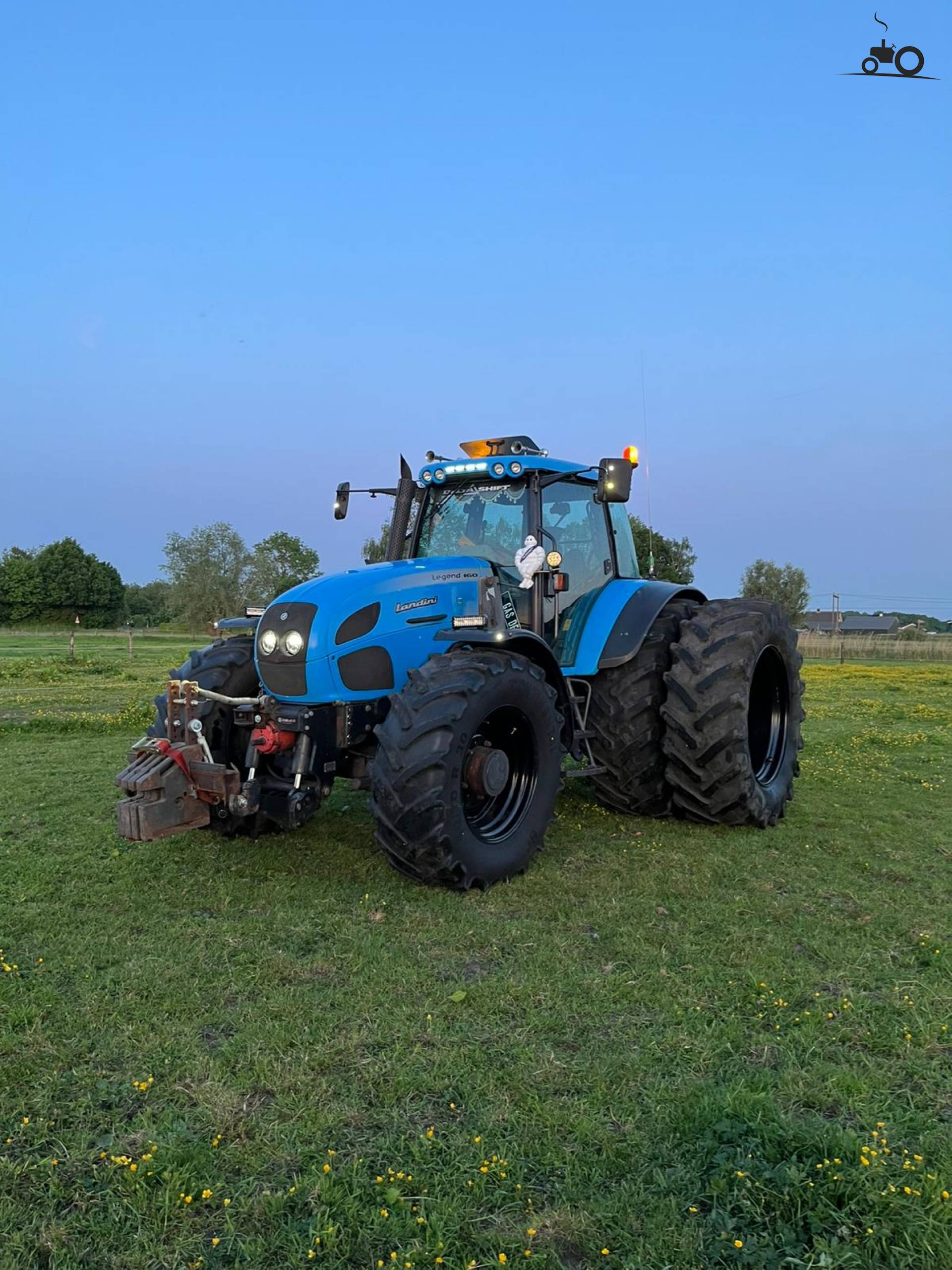

Landini Legend 160
Landini Legend 160 — Legend Series · 165 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
165 hp
Weight
6101 kg
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Fuel tank260.0 LReference
Engine (gross)123.0 kWReference
Engine (net)118.5 kWReference
Perkins 1006-60TWReference
intercooled turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Power (net)118.5 kWReference
Power (gross)123.0 kWReference
Compression17.25:1Reference
Rated RPM2200Reference
Torque666.1 NmReference
Torque RPM1300Reference
Transmission
36-speed shuttleReference
72-speedReference
108-speedReference
TypeshuttleReference
Gears36 forward and reverseReference
TransmissionPower-sixReference
Gears72 forward and reverseReference
TransmissionDeltashiftReference
Gears108 forward and 36 reverseReference
PTO & Hydraulics
PTO (claimed)106.5 kWReference
Total flow79.1 lpmReference
Rear TypeIIIReference
Rear lift8401 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase279 cmReference
Weight6101 kgReference
Front tire480/65R28Reference
Rear tire600/65R38Reference
Ag front480/65R28Reference
Ag rear600/65R38Reference
Length522 cmReference
Width238 cmReference
Height (cab)279 cmReference
Ground clearance55 cmReference
Front tread184 to 225 cmReference
Rear tread179 to 229 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
