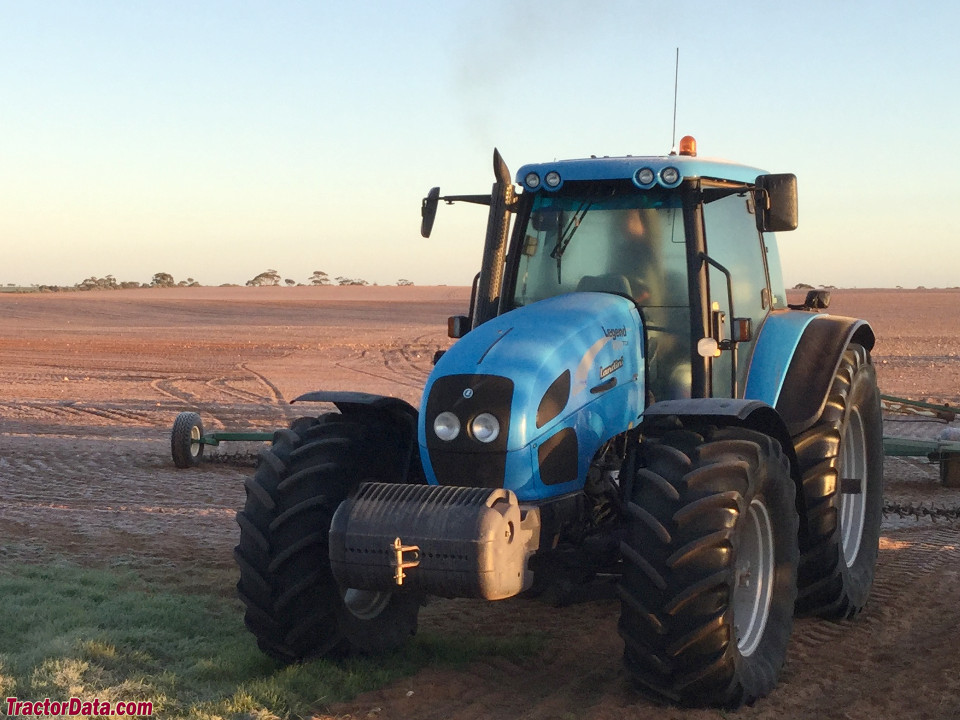

The Landini Legend 165 TDI is a tractor with a rated power output of 145 hp, positioning it at the higher end of its class in terms of power. This model was manufactured from 2003 to 2005. It features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a 36-speed gearbox. The listed operating weight of the Landini Legend 165 TDI is 6237 kg, making it suitable for operations covering an area of 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
145 hp
Weight
6237 kg
Catalogue coverage
Variants represented
2
Richest spec table
37 rows
Recorded power
145 hp
Recorded weight
6237 kg
Transmissions
36-speed
Production years
2003-2005
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Row-Crop tractorReference
Four-wheel driveReference
Engine
Perkins 6.0L 6-cyl dieselReference
Engine120.1 kWReference
Perkins 1106-E60TAReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
EmissionsStage IIReference
Power120.1 kWReference
Rated RPM2200Reference
Torque641.4 NmReference
Transmission
36-speedReference
72-speedReference
108-speedReference
TransmissionTopReference
Gears36 forward and reverseReference
TransmissionPower SixReference
Gears72 forward and reverseReference
TransmissionTop-TronicReference
Gears108 forward and 36 reverseReference
PTO & Hydraulics
PTO (claimed)108.1 kWReference
Hydraulic system66.2 LReference
Capacity66.2 LReference
Pump flow97.3 lpmReference
Rear lift8382 kgReference
Rear PTO Type540/1000Reference
Capacities
Fuel261.2 LReference
Dimensions
Wheelbase279 cmReference
Weight6237 kgReference
Length544 cmReference
Width238 cmReference
Height280 cmReference
Ground clearance54 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
