Tractor · 2003Unverified

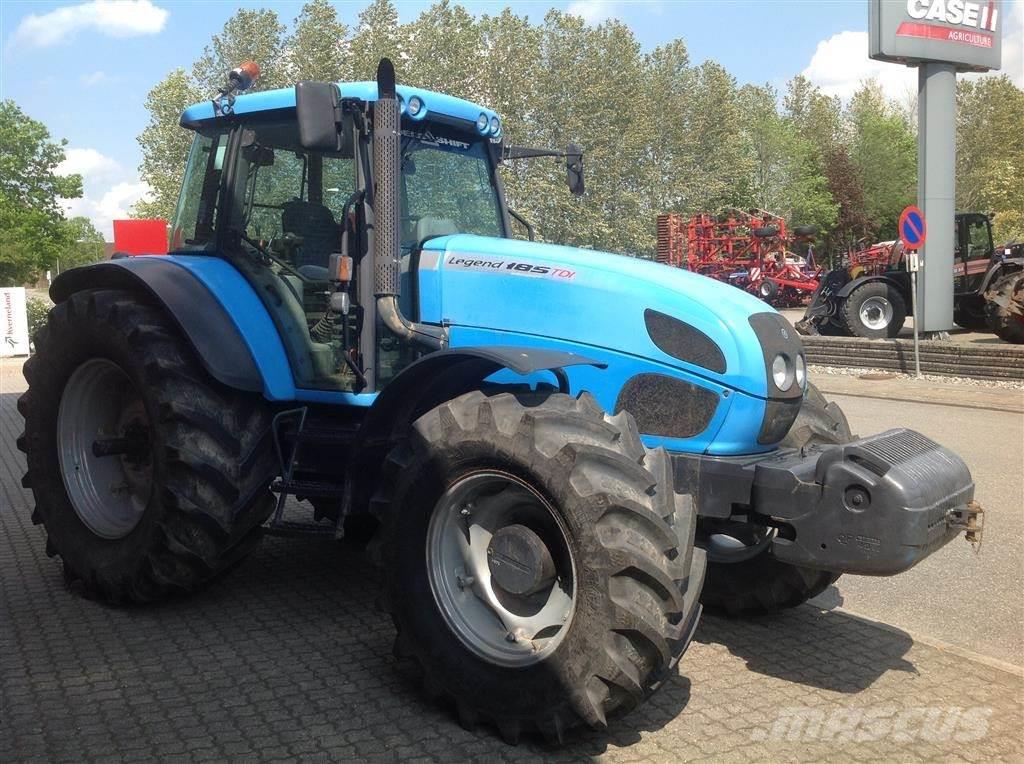

Landini Legend 185 TDI
Landini Legend 185 TDI — Legend Series · 162 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
162 hp
Weight
6237 kg
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Row-Crop tractorReference
Four-wheel driveReference
Engine
Perkins 6.0L 6-cyl dieselReference
Engine135.0 kWReference
Perkins 1106-E60TAReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
EmissionsStage IIReference
Power135.0 kWReference
Rated RPM2200Reference
Torque695.6 NmReference
Transmission
72-speedReference
108-speedReference
TransmissionPower SixReference
Gears72 forward and reverseReference
TransmissionTop-TronicReference
Gears108 forward and 36 reverseReference
PTO & Hydraulics
PTO (claimed)120.8 kWReference
Hydraulic system66.2 LReference
Capacity66.2 LReference
Pump flow97.3 lpmReference
Rear lift8382 kgReference
Rear PTO Type540/1000Reference
Capacities
Fuel261.2 LReference
Dimensions
Wheelbase279 cmReference
Weight6237 kgReference
Length544 cmReference
Width248 cmReference
Height279 cmReference
Ground clearance54 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
