Tractor · 2008Unverified

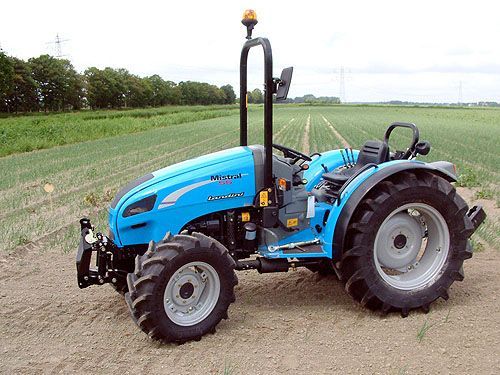

Landini Mistral America 40
Landini Mistral America 40 · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
1616 kg
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Four-wheel driveReference
Wet disc brakesReference
cab optionalReference
Engine
Yanmar 1.6L 3-cyl dieselReference
Fuel tank50.3 LReference
Engine26.1 kWReference
Yanmar 3TNV88Reference
dieselReference
3-cylinderReference
Displacement1.6 LReference
Power26.1 kWReference
Torque103.1 NmReference
Transmission
12-speedReference
16-speedReference
TransmissionMechanical shuttleReference
Gears12 forward and reverseReference
TransmissionMech shuttle/creeperReference
Gears16 forward and reverseReference
Transmissionhydrostatic 3-rangeReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)23.9 kWReference
Valves2Reference
Valves3 optionalReference
Valves1 front optionalReference
Pump flow28.0 lpmReference
Total flow47.3 lpmReference
Rear TypeIReference
Rear lift1197 kgReference
Front HitchINReference
Front lift399 kgReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Front PTOoptionalReference
Front PTO Type1000Reference
Dimensions
Wheelbase181 cmReference
Weight1616 kgReference
Rear tire320/70-20Reference
Ag rear320/70-20Reference
Length341 cmReference
Width132 cmReference
Height229 cmReference
Ground clearance34 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
