Tractor · 2005Unverified

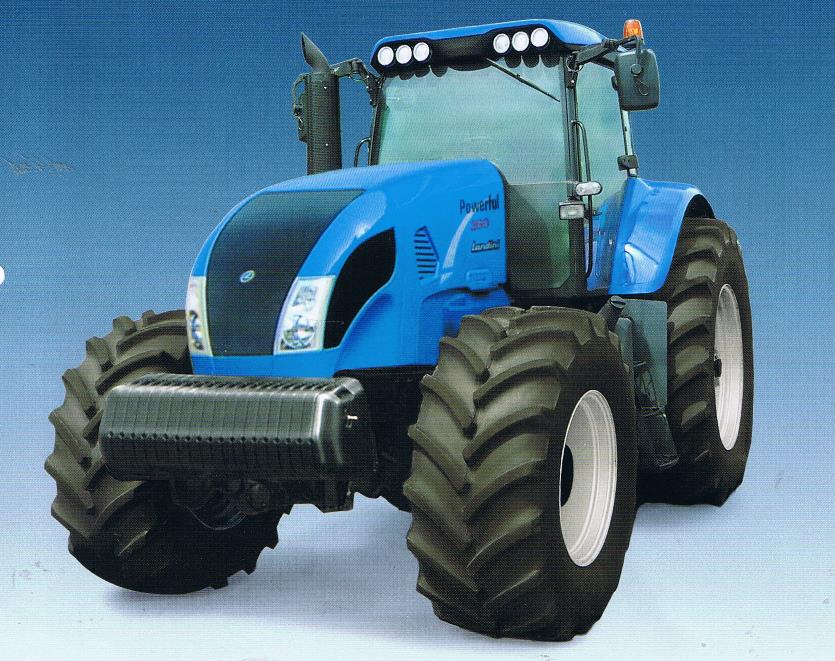

Landini Powerful 230

Name: Landini Powerful 230
Brand: Landini

Landini Powerful 230 — Powerful Series · 230 hp. Reference specifications; pending source verification.

The Landini Powerful 230 is a 230 hp tractor, categorising it as a high-powered machine in its class. Manufactured from 2005 to 2007, it features a 6-cylinder turbocharged diesel liquid-cooled engine, driving through four-wheel drive with a powershift transmission. The listed weight of this model is 10039 kg, and it is suited for tasks covering approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

230 hp

Weight

10039 kg

Catalogue coverage

Variants represented

Richest spec table

50 rows

Recorded power

230 hp

Recorded weight

10039 kg

Transmissions

18-speed full power shift

Production years

2005-2007

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLandini (a part of Argo)Reference

Row-Crop tractorReference

Built in Doncaster, EnglandReference

Four-wheel driveReference

Differential lockelectro-hydraulicReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

ZTX230similar McCormick Intl modelReference

Engine

Cummins 8.3L 6-cyl dieselReference

Fuel tank570.0 LReference

Engine171.5 kWReference

Standard tires (ag)Front: 540/65R30. Rear: 650/65R38Reference

Cummins QSCReference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement8.3 LReference

Bore/Stroke114 x 135 mmReference

Power171.5 kWReference

Rated RPM2200Reference

Torque900.4 NmReference

Torque RPM1600Reference

Starter typeelectricReference

Transmission

18-speed full power shiftReference

36-speed creeperReference

TransmissionFunkReference

Typefull power shiftReference

Gears18 forward and 8 reverseReference

TypecreeperReference

Gears36 forward and 16 reverseReference

PTO & Hydraulics

Typeclosed centerReference

Pump flow110.1 lpmReference

Pump flow149.9 lpmReference

Rear TypeIIIReference

Rear lift11000 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.375)Reference

Rear PTO Type1000 (1.75)Reference

Engine RPM540E@1400Reference

Engine RPM1000@2090Reference

Dimensions

Wheelbase305 cmReference

Weight10039 kgReference

Front tire540/65R30Reference

Rear tire650/65R38Reference

Length533 cmReference

Height (cab)310 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
