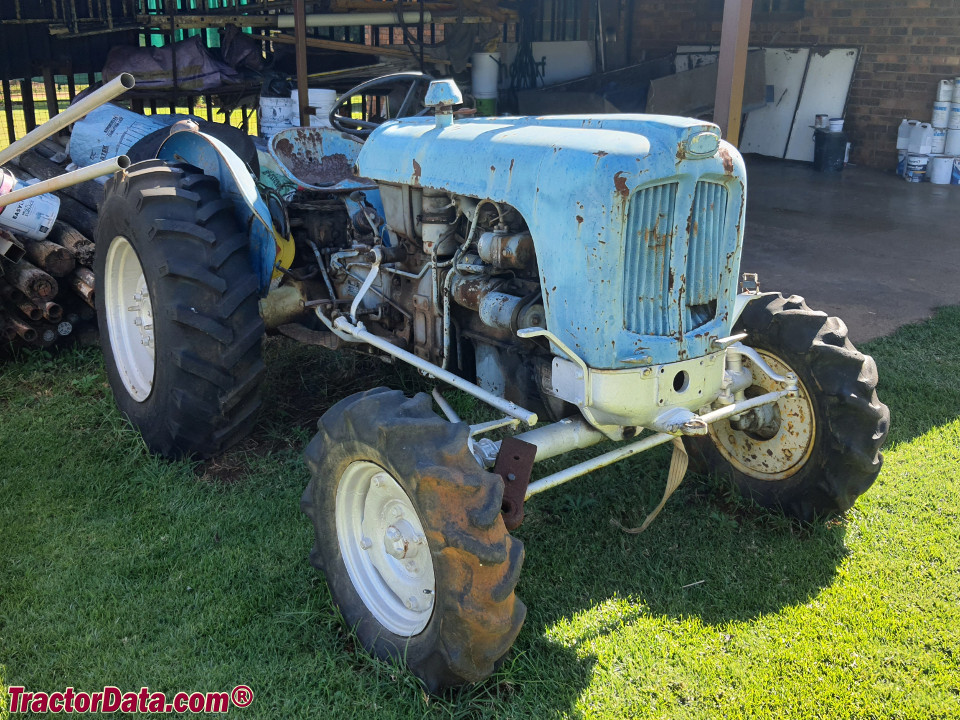

The Landini R 4000 is a tractor with a rated output of 40 hp, categorising it as one of the more compact models in its class. It was manufactured from 1961 to 1968. The tractor is equipped with a 3-cylinder liquid-cooled engine, which drives through a two-wheel drive system and a 6-speed gearbox. The listed weight of the Landini R 4000 is 1540 kg, and it is designed for use on areas of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
1540 kg
Catalogue coverage
Variants represented
2
Richest spec table
27 rows
Recorded power
40 hp
Recorded weight
1540 kg
Transmissions
6-speed
Production years
1961-1968
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Two-wheel driveReference
Manual steeringReference
Drum brakesReference
Open operator station.Reference
Engine
Perkins 2.4L 3-cylReference
Engine29.8 kWReference
Perkins P3Reference
3-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke89 x 127 mmReference
Power29.8 kWReference
Rated RPM2000Reference
Transmission
6-speedReference
8-speedReference
Gears6 forward and 2 reverseReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540/groundReference
Dimensions
Wheelbase184 cmReference
Weight1540 kgReference
Front tire5.50-16Reference
Rear tire12.4-28Reference
Ag front5.50-16Reference
Ag rear12.4-28Reference
Length291 cmReference
Height134 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
