Tractor · 1957Unverified

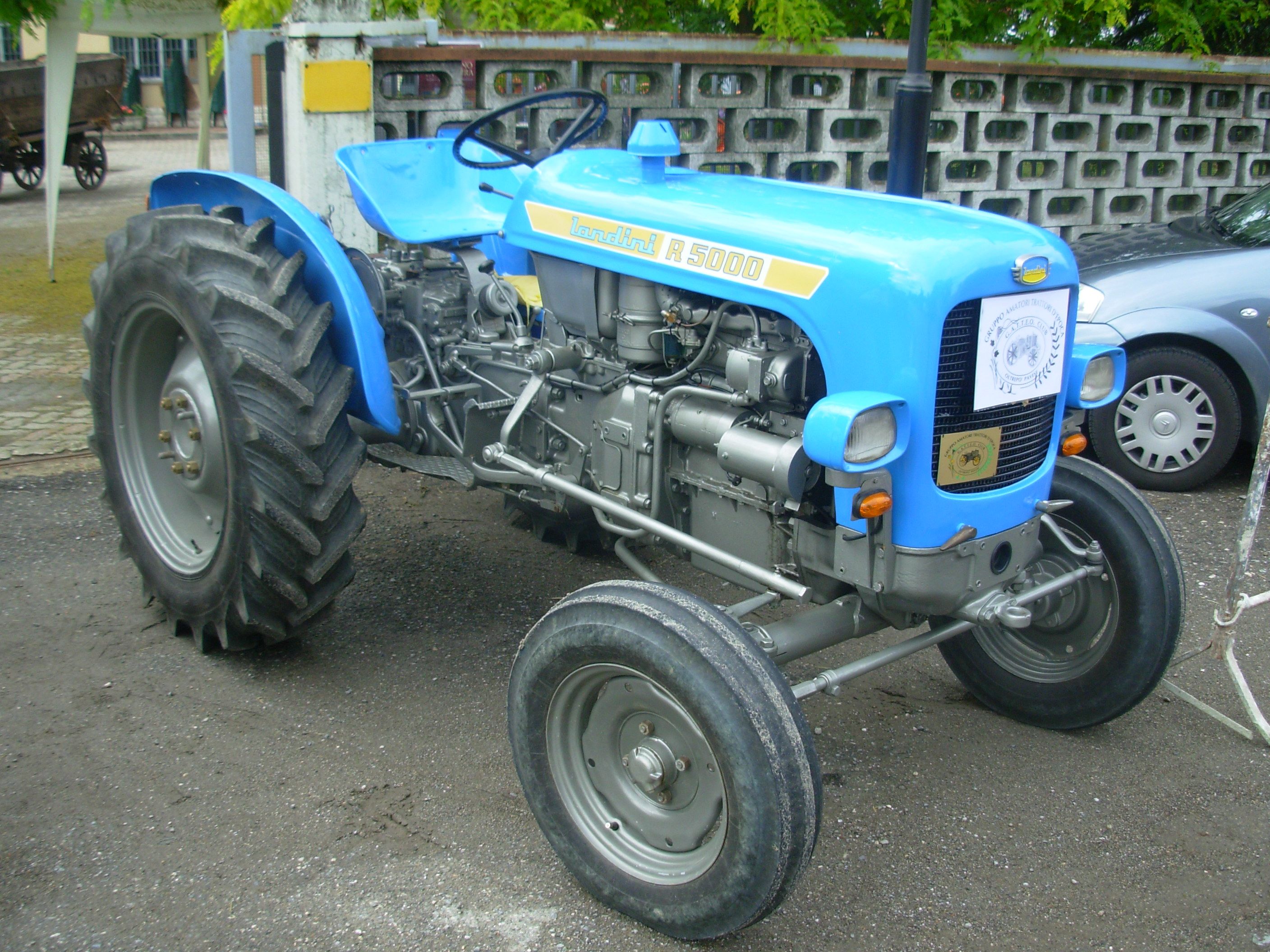

Landini R 50
Landini R 50 — Utility tractor · 49 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Weight
2600 kg
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Utility tractorReference
Built in ItalyReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
R 502WDReference
DT 504WDReference
Engine
Perkins 3.1L 4-cyl dieselReference
Fuel tank48.1 LReference
Engine36.8 kWReference
PerkinsReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke89 x 127 mmReference
Power36.8 kWReference
Rated RPM1800Reference
Starter typeelectricReference
Coolant capacity16.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Dimensions
Wheelbase188 cmReference
Weight2600 kgReference
Front tire6.00-19Reference
Rear tire13-28Reference
Ag front6.00-19Reference
Ag rear13-28Reference
Ag rear11-36Reference
Length294 cmReference
Width176 cmReference
Height160 cmReference
Ground clearance44 cmReference
Speeds
With 13-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
