Tractor · 1973Unverified

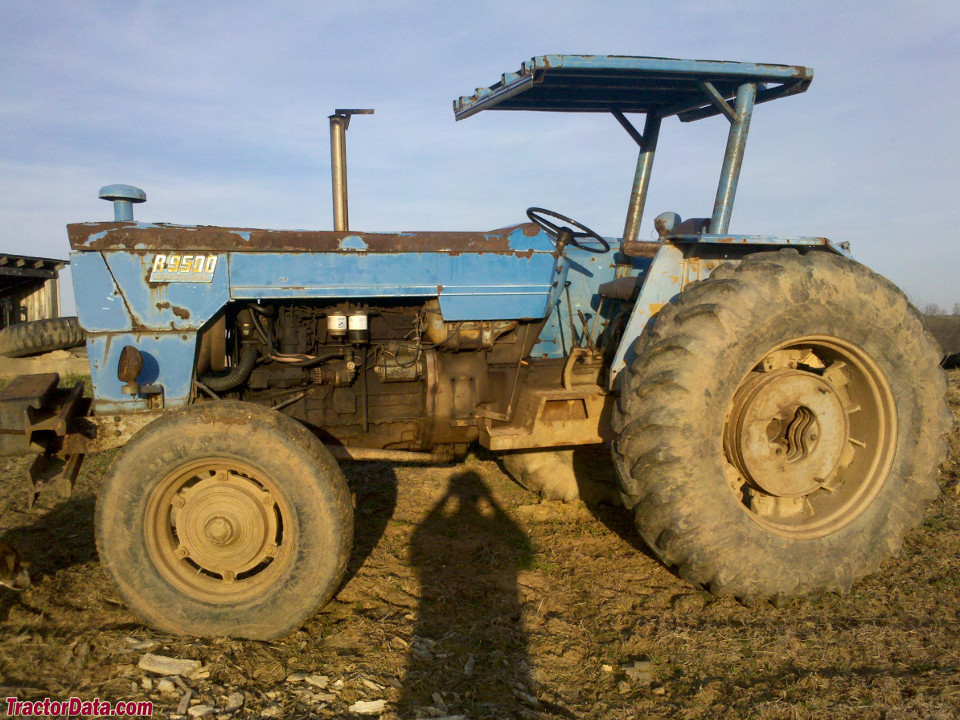

Landini R9500 Special
Landini R9500 Special · 98 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
98 hp
Max power
59.4 kW
Weight
3705 kg
Hover a source tag to verify
Overview
ManufacturerLandiniReference
Built in ItalyReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Differential dry disc brakesReference
Cab optionalReference
Engine
Perkins 5.8L 6-cylReference
Fuel tank95.0 LReference
Engine69.4 kWReference
Drawbar (tested)59.4 kWReference
Perkins A6.354Reference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Power69.4 kWReference
Air cleanerpaper elementsReference
Compression16:1Reference
Rated RPM2100Reference
Starter volts12Reference
Power at rated engine speed72.9 kWReference
Max power59.4 kWReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (tested)72.9 kWReference
Total flow35.6 lpmReference
Rear lift3200 kgReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Power at rated PTO speed65.7 kWReference
Dimensions
Wheelbase242 cmReference
Weight3705 kgReference
Front tire7.50-20Reference
Rear tire18.4-34Reference
Ag front7.50-20Reference
Ag rear18.4-34Reference
Ag front13.6-24Reference
Length379 cmReference
Operating weight3705 kgReference
Ballasted weight6214 kgReference
Test results
Diesel 12-speed 2WDSeptember 13 - 19, 1972Link: Nebraska Tractor Test 1107 fileReference
PTO performanceReference
Fuel use23.8 l/hourReference
Fuel use20.4 l/hourReference
Drawbar performanceReference
Fuel use23.1 l/hourReference
Max pull4633 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
