Tractor · 2001Unverified

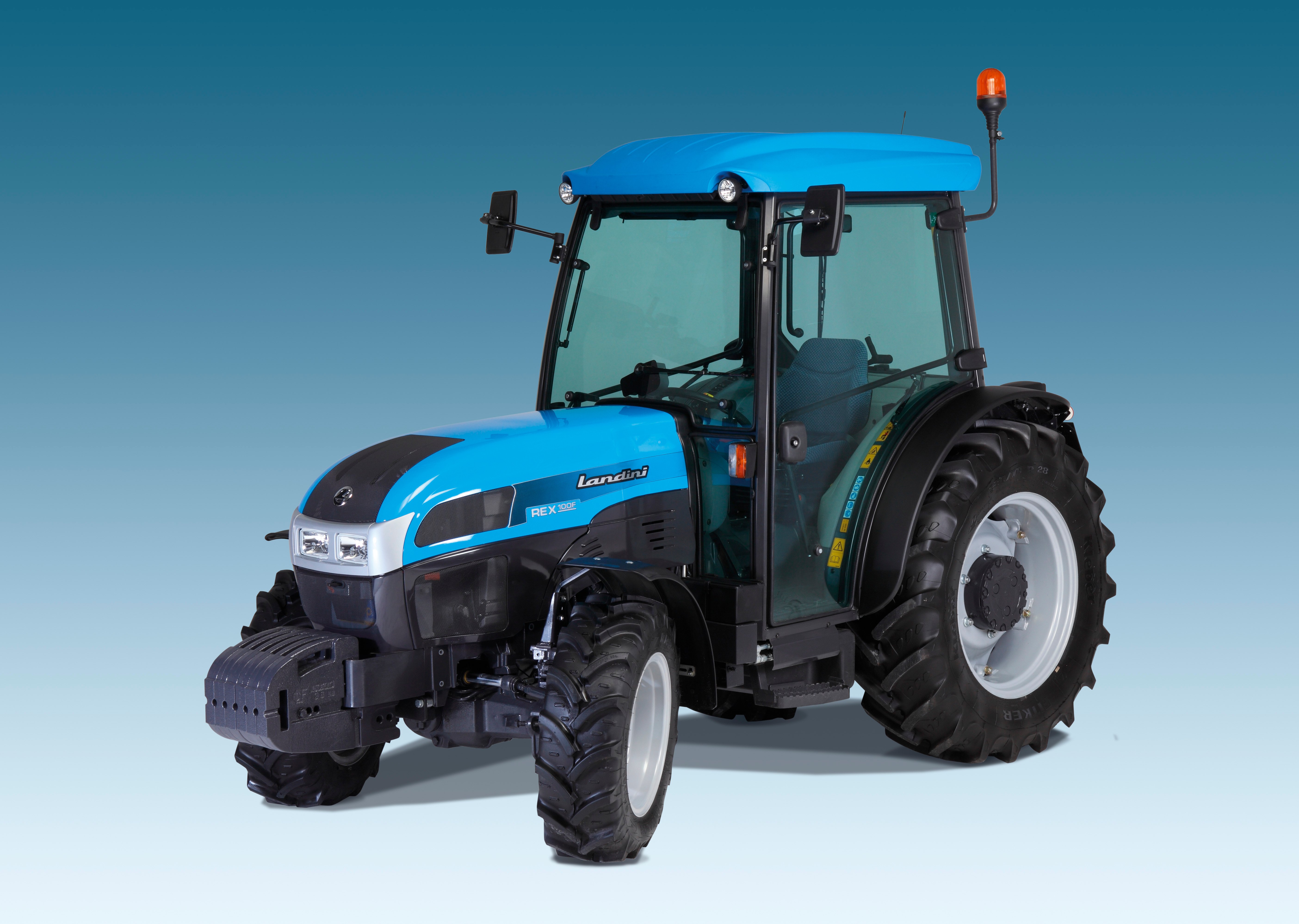

Landini Rex 100
Landini Rex 100 — Rex Series · 86 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
86 hp
Weight
6173 to 6393 pounds
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Orchard/Vineyard tractorReference
Four-wheel driveReference
Final driveselectro-hydraulic front and rearReference
Power steeringReference
Wet disc brakesReference
Two-post foldable mid-mount ROPS. Cab optional.Reference
Variants
Rex 100Fnarrow orchardReference
Rex 100GTwide orchardReference
Engine
Perkins 4.0L 4-cyl dieselReference
F Fuel tank53.0 LReference
GT Fuel tank62.1 LReference
Engine70.8 kWReference
Perkins 1004-40TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke100 x 127 mmReference
Power70.8 kWReference
Fuel systemdirect injectionReference
Compression17.25:1Reference
Rated RPM2200Reference
Torque387.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
40-speedReference
Gears12 forward and reverseReference
Clutch304.8mm dry discReference
TransmissionDeltashiftReference
Gears40 forward and 12 reverseReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)64.1 kWReference
F Valves2Reference
GT Valves3Reference
Pump flow53.7 lpmReference
Total flow72.7 lpmReference
Total flow84.8 lpmReference
Steering flow18.9 lpmReference
Steering flow30.7 lpmReference
Rear TypeIIReference
Rear lift2600 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/750Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase213 cmReference
Weight6173 to 6393 poundsReference
Length357 cmReference
F Width140 cmReference
GT Width156 cmReference
Height (cab)225 cmReference
F Weight2800 kgReference
GT Weight2899 kgReference
Ground clearance38 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
