Tractor · 2006Unverified

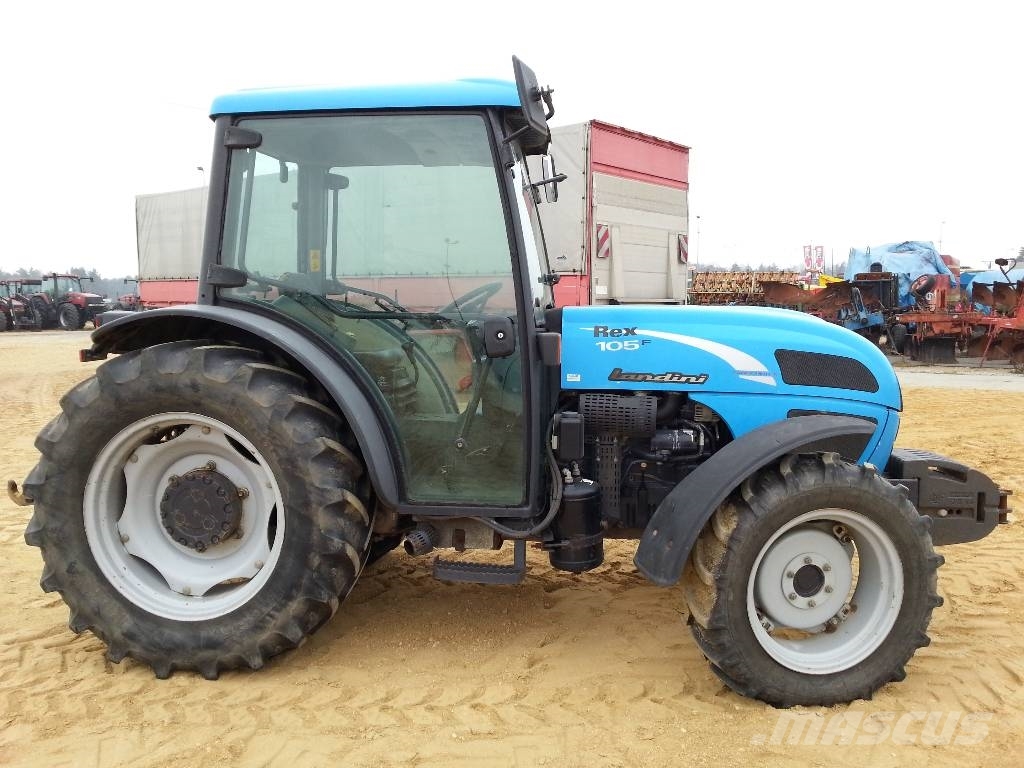

Landini Rex 105

Name: Landini Rex 105
Brand: Landini

Landini Rex 105 — Rex Series · 91 hp. Reference specifications; pending source verification.

The Landini Rex 105 is a tractor with an engine rating of approximately 91 hp, a mid-range figure for its class. It was produced from 2006 to 2009. The tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a 15-speed gearbox. Its operating weight falls within the range of 5753 to 6259 pounds, and it is suitable for operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

91 hp

Weight

5753 to 6259 pounds

Catalogue coverage

Variants represented

Richest spec table

69 rows

Recorded power

91 hp

Recorded weight

2609 kg

Transmissions

15-speed mechanical shuttle

Production years

2006-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLandini (a part of Argo)Reference

Orchard/Vineyard tractorReference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Two-post mid-mount ROPS. Cab optional with available air-conditioning.Reference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank43.1 LReference

Fuel tank68.1 LReference

Engine73.5 kWReference

Perkins 1104C-44TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

EmissionsStage IIReference

Power73.5 kWReference

Fuel systemdirect injectionReference

Compression18.2:1Reference

Rated RPM2200Reference

Torque363.4 NmReference

Torque RPM1400Reference

Transmission

15-speed mechanical shuttleReference

20-speed power shuttleReference

TransmissionSpeed FiveReference

Typemechanical shuttleReference

Gears15 forward and reverseReference

Clutch304.8mm mechanical dry discReference

Also available with creeper option providing 30 speeds forward and reverse.Reference

TransmissionPower FiveReference

Typepower shuttleReference

Gears20 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Also available with creeper option providing 40 speeds forward and reverse.Reference

PTO & Hydraulics

PTO (claimed)67.9 kWReference

Pressure179.3 barReference

Valves2Reference

Pump flow52.2 lpmReference

Total flow81.8 lpmReference

Steering flow29.5 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift2585 kgReference

Rear PTOindependentReference

Clutchmechanical dry discReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/750 (1.375)Reference

Rear PTO Type540Reference

Rear PTO Type1000 (1.375)Reference

Dimensions

2WD Wheelbase217 cmReference

4WD Wheelbase213 cmReference

Weight5753 to 6259 poundsReference

Front tire7.50-16Reference

2WD Rear tire13.6R28Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 13.6R28Reference

4WD Standard tires (ag)Front: 280/70R16. Rear: 380/70R24Reference

Length400 cmReference

Width131 cmReference

Height (steering wheel)144 cmReference

Height (cab)225 cmReference

2WD Weight2609 kgReference

4WD Weight2839 kgReference

Ground clearance38 cmReference

Front tread136 to 146 cmReference

Rear tread86 to 140 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
