Tractor · 2010Unverified

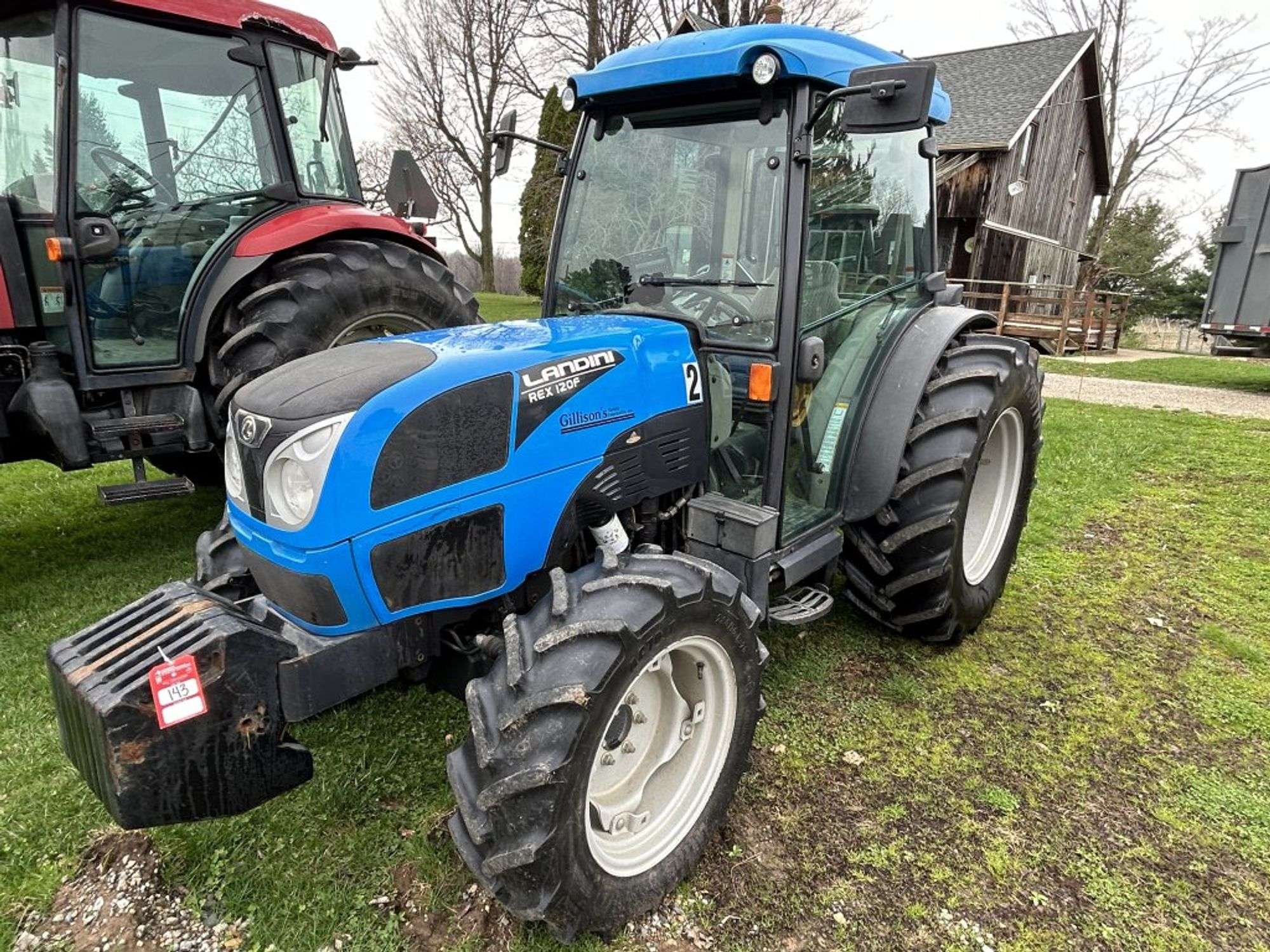

Landini Rex 120
Landini Rex 120 — Rex Series · 93 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Weight
5600 to 6313 pounds
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Wet disc brakesReference
Two-post mid-mount foldable ROPS. Cab optional with air-conditioning.Reference
Engine
Perkins 4.4L 4-cyl dieselReference
F Fuel tank40.1 LReference
GE Fuel tank40.1 LReference
GT Fuel tank57.2 LReference
F Fuel tank65.1 LReference
GE Fuel tank65.1 LReference
GT Fuel tank82.1 LReference
Engine82.2 kWReference
Perkins 1104D-44TAReference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsStage IIIReference
Power82.2 kWReference
Fuel systemdirect injectionReference
Torque410.1 NmReference
StarterelectricReference
Starter volts12Reference
Transmission
15-speed mechanical shuttleReference
15-speed power shuttleReference
TransmissionSpeed FiveReference
Typemechanical shuttleReference
Gears15 forward and reverseReference
Clutch304.8mm mechanical dry discReference
TransmissionPower FiveReference
Typepower shuttleReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (claimed)69.0 kWReference
Valves2 or 3Reference
Pump flow52.2 lpmReference
Total flow82.1 lpmReference
Steering flow29.9 lpmReference
Rear TypeIIReference
Rear lift2600 kgReference
Rear lift3250 kgReference
Dimensions
2WD Wheelbase217 cmReference
4WD Wheelbase213 cmReference
Weight5600 to 6313 poundsReference
Front tire280/70R16Reference
F Rear tire14.9R24Reference
F Standard tires (ag)Front: 280/70R16. Rear: 14.9R24Reference
GE Standard tires (ag)Front: 260/70R16. Rear: 14.9LR20Reference
GT Standard tires (ag)Front: 7.50-18. Rear: 14.9R24Reference
Length400 cmReference
F Width143 cmReference
GE Width141 cmReference
GT Width155 cmReference
F Ground clearance22 cmReference
GE Ground clearance19 cmReference
GT Ground clearance23 cmReference
F 2WD2615 kgReference
F 4WD2844 kgReference
GE 4WD2540 kgReference
GT 4WD2863 kgReference
F Steering wheel144 cmReference
GT Steering wheel144 cmReference
GE Steering wheel130 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Landini Rex 120 Height
F ROPS231 cmReference
GT ROPS231 cmReference
GE ROPS215 cmReference
Cab226 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
