Tractor · 2001Unverified

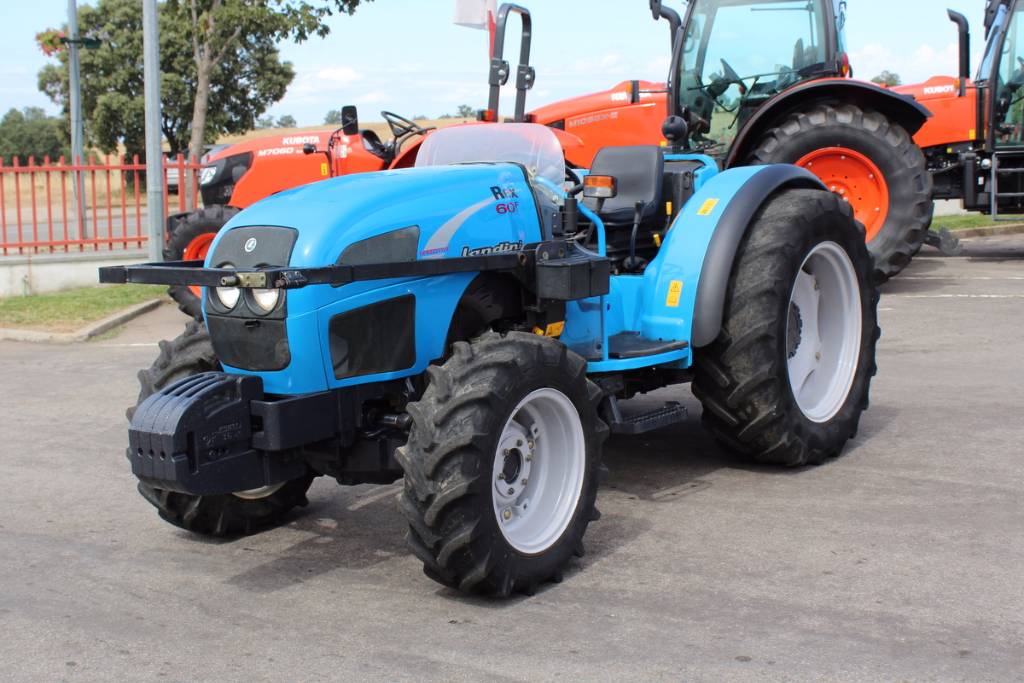

Landini Rex 60
Landini Rex 60 — Model year 2001-20052006-2009 · 49 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Weight
5578 to 5842 pounds
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Orchard/Vineyard tractorReference
Available in the narrow F (fruit) model and the low-profile GE (gound effects) model.Reference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding mid-mount ROPS. Cab optional.Reference
Variants
Rex 60VvineyardReference
Rex 60LRex 60GEReference
Engine
Perkins 2.7L 3-cyl dieselReference
Fuel tank54.1 LReference
Engine41.0 kWReference
Perkins 903-27Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke95 x 127 mmReference
Power41.0 kWReference
Compression17.5:1Reference
Rated RPM2300Reference
Torque RPM1200Reference
Starter volts12Reference
Transmission
12-speed shuttleReference
24-speed creeperReference
TypeshuttleReference
Gears12 forward and reverseReference
Clutch279.4mm dry discReference
TypecreeperReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)36.5 kWReference
Valves2 to 5Reference
Pump flow50.0 lpmReference
Total flow69.6 lpmReference
Steering flow19.7 lpmReference
Rear TypeIIReference
Rear lift2600 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/750Reference
Rear PTO Type540/1000Reference
Dimensions
F Wheelbase189 cmReference
V Wheelbase207 cmReference
Weight5578 to 5842 poundsReference
F Length332 cmReference
V Length362 cmReference
F Width133 cmReference
V Width123 cmReference
F Weight2530 kgReference
V Weight2649 kgReference
V Ground clearance25 cmReference
F Ground clearance36 cmReference
V Steering wheel130 cmReference
Electrical
GroundnegativeReference
Landini Rex 60 Height
V ROPS249 cmReference
V Cab225 cmReference
F Cab223 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
