Tractor · 2001Unverified

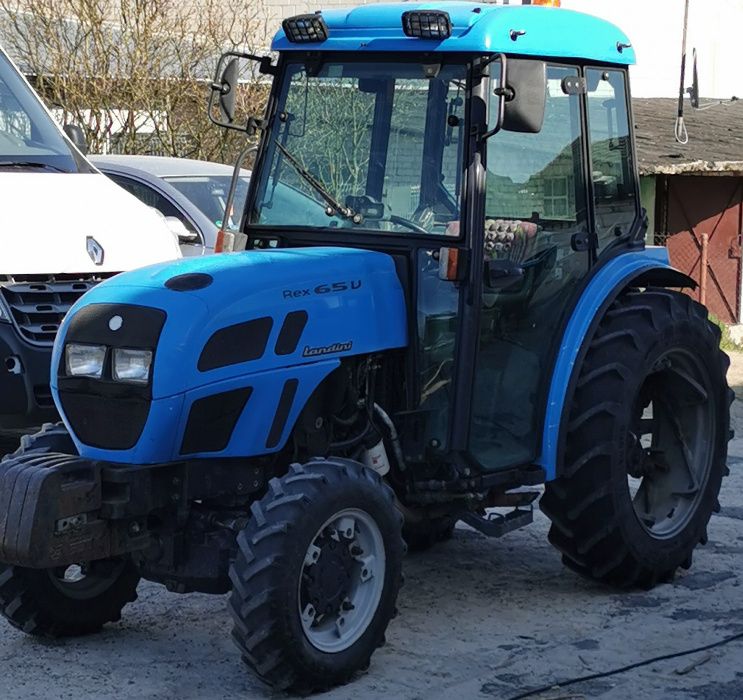

Landini Rex 65
Landini Rex 65 — Orchard/Vineyard tractor · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Orchard/Vineyard tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post foldable mid-mount ROPS. Cab optional.Reference
Engine
Perkins 2.7L 3-cyl dieselReference
Fuel tank54.1 LReference
Engine48.5 kWReference
Perkins 903-27TReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke95 x 127 mmReference
Power48.5 kWReference
Fuel systemdirect injectionReference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
24-speed creeperReference
TypeshuttleReference
Gears12 forward and reverseReference
Clutch279.4mm dry discReference
TypecreeperReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
Valves2 to 5Reference
Pump flow49.2 lpmReference
Total flow67.0 lpmReference
Steering flow18.2 lpmReference
Rear TypeIIReference
Rear lift2600 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/750Reference
Rear PTO Type540/1000Reference
Dimensions
F Wheelbase189 cmReference
V Wheelbase207 cmReference
F Length332 cmReference
V Length362 cmReference
F Width133 cmReference
V Width123 cmReference
V Ground clearance25 cmReference
F Ground clearance36 cmReference
V Steering wheel130 cmReference
Electrical
GroundnegativeReference
Landini Rex 65 Height
V ROPS249 cmReference
V Cab225 cmReference
F Cab223 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
