Tractor · 2006Unverified

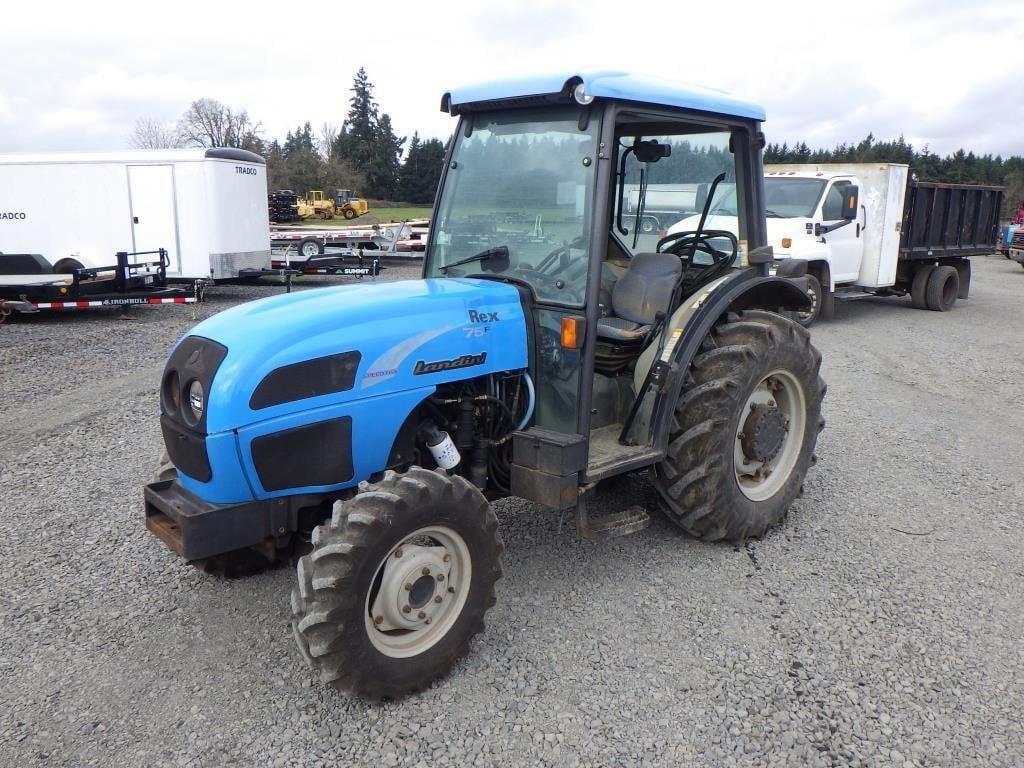

Landini Rex 75

Name: Landini Rex 75
Brand: Landini

Landini Rex 75 — Rex Series · 63 hp. Reference specifications; pending source verification.

The Landini Rex 75 tractor has a rated output of approximately 63 horsepower, positioning it towards the lower end of its class. It was produced from 2006 to 2009. The Rex 75 is equipped with a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 15-speed gearbox. Its operating weight is listed as 5753 to 6259 pounds, making it suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

63 hp

Weight

5753 to 6259 pounds

Catalogue coverage

Variants represented

Richest spec table

69 rows

Recorded power

63 hp

Recorded weight

2609 kg

Transmissions

15-speed mechanical shuttle

Production years

2006-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLandini (a part of Argo)Reference

Orchard/Vineyard tractorReference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Two-post mid-mount ROPS. Cab optional with available air-conditioning.Reference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank43.1 LReference

Fuel tank68.1 LReference

Engine50.9 kWReference

Perkins 1104C-44Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

EmissionsStage IIReference

Power50.9 kWReference

Fuel systemdirect injectionReference

Compression19.3:1Reference

Rated RPM2200Reference

Torque272.6 NmReference

Torque RPM1400Reference

Transmission

15-speed mechanical shuttleReference

20-speed power shuttleReference

TransmissionSpeed FiveReference

Typemechanical shuttleReference

Gears15 forward and reverseReference

Clutch279.4mm mechanical dry discReference

Also available with creeper option providing 30 speeds forward and reverse.Reference

TransmissionPower FiveReference

Typepower shuttleReference

Gears20 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Also available with creeper option providing 40 speeds forward and reverse.Reference

PTO & Hydraulics

PTO (claimed)47.0 kWReference

Pressure179.3 barReference

Valves2Reference

Pump flow52.2 lpmReference

Total flow81.8 lpmReference

Steering flow29.5 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift2585 kgReference

Rear PTOindependentReference

Clutchmechanical dry discReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/750 (1.375)Reference

Rear PTO Type540Reference

Rear PTO Type1000 (1.375)Reference

Dimensions

2WD Wheelbase217 cmReference

4WD Wheelbase213 cmReference

Weight5753 to 6259 poundsReference

Front tire6.00-16Reference

2WD Rear tire380/70R24Reference

2WD Standard tires (ag)Front: 6.00-16. Rear: 380/70R24Reference

4WD Standard tires (ag)Front: 280/70R16. Rear: 380/70R24Reference

Length400 cmReference

Width131 cmReference

Height (steering wheel)144 cmReference

Height (cab)225 cmReference

2WD Weight2609 kgReference

4WD Weight2839 kgReference

Ground clearance38 cmReference

Front tread136 to 146 cmReference

Rear tread86 to 140 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
