Tractor · 2001Unverified

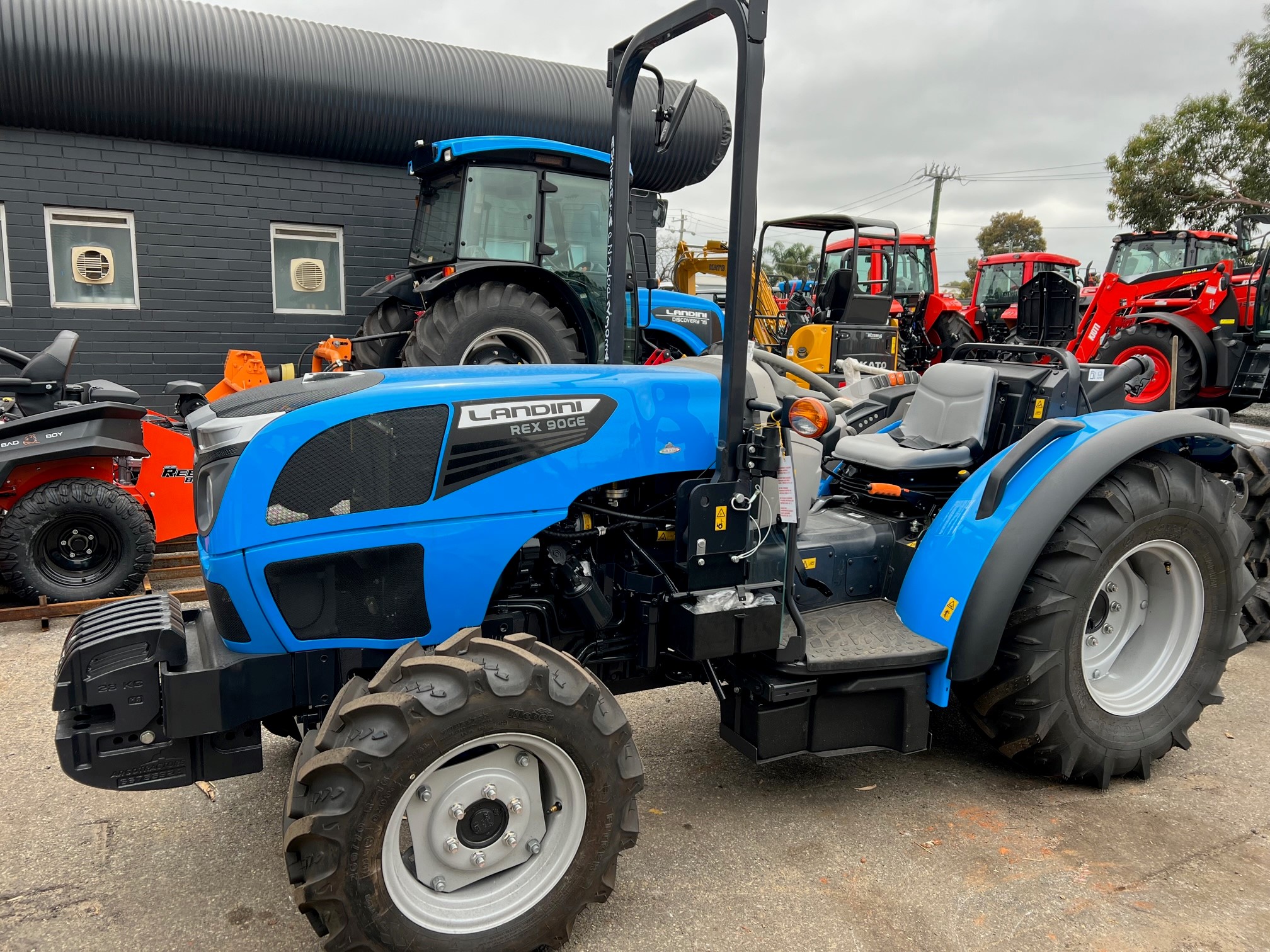

Landini Rex 90

Name: Landini Rex 90
Brand: Landini

Landini Rex 90 — Rex Series · 81 hp. Reference specifications; pending source verification.

The Landini Rex 90 is a tractor with a rated power output of 81 hp, which falls within the mid-range of its class. It was manufactured between the years 2001 and 2005. The tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with a four-wheel drive system and a 12-speed gearbox. Its listed operating weight ranges from 6173 to 6393 pounds, and it is suited for operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

81 hp

Weight

6173 to 6393 pounds

Catalogue coverage

Variants represented

Richest spec table

59 rows

Recorded power

81 hp

Recorded weight

2800 kg

Transmissions

12-speed

Production years

2001-2005

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLandini (a part of Argo)Reference

Orchard/Vineyard tractorReference

Four-wheel driveReference

Final driveselectro-hydraulic front and rearReference

Power steeringReference

Wet disc brakesReference

Two-post foldable mid-mount ROPS. Cab optional.Reference

Variants

Rex 90Fnarrow orchardReference

Rex 90GTwide orchardReference

Engine

Perkins 4.0L 4-cyl dieselReference

F Fuel tank53.0 LReference

GT Fuel tank62.1 LReference

Engine67.9 kWReference

Perkins 1004-40TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke100 x 127 mmReference

Power67.9 kWReference

Fuel systemdirect injectionReference

Compression17.25:1Reference

Rated RPM2200Reference

Torque358.0 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

40-speedReference

Gears12 forward and reverseReference

Clutch304.8mm dry discReference

TransmissionDeltashiftReference

Gears40 forward and 12 reverseReference

Clutchwet discReference

PTO & Hydraulics

PTO (claimed)60.4 kWReference

F Valves2Reference

GT Valves3Reference

Pump flow53.7 lpmReference

Total flow72.7 lpmReference

Total flow84.8 lpmReference

Steering flow18.9 lpmReference

Steering flow30.7 lpmReference

Rear TypeIIReference

Rear lift2600 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/750Reference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase213 cmReference

Weight6173 to 6393 poundsReference

Length357 cmReference

F Width140 cmReference

GT Width156 cmReference

Height (cab)225 cmReference

F Weight2800 kgReference

GT Weight2899 kgReference

Ground clearance38 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
