Tractor · 2006Unverified

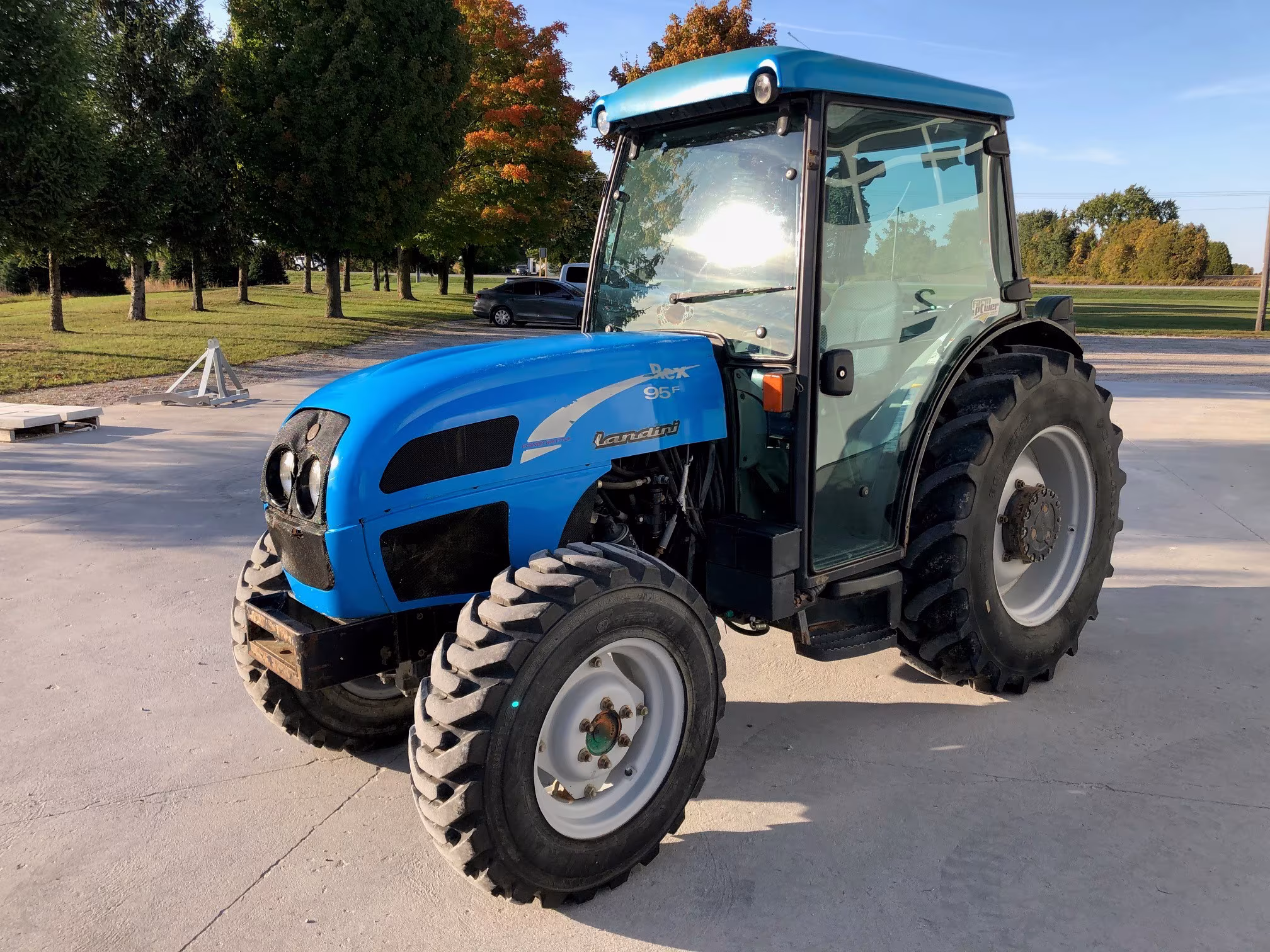

Landini Rex 95
Landini Rex 95 — Rex Series · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Weight
5753 to 6259 pounds
Hover a source tag to verify
Overview
ManufacturerLandini (a part of Argo)Reference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Two-post mid-mount ROPS. Cab optional with available air-conditioning.Reference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank43.1 LReference
Fuel tank68.1 LReference
Engine68.5 kWReference
Perkins 1104C-44TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsStage IIReference
Power68.5 kWReference
Fuel systemdirect injectionReference
Compression18.2:1Reference
Rated RPM2200Reference
Torque379.7 NmReference
Torque RPM1400Reference
Transmission
15-speed mechanical shuttleReference
20-speed power shuttleReference
TransmissionSpeed FiveReference
Typemechanical shuttleReference
Gears15 forward and reverseReference
Clutch304.8mm mechanical dry discReference
Also available with creeper option providing 30 speeds forward and reverse.Reference
TransmissionPower FiveReference
Typepower shuttleReference
Gears20 forward and reverseReference
Clutchelectro-hydraulic wet discReference
Also available with creeper option providing 40 speeds forward and reverse.Reference
PTO & Hydraulics
PTO (claimed)63.4 kWReference
Pressure179.3 barReference
Valves2Reference
Pump flow52.2 lpmReference
Total flow81.8 lpmReference
Steering flow29.5 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2585 kgReference
Rear PTOindependentReference
Clutchmechanical dry discReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/750 (1.375)Reference
Rear PTO Type540Reference
Rear PTO Type1000 (1.375)Reference
Dimensions
2WD Wheelbase217 cmReference
4WD Wheelbase213 cmReference
Weight5753 to 6259 poundsReference
Front tire7.50-16Reference
2WD Rear tire13.6R28Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 13.6R28Reference
4WD Standard tires (ag)Front: 280/70R16. Rear: 380/70R24Reference
Length400 cmReference
Width131 cmReference
Height (steering wheel)144 cmReference
Height (cab)225 cmReference
2WD Weight2609 kgReference
4WD Weight2839 kgReference
Ground clearance38 cmReference
Front tread136 to 146 cmReference
Rear tread86 to 140 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
