Tractor · 2003Unverified

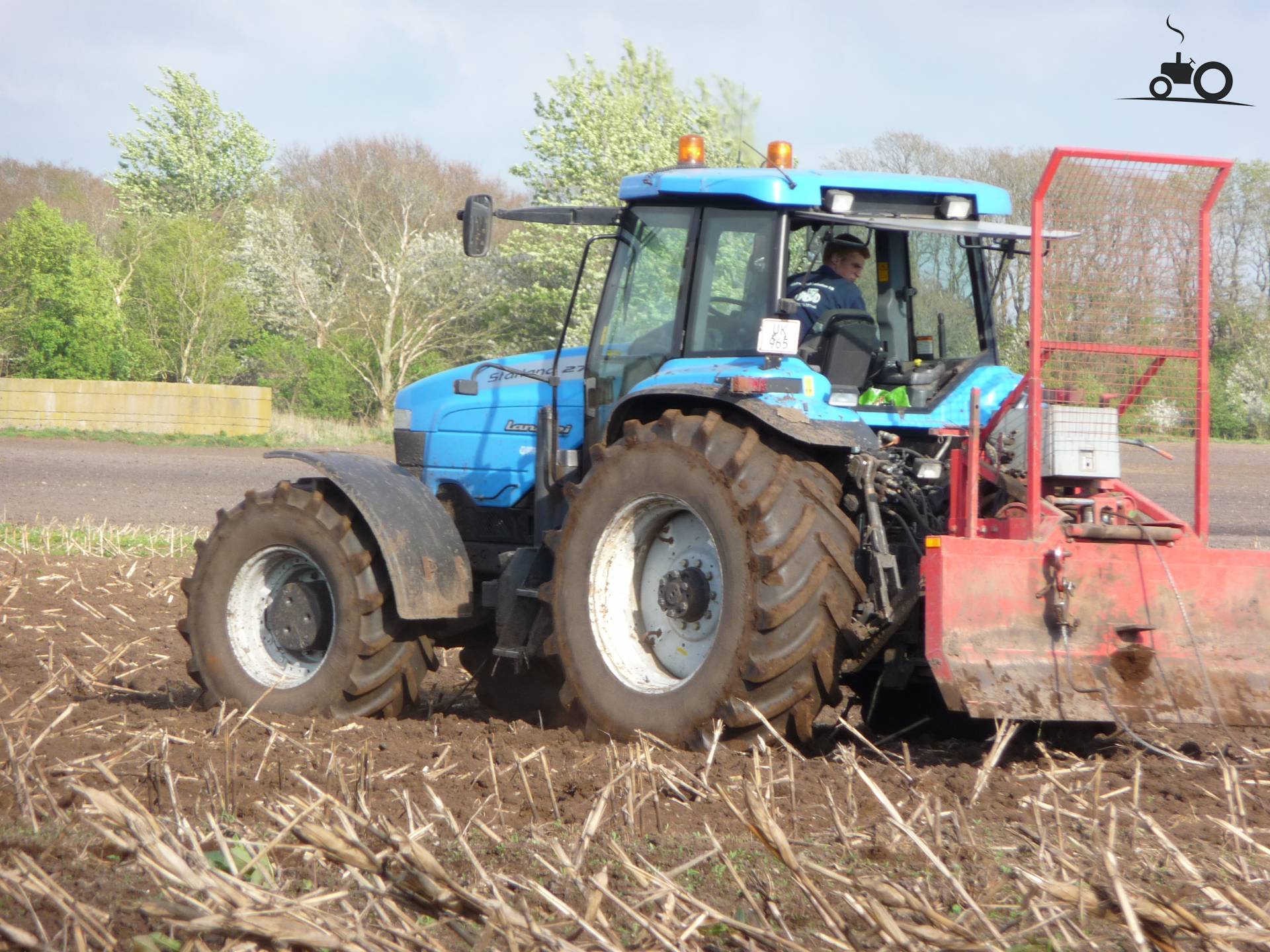

Landini Starland 270
Landini Starland 270 — Starland Series · 270 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
270 hp
Weight
19440 to 19820 pounds
Hover a source tag to verify
Overview
DistributorLandini (a part of Argo)Reference
ManufacturerBuhler VersatileReference
Row-Crop tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning.Reference
Variants
2210similar Buhler Versatile modelReference
Engine
New Holland 7.5L 6-cyl dieselReference
Fuel tank416.4 LReference
Engine201.3 kWReference
New HollandReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.5 LReference
Bore/Stroke112 x 127 mmReference
Power201.3 kWReference
Rated RPM2100Reference
Torque1190.6 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
18-speed full power shiftReference
36-speed creeperReference
TransmissionFunkReference
Typefull power shiftReference
Gears18 forward and 9 reverseReference
TypecreeperReference
Gears36 forward and 18 reverseReference
PTO & Hydraulics
Typeclosed center load-sensingReference
Valves4Reference
Pump flow117.0 lpmReference
Rear TypeIIIReference
Rear lift8870 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase299 cmReference
Twin Steer Wheelbase311 cmReference
Weight19440 to 19820 poundsReference
Front tire600/65R28Reference
Rear tire710/70R38Reference
Standard tires (ag)Front: 600/65R28. Rear: 710/70R38Reference
Length528 cmReference
Width224 cmReference
Height (cab)307 cmReference
Weight8817 kgReference
Twin Steer Weight8990 kgReference
Ground clearance50 cmReference
Front tread152 to 223 cmReference
Rear tread152 to 263 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
