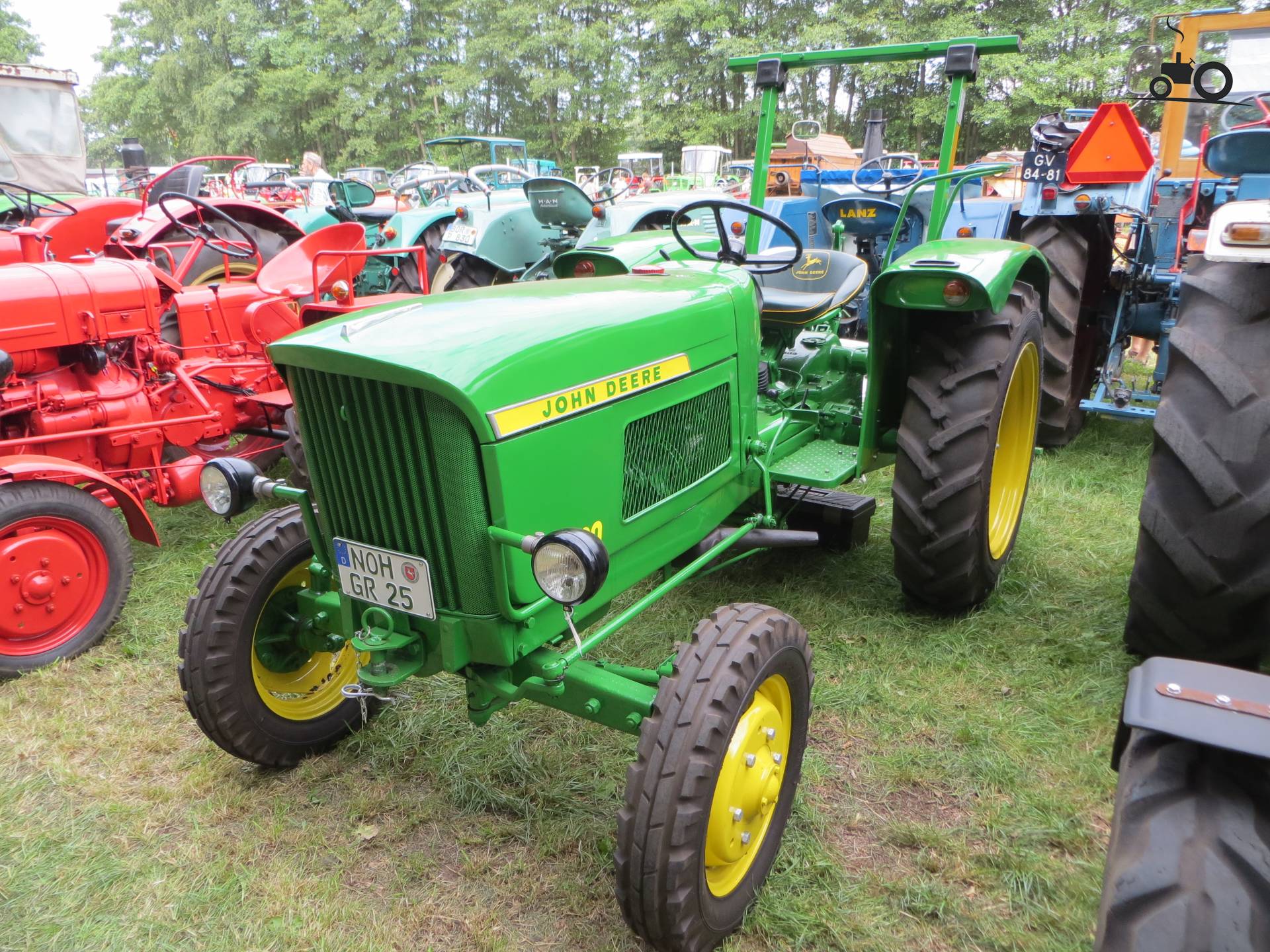

The Lanz 200 is a compact tractor with a 25 hp rating, making it suitable for smaller-scale operations. Manufactured between 1966 and 1968, it features a 2-cylinder diesel liquid-cooled engine powering two-wheel drive through a 6-speed gearbox. The listed weight of the Lanz 200 is 1476 kg, and it is designed for use on plots of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1476 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
25 hp
Recorded weight
1476 kg
Transmissions
6-speed gear
Production years
1966-1968
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLanz (a part of John Deere)Reference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two-wheel driveReference
Manual steeringReference
Disc brakesReference
Open operator station.Reference
Engine
John Deere 1.4L 2-cyl dieselReference
Engine18.6 kWReference
John DeereReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke98 x 89 mmReference
Power18.6 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity5.0 LReference
Coolant capacity6.2 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540/1000Reference
Dimensions
Wheelbase193 cmReference
Weight1476 kgReference
Front tire5.50-16Reference
Rear tire10-28Reference
Ag front5.50-16Reference
Ag rear10-28Reference
Length311 cmReference
Width152 cmReference
Height (steering wheel)143 cmReference
Height (hood)124 cmReference
Ground clearance39 cmReference
Front tread124 to 149 cmReference
Rear tread121 to 172 cmReference
200 Serial Number Location
Serial number plate on the right side of the 200 frame, above the front axle.Reference
