Tractor · 1960Unverified

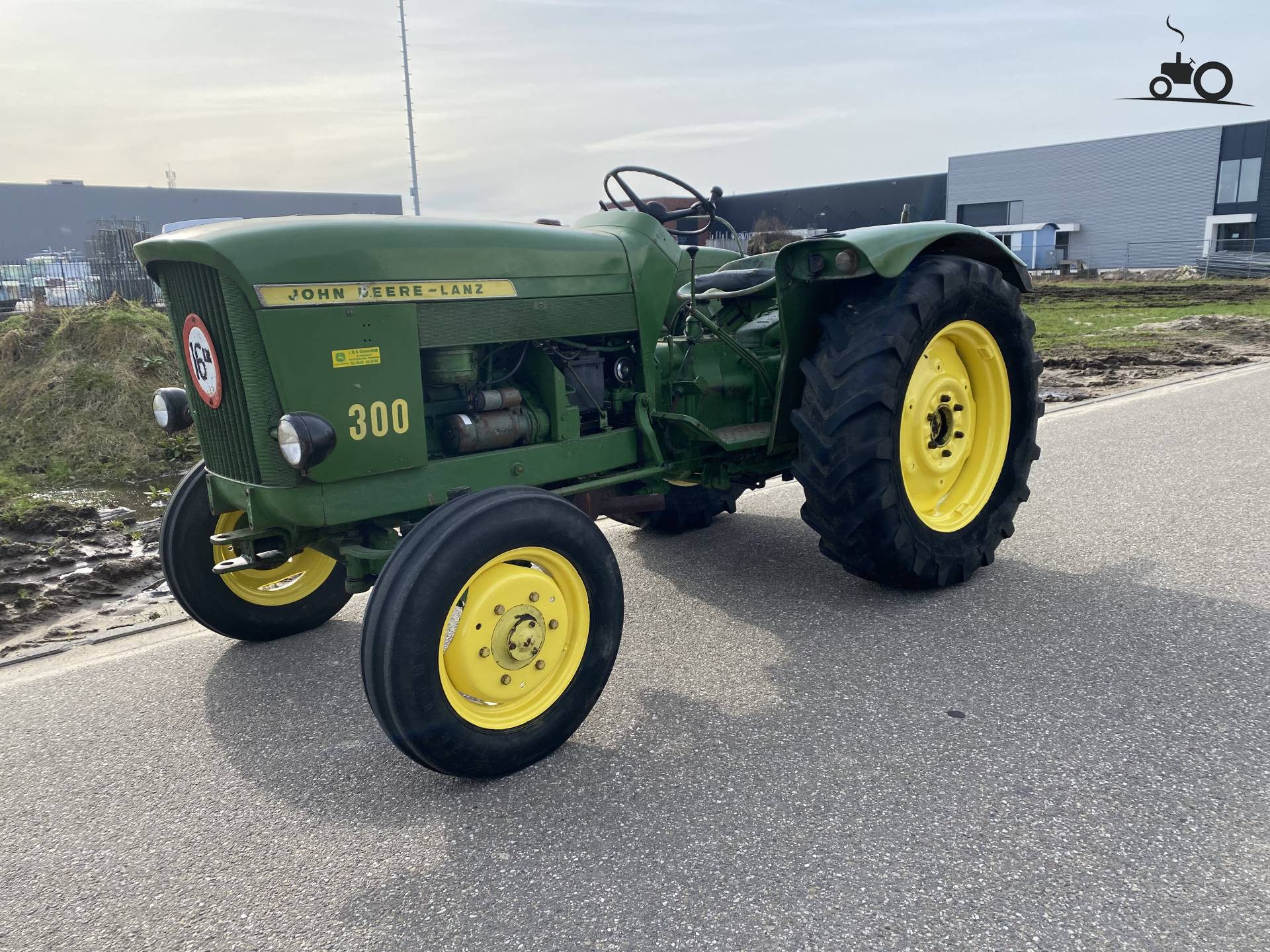

Lanz 300
Lanz 300 — 0 Series · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
1832 kg
Hover a source tag to verify
Overview
ManufacturerLanz (a part of John Deere)Reference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Disc brakesReference
Open operator station.Reference
Engine
John Deere 2.4L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine20.6 kWReference
John DeereReference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
The Deere-Lanz 300 used the same diesel engine as the Deere 1010Reference
Displacement2.4 LReference
Bore/Stroke92 x 89 mmReference
Power20.6 kWReference
Power22.1 kWReference
Compression17.5:1Reference
Rated RPM2000 (early)Reference
Rated RPM2100 (late)Reference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 3 reverseReference
Three gears in three ranges, plus reverse range, with an overdrive gear.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow7.2 lpmReference
Rear TypeII/IReference
Rear PTO Type540/1000 (1.375)Reference
Mid PTOstandardReference
Mid PTO Type1000Reference
Dimensions
Wheelbase195 cmReference
Weight1832 kgReference
Front tire6.00-16Reference
Rear tire10-18Reference
Ag front6.00-16Reference
Ag rear10-18Reference
Ag rear11-28Reference
Ag rear9-32Reference
Length339 cmReference
Height152 cmReference
Shipping weight1832 kgReference
Ground clearance39 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
