Tractor · 1962Unverified

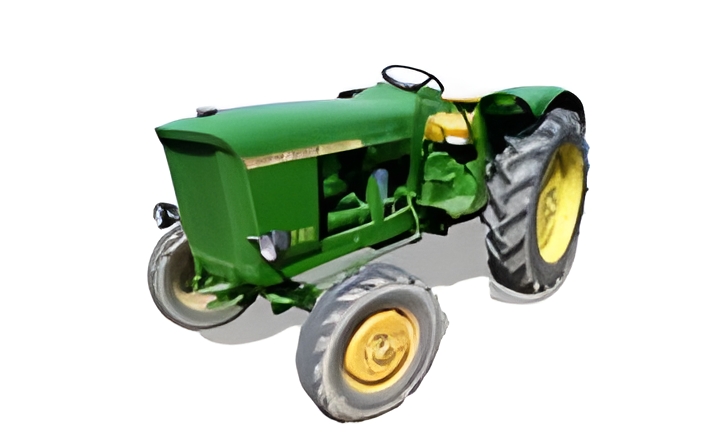

Lanz 700
Lanz 700 — 0 Series · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Weight
2165 kg
Hover a source tag to verify
Overview
ManufacturerLanz (a part of John Deere)Reference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two-wheel driveReference
Manual steeringReference
Disc brakesReference
Open operator station.Reference
Engine
John Deere 2.7L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine39.5 kWReference
John DeereReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke98 x 89 mmReference
Power39.5 kWReference
Rated RPM2400Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity5.5 LReference
Coolant capacity11.5 LReference
Transmission
10-speed constant meshReference
Typeconstant meshReference
Gears10 forward and 3 reverseReference
Oil capacity31.0 LReference
Four gears (1-4) in three ranges (I, II, III) plus reverse range. Speeds in fourth gear are the same across all three forward ranges.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure151.7 barReference
Pump flow15.9 lpmReference
Rear TypeIIReference
Rear lift800 kgReference
Rear PTO Type540/1000Reference
Engine RPM540@2250Reference
Engine RPM1000@2380Reference
Mid PTOstandardReference
Mid PTO Type1000Reference
Dimensions
Wheelbase195 cmReference
Weight2165 kgReference
Front tire6.00-16Reference
Rear tire11-32Reference
Ag front6.00-16Reference
Ag rear11-32Reference
Ag rear9-32Reference
Ag rear11-28Reference
Ag rear9-36Reference
Ag rear13-28Reference
Length339 cmReference
Width165 cmReference
Height (steering wheel)159 cmReference
Height (hood)139 cmReference
Shipping weight2165 kgReference
Front tread124 to 184 cmReference
Rear tread135 to 150 cmReference
Lanz 700 attachments
front-end loaderReference
700 Serial Number Location
Serial number plate on the right side of the tractor frame, above the front axle.Reference
Speeds
With 11-32 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
