Tractor · 1958Unverified
Lanz Bulldog D1206
Lanz Bulldog D1206 · 12 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
12 hp
Weight
770 kg
Hover a source tag to verify
Overview
ManufacturerLanzReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Lanz 0.5L 1-cyl dieselReference
Engine8.9 kWReference
LanzReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement0.5 LReference
Bore/Stroke85 x 94 mmReference
Power8.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference

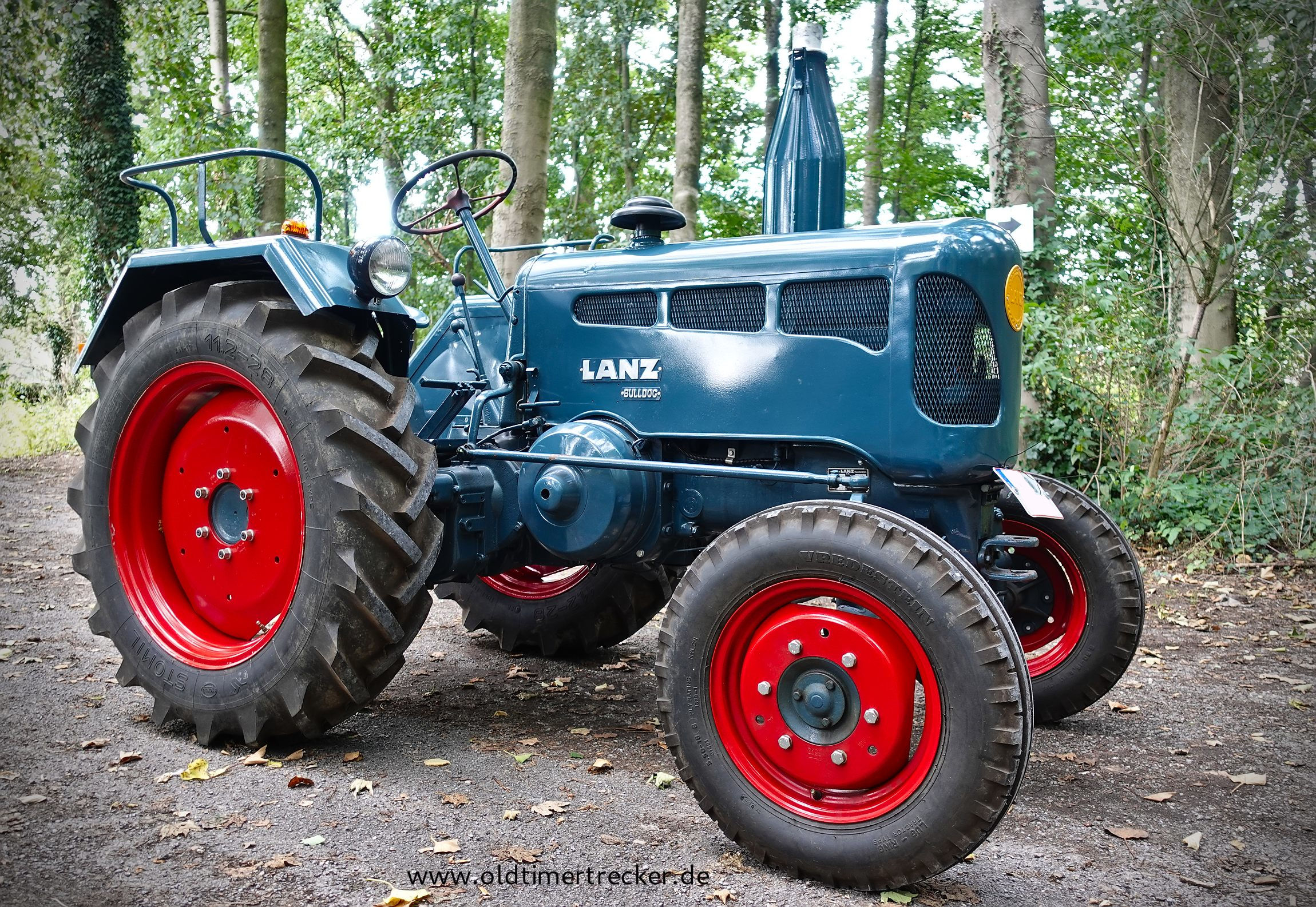

Image courtesy of Harrie SlootReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase160 cmReference
Weight770 kgReference
Front tire4-15Reference
Rear tire6-24Reference
Ag front4-15Reference
Ag rear6-24Reference
Ag rear7-24Reference
Ag rear8-24Reference
Length244 cmReference
Width145 cmReference
Height (steering wheel)138 cmReference
Ground clearance31 cmReference
Rear tread124 to 150 cmReference
Speeds
With 6-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
