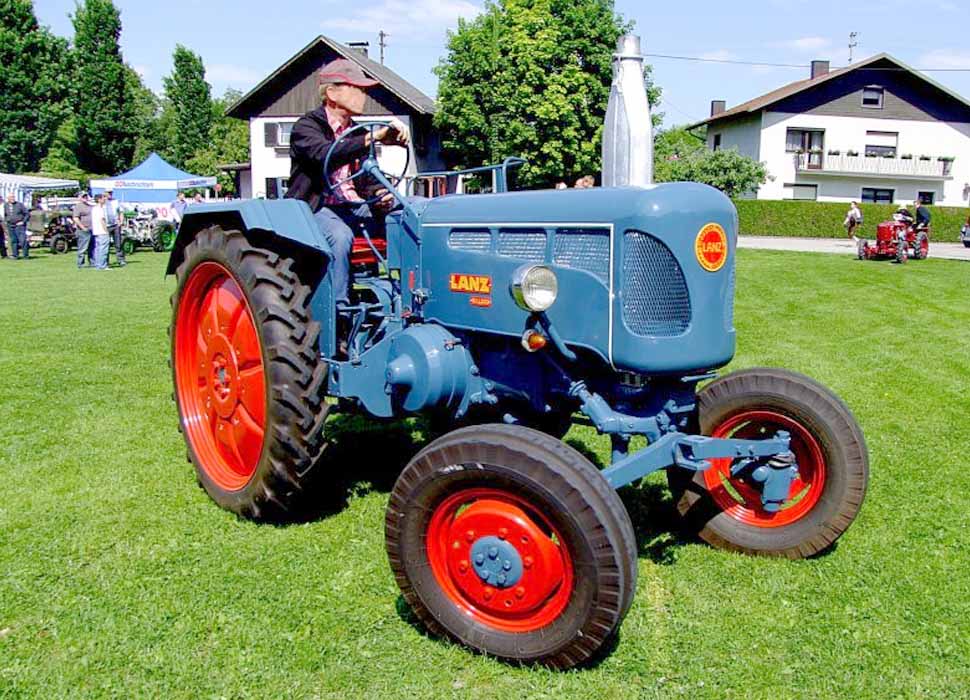

The Lanz Bulldog D2816 is a tractor with a rated power output of 28 hp, which positions it within the lighter weight category. It was manufactured from 1955 to 1960. The tractor is equipped with a 1-cylinder diesel liquid-cooled engine, paired with a 6-speed gearbox and two-wheel drive. Its operating weight is listed as 1460 kg, suitable for managing up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
1460 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
28 hp
Recorded weight
1460 kg
Transmissions
6-speed gear
Production years
1955-1960
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLanzReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Lanz 2.6L 1-cyl dieselReference
Engine20.9 kWReference
LanzReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke140 x 170 mmReference
Power20.9 kWReference
Rated RPM1100Reference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase177 cmReference
Weight1460 kgReference
Front tire5.50-16Reference
Rear tire8-36Reference
Ag front5.50-16Reference
Ag rear8-36Reference
Ag rear11-28Reference
Length279 cmReference
Width166 cmReference
Height233 cmReference
Ground clearance43 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
