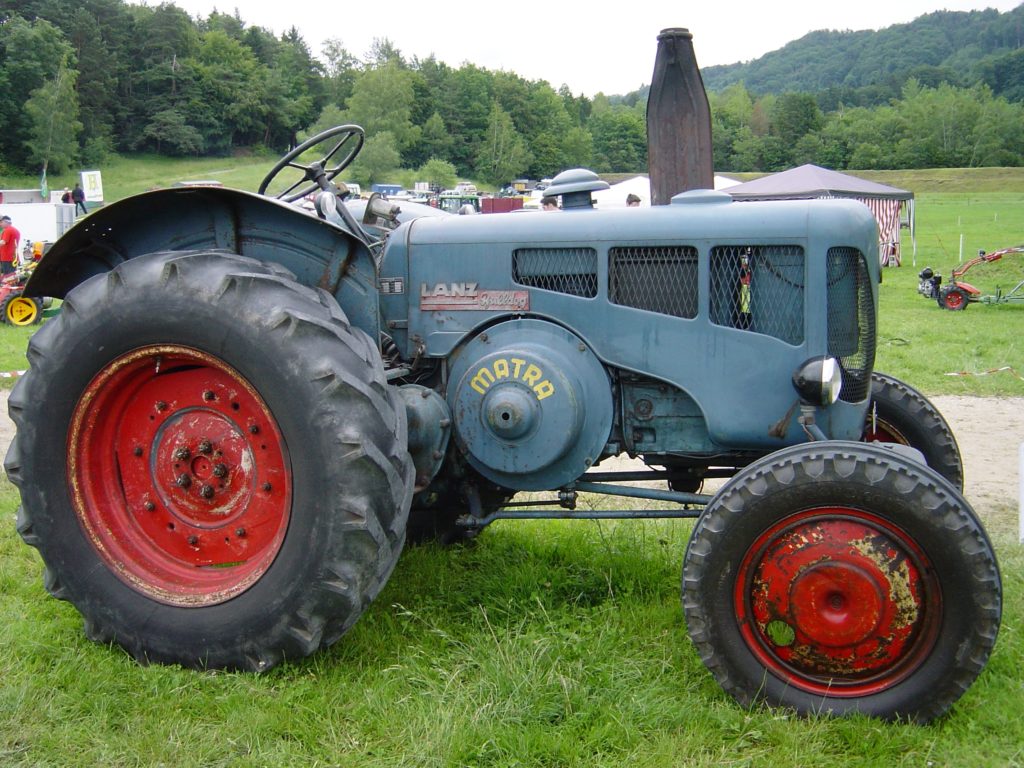

The Lanz Bulldog D4016 is a tractor with a rated output of 40 hp — making it one of the more compact options in its class. The Bulldog D4016 was produced from 1957 to 1960. It is powered by a 1-cylinder diesel liquid-cooled engine, driving through two-wheel drive with a 6-speed gearbox. Listed weight is 2649 kg, and it is aimed at jobs of around up to 200 ac. Recorded specifications in UK and US units are listed below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
2649 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
40 hp
Recorded weight
2649 kg
Transmissions
6-speed gear
Production years
1957-1960
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLanzReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two-wheel driveReference
Open operator station.Reference
Engine
Lanz 4.2L 1-cyl dieselReference
Engine29.8 kWReference
LanzReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke160 x 210 mmReference
Power29.8 kWReference
Rated RPM1000Reference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase195 cmReference
Weight2649 kgReference
Front tire6.00-20Reference
Rear tire11-38Reference
Ag front6.00-20Reference
Ag rear11-38Reference
Ag rear13-30Reference
Length315 cmReference
Width172 cmReference
Height208 cmReference
Ground clearance41 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
