Tractor · 1935Unverified

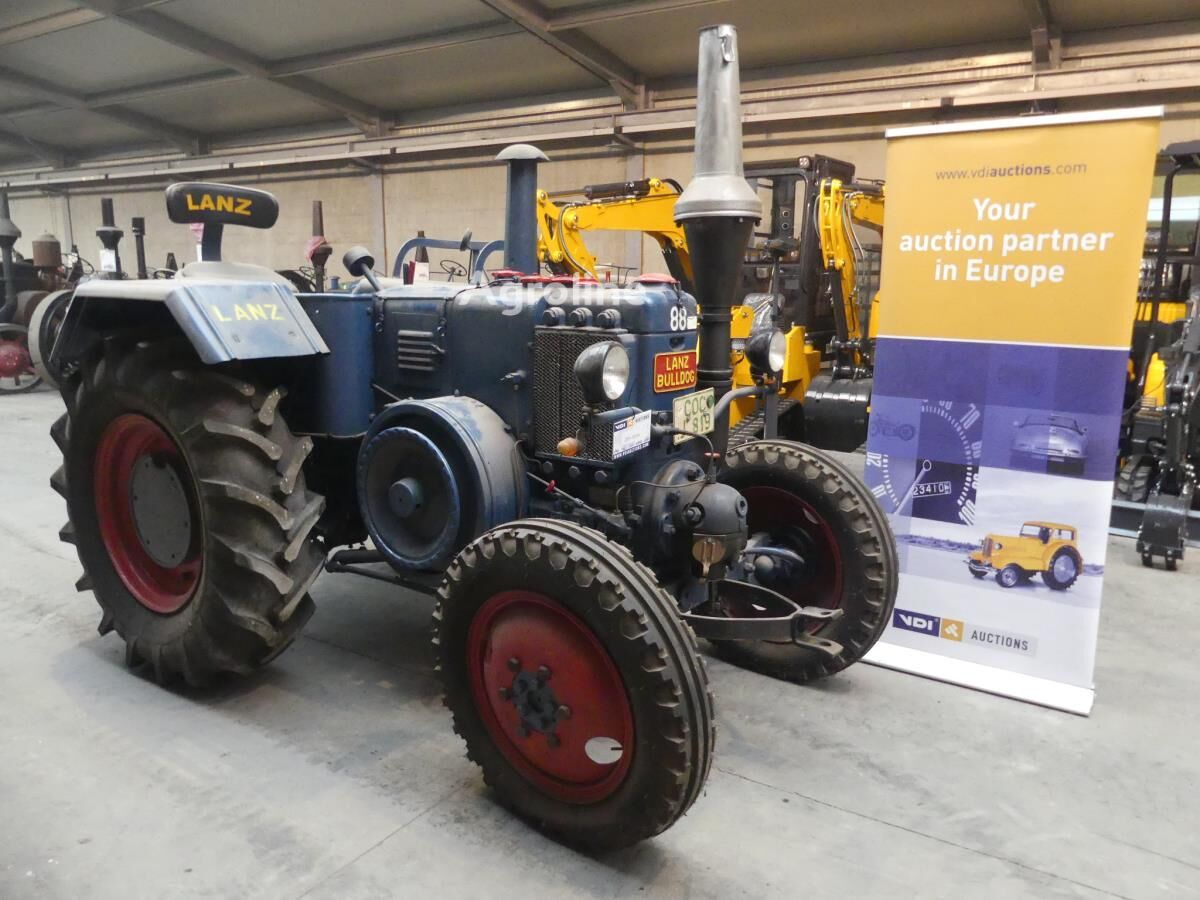

Lanz Bulldog D7507
Lanz Bulldog D7507 — D75 Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Hover a source tag to verify
Overview
ManufacturerLanzReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Drive2WDReference
Variants
D75003-speedReference
D75066-speedReference
D75076-speed, with starterReference
D7511combination for both field and road operations, front-axle springsReference
7521traffic model for road operationsReference
7531express model with high-speed gearingReference
Engine
Lanz 4.7L 1-cyl dieselReference
Engine18.3 kWReference
LanzReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement4.7 LReference
Bore/Stroke170 x 210 mmReference
Power18.3 kWReference
Rated RPM850Reference
Transmission
6-speedReference
TransmissiongearReference
Gears6 forwardReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
