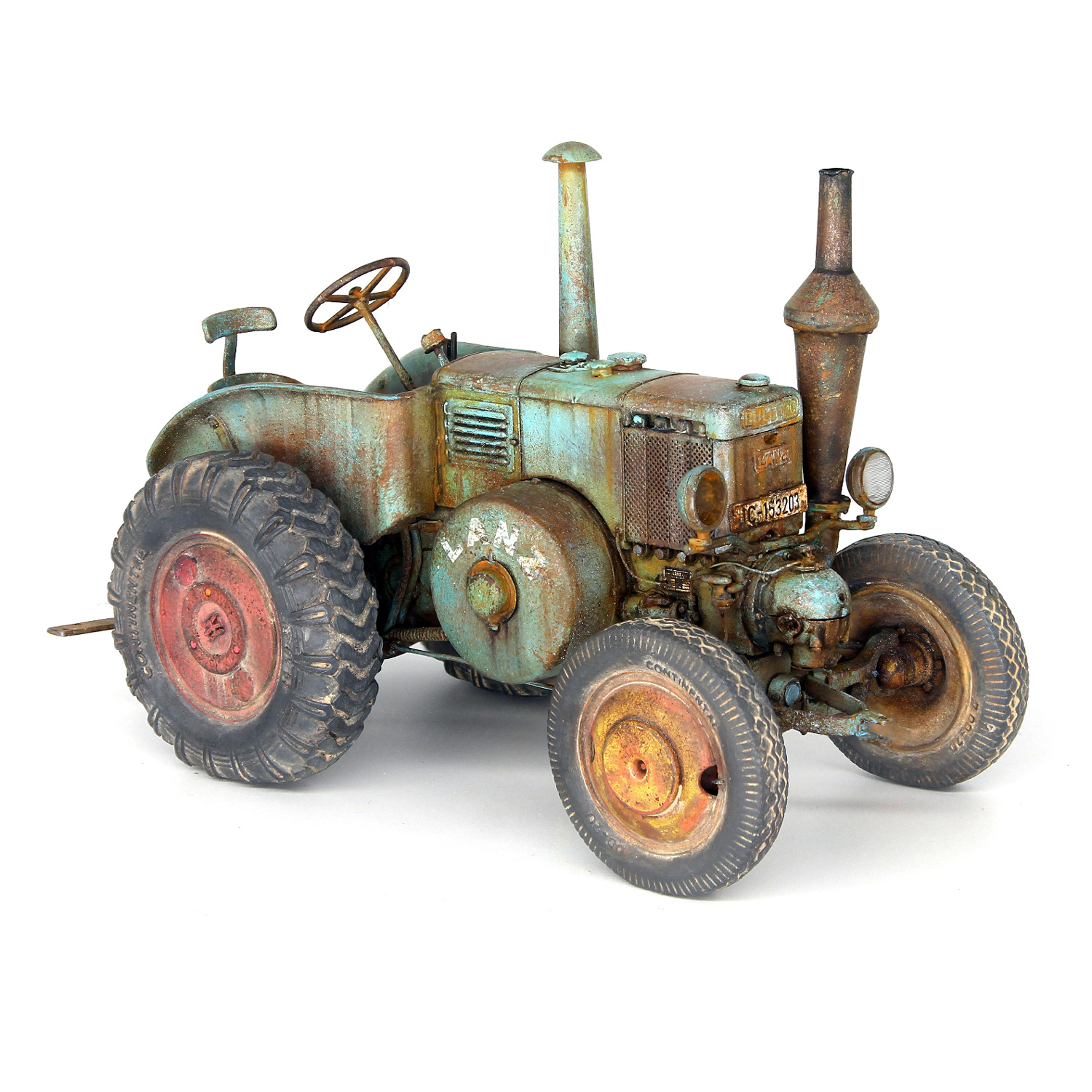

The Lanz Bulldog D8500 is a compact tractor rated at 34 hp, classified within its category. It was produced from 1935 to 1955. The tractor is equipped with a 1-cylinder diesel liquid-cooled engine, connected to a two-wheel drive system with a 3-speed gearbox. The Bulldog D8500 is suitable for tasks on land covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Catalogue coverage
Variants represented
2
Richest spec table
21 rows
Recorded power
34 hp
Transmissions
3-speed
Production years
1935-1955
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLanzReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Drive2WDReference
Variants
D85003-speedReference
D85066-speedReference
D8511combination model for road and field use, front-axle springsReference
D8531high-speed road modelReference
D8539high-speed road model with solid cabReference
Engine
Lanz 10.3L 1-cyl dieselReference
Engine25.6 kWReference
LanzReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement10.3 LReference
Bore/Stroke225 x 260 mmReference
Power25.6 kWReference
Rated RPM540Reference
Transmission
3-speedReference
TransmissiongearReference
Gears3 forward and 1 reverseReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
