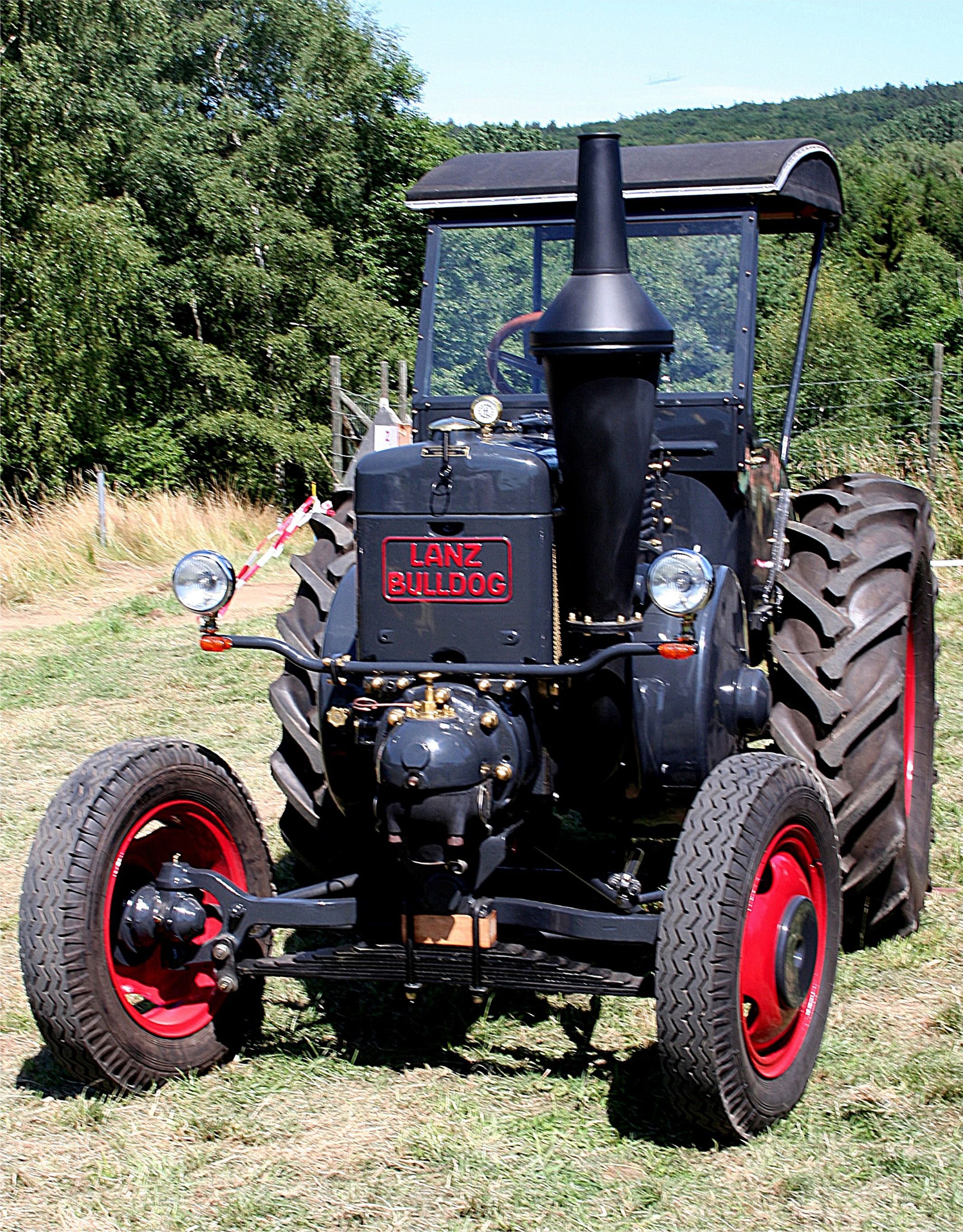

The Lanz Bulldog D9500 is a 44 hp tractor model, one of the more compact options in its class. It was manufactured from 1935 to 1955 and features a 1-cylinder diesel liquid-cooled engine. The tractor is equipped with a 3-speed gearbox and two-wheel drive, with a listed weight of 3299 kg. It is suitable for working on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
44 hp
Weight
3299 kg
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
44 hp
Recorded weight
3299 kg
Transmissions
3-speed gear
Production years
1935-1955
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLanzReference
Standard-tread tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two-wheel driveReference
Open operator station.Reference
Variants
D95003-speedReference
D95066-speedReference
D9511combination model for road and field use, front-axle springsReference
D9531high-speed road modelReference
D9539high-speed road model with solid cabReference
Engine
Lanz 10.3L 1-cyl dieselReference
Fuel tank99.9 LReference
Engine32.9 kWReference
LanzReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement10.3 LReference
Bore/Stroke225 x 260 mmReference
Power32.9 kWReference
Rated RPM630Reference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Dimensions
Wheelbase203 cmReference
Weight3299 kgReference
Length343 cmReference
Width182 cmReference
Height231 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
