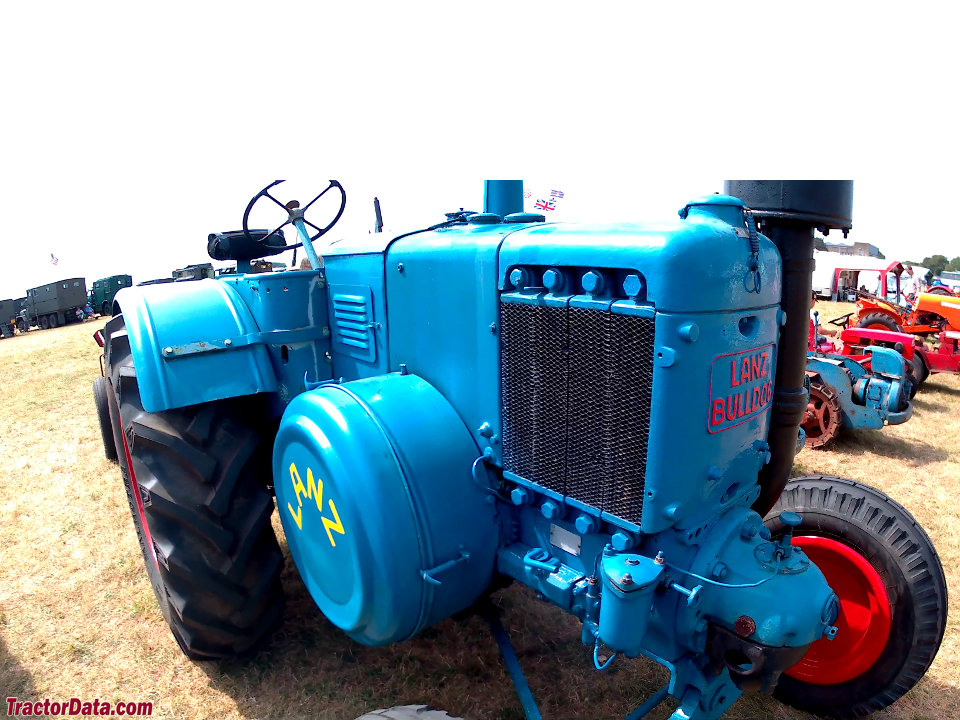

The Lanz Bulldog D9506 is a tractor with a rated power of 44 hp, which positions it at the lighter end of its class. Built from 1935 to 1955, it features a 1-cylinder diesel liquid-cooled engine paired with two-wheel drive and a 3-speed gearbox. The tractor's operating weight is listed at 3650 kg, and it is suitable for operations of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
44 hp
Weight
3650 kg
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Recorded power
44 hp
Recorded weight
3650 kg
Transmissions
6-speed gear
Production years
1935-1955
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLanzReference
Standard-tread tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two-wheel driveReference
Open operator station.Reference
Variants
D9507no lightsReference
D95003-speedReference
D95066-speedReference
D9511combination model for road and field use, front-axle springsReference
D9531high-speed road modelReference
D9539high-speed road model with solid cabReference
Engine
Lanz 10.3L 1-cyl dieselReference
Fuel tank90.1 LReference
Engine32.9 kWReference
LanzReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement10.3 LReference
Bore/Stroke225 x 260 mmReference
Power32.9 kWReference
Rated RPM630Reference
Oil capacity6.5 LReference
Coolant capacity50.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Dimensions
Wheelbase203 cmReference
Weight3650 kgReference
Front tire7.00-20Reference
Rear tire12.75-28Reference
Ag front7.00-20Reference
Ag rear12.75-28Reference
Length345 cmReference
Width177 cmReference
Height218 cmReference
Ground clearance25 cmReference
Front tread137 cmReference
Rear tread145 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
