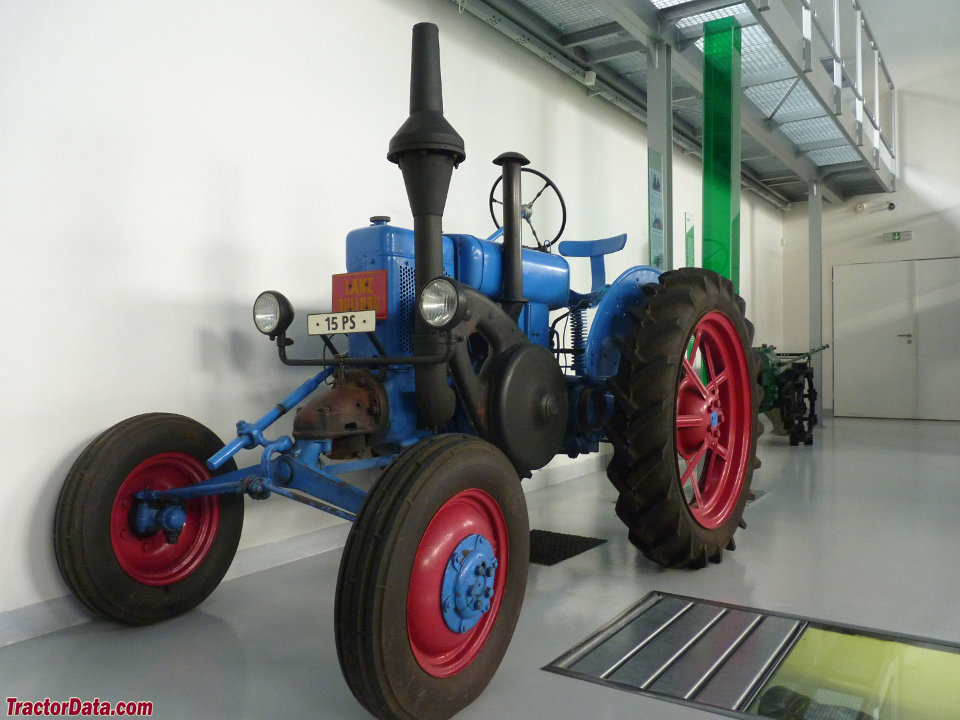

The Lanz D4506 Bauern Bulldog is a compact tractor with a rated output of 15 hp. It was manufactured from 1936 to 1942. The tractor features a 1-cylinder diesel liquid-cooled engine, paired with a 6-speed gearbox and two-wheel drive. Its listed weight is 1200 kg, suitable for tasks on land areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1200 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
15 hp
Recorded weight
1200 kg
Transmissions
6-speed gear
Production years
1936-1942
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLanzReference
Standard-tread tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Total built276Reference
Bauern Bulldog translates to Farmer's Bulldog. This model was designed for the small-scale farmer.Reference
Two-wheel driveReference
Open operator station.Reference
Engine
Lanz 2.8L 1-cyl dieselReference
Fuel tank45.0 LReference
Aux. fuel3.8 LReference
Engine11.0 kWReference
LanzReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement2.8 LReference
Bore/Stroke145 x 170 mmReference
Power11.0 kWReference
Rated RPM900Reference
Oil capacity4.0 LReference
Coolant capacity28.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase167 cmReference
Weight1200 kgReference
Front tire4.50-16Reference
Rear tire6.50-32Reference
Ag front4.50-16Reference
Ag rear6.50-32Reference
Length260 cmReference
Width138 cmReference
Height187 cmReference
Clearance (front axle)36 cmReference
Clearance (rear axle)44 cmReference
Front tread119 to 0 cmReference
Rear tread150 to 0 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
