Tractor · 1923Unverified

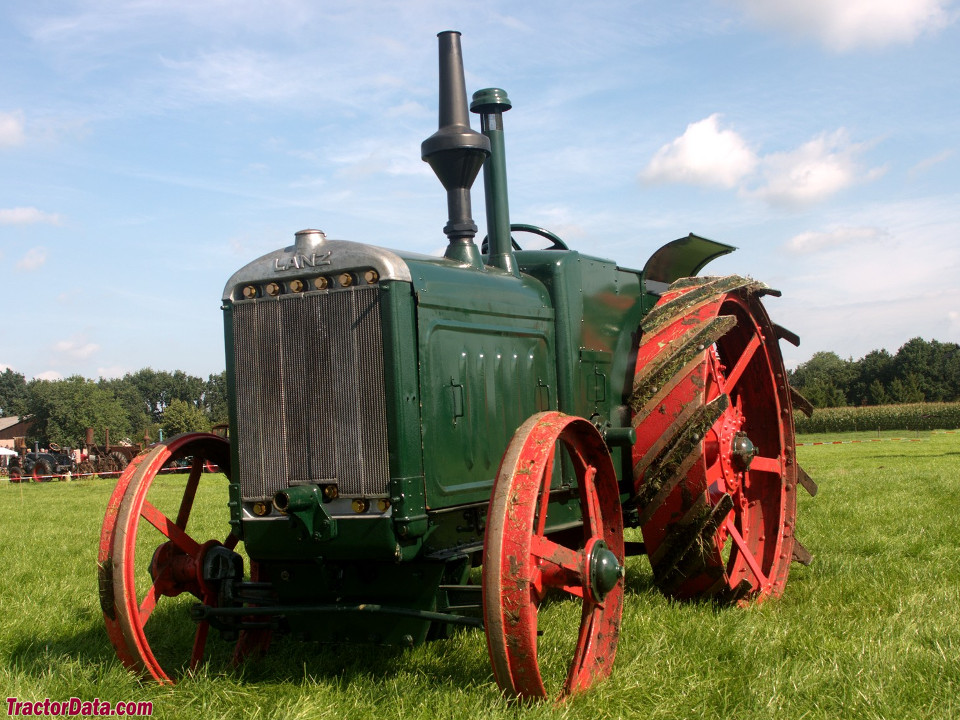

Lanz FHD Felddank
Lanz FHD Felddank · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
4200 kg
Hover a source tag to verify
Overview
ManufacturerLanzReference
Two-wheel driveReference
SteeringmanualReference
Mechanical band brakesReference
Open operator station.Reference
Engine
Lanz 12.5L 2-cyl keroseneReference
Engine28.3 kWReference
LanzReference
keroseneReference
2-cylinderReference
liquid-cooledReference
Displacement12.5 LReference
Bore/Stroke190 x 220 mmReference
Power28.3 kWReference
Rated RPM650Reference
Starter typehot bulbReference
Transmission
3-speed unsynchronized gearReference
TransmissionLanzReference
Typeunsynchronized gearReference
Gears3 forward and 1 reverseReference
Dimensions
Weight4200 kgReference
Front tire39.4x6.3Reference
Rear tire63x11.8Reference
Ag front39.4x6.3 steelReference
Ag rear63x11.8 steelReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
