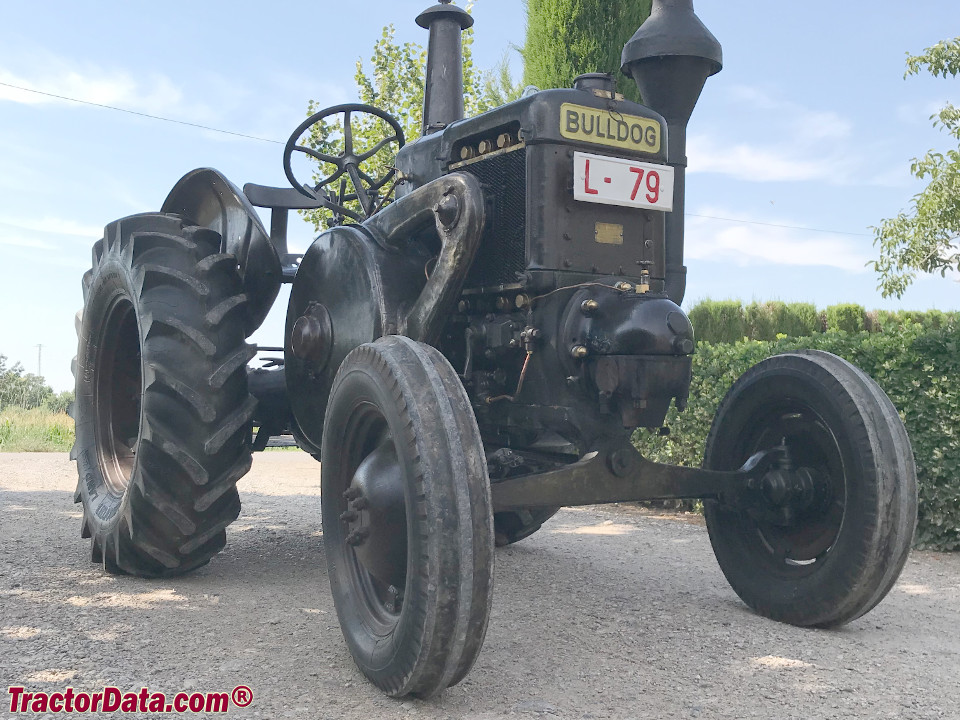

The Lanz HR5 15-30 is a compact tractor with a rated output of 30 hp, produced from 1929 to 1935. It features a 1-cylinder liquid-cooled engine, coupled with a 3-speed gearbox and two-wheel drive. The tractor's listed weight is 2580 kg, and it is designed for use on areas of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
2580 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
30 hp
Recorded weight
2580 kg
Transmissions
3-speed gear
Production years
1929-1935
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLanzReference
Standard-tread tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Lanz 10.3L 1-cyl oilReference
Fuel tank60.2 LReference
Engine22.4 kWReference
LanzReference
oilReference
1-cylinderReference
liquid-cooledReference
Displacement10.3 LReference
Bore/Stroke225 x 260 mmReference
Power22.4 kWReference
Rated RPM540Reference
Oil capacity8.5 LReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Dimensions
Wheelbase186 cmReference
Weight2580 kgReference
Front tire900x150Reference
Rear tire1150x300Reference
Ag front900x150Reference
Ag rear1150x300Reference
Length320 cmReference
Width194 cmReference
Height224 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
