Tractor · 1916Unverified
Leader 9-15

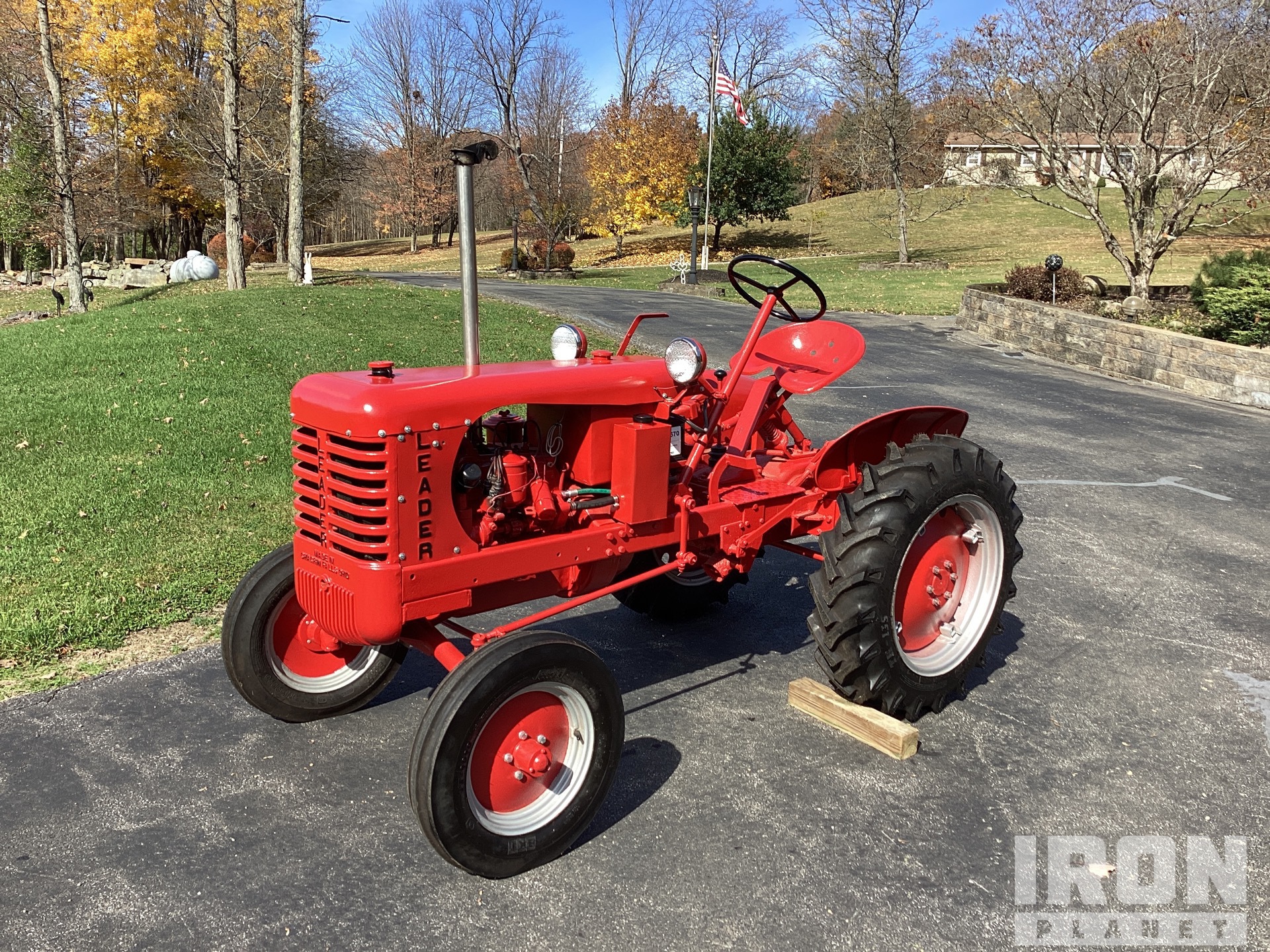

Leader 9-15 — Standard-tread tractor · 9 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
9 hp
Weight
1723 kg
Hover a source tag to verify
Overview
ManufacturerLeader (a part of Dayton-Dick)Reference
Standard-tread tractorReference
Built in Quincy, Illinois, USAReference
Original price was $525 in 1916Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
keroseneReference
Fuel tank68.1 LReference
Drawbar (claimed)6.7 kWReference
Belt (claimed)11.2 kWReference
liquid-cooledReference
Bore/Stroke146 x 152 mmReference
Fuel systemKingston-Bennett carburetorReference
Rated RPM750Reference
Starter typehand crankReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Dimensions
Weight1723 kgReference
Rear tire48x12Reference
Ag rear48x12 (steel)Reference
Height152 cmReference
Capacities
Diameter35 cmReference
Width17 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
