Tractor · 1999Unverified

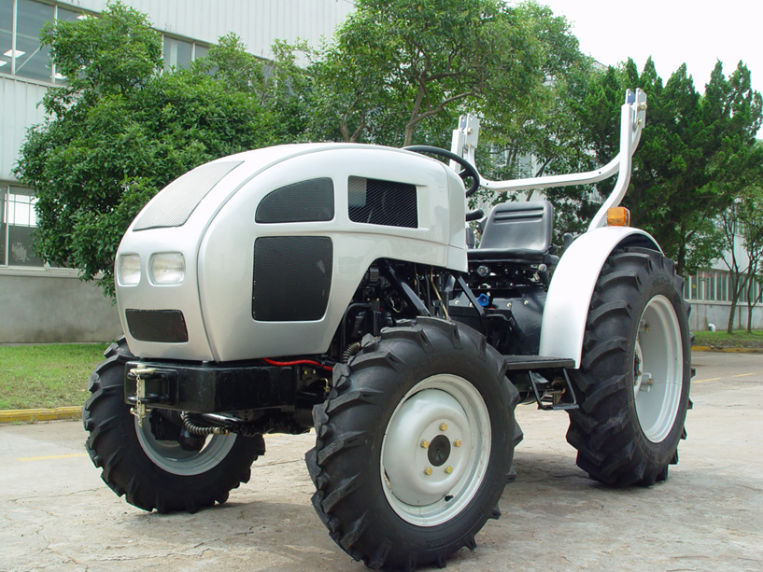

Lenar FS180
Lenar FS180 — Compact Utility tractor · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Hover a source tag to verify
Overview
DistributorLenarReference
ManufacturerJianglingReference
Compact Utility tractorReference
Built in Nanchang, Jiangxi, ChinaReference
Two-wheel driveReference
Open operator station.Reference
Variants
FS1802WDReference
FS1844WDReference
Engine
Jiangxi 1.2L 2-cyl dieselReference
Engine13.4 kWReference
Jiangxi J285TReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Bore/Stroke85 x 102 mmReference
Power13.4 kWReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Dimensions
Wheelbase139 cmReference
Front tire4.00-14Reference
Rear tire8.3-20Reference
Ag front4.00-14Reference
Ag rear8.3-20Reference
Length275 cmReference
Width115 cmReference
Height134 cmReference
Ground clearance29 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
