Tractor · 2003Unverified

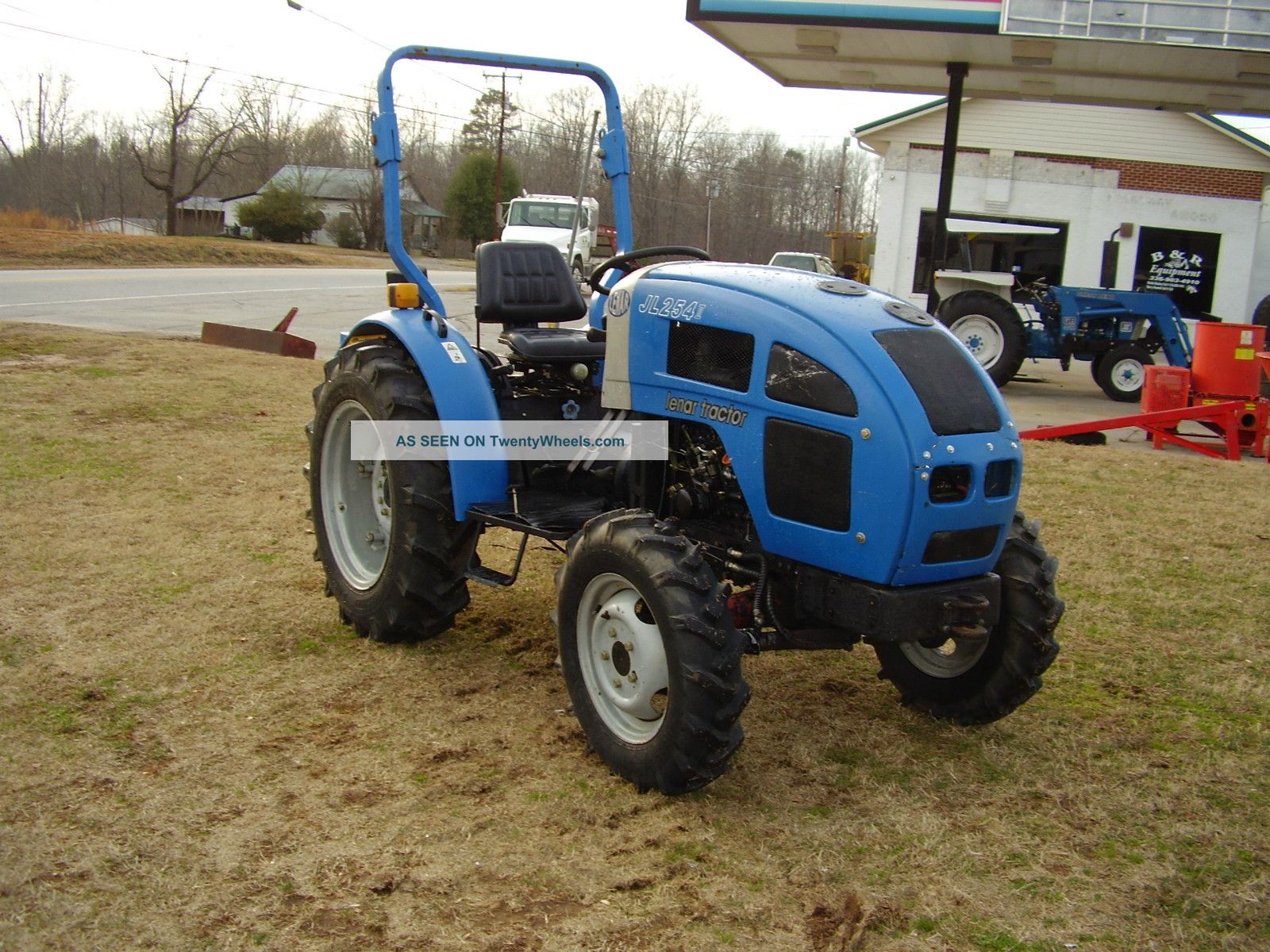

Lenar JL254
Lenar JL254 — Compact Utility tractor · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1539 kg
Hover a source tag to verify
Overview
DistributorLenarReference
ManufacturerJianglingReference
Compact Utility tractorReference
Built in Nanchang, Jiangxi, ChinaReference
Four-wheel driveReference
Power steeringReference
Two-post folding ROPS.Reference
Engine
Jiangxi 1.6L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine18.6 kWReference
Jiangxi NJ358BReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke85 x 95 mmReference
Power18.6 kWReference
Compression22:1Reference
Rated RPM2500Reference
Transmission
8-speed shuttleReference
TypeshuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (claimed)16.4 kWReference
Rear TypeIReference
Rear lift506 kgReference
Rear PTOlive (dual stage)Reference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase166 cmReference
Weight1539 kgReference
Front tire6.00x16Reference
Rear tire11.2x24Reference
Ag front6.00x16Reference
Ag rear11.2x24Reference
Length303 cmReference
Width134 cmReference
Operating weight1539 kgReference
Ground clearance34 cmReference
Front tread109 cmReference
Rear tread104/115/124/135 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
