Tractor · 1972Unverified

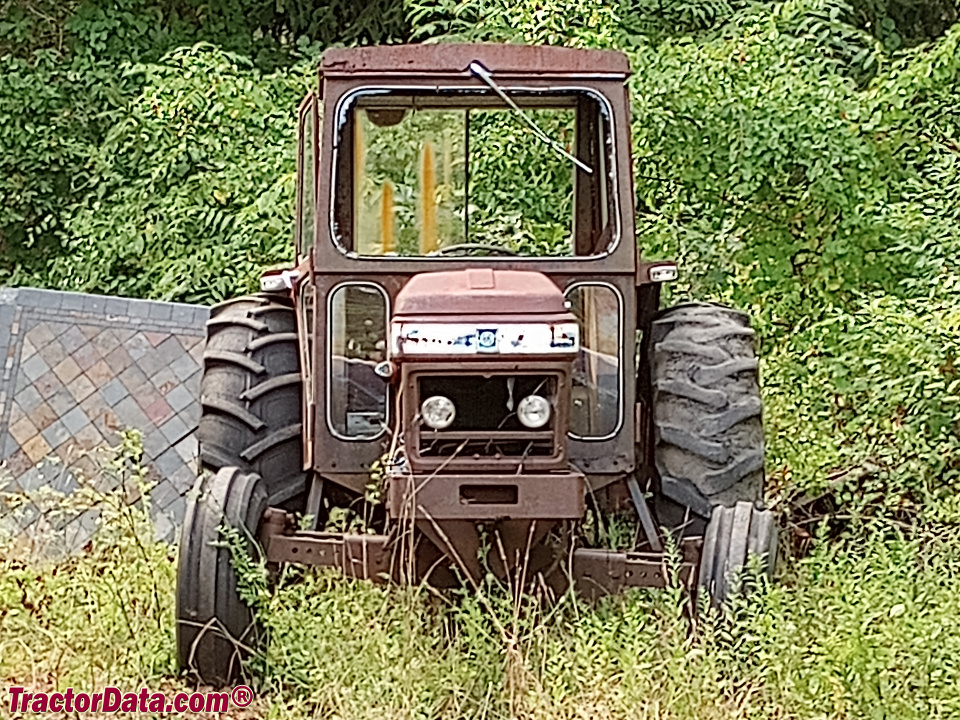

Leyland 2100
Leyland 2100 — Row-Crop tractor · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Max power
54.6 kW
Weight
4041 kg
Hover a source tag to verify
Overview
ManufacturerLeylandReference
Row-Crop tractorReference
Built in Bathgate, ScotlandReference
Two-wheel driveReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Cab standard. Insulated cab with heat after 1976. Open station available.Reference
Variants
21002WDReference
41004WDReference
Engine
Leyland 5.6L 6-cyl dieselReference
Fuel tank94.6 LReference
Engine74.6 kWReference
Drawbar (tested)54.6 kWReference
Leyland 6/98Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.6 LReference
Bore/Stroke98 x 125 mmReference
Power74.6 kWReference
Air cleanercyclonic dry typeReference
Compression16.8:1Reference
Rated RPM2100Reference
Starter volts12Reference
Power at rated engine speed65.9 kWReference
Max power54.6 kWReference
Transmission
10-speedReference
9-speed synchromeshReference
Gears10 forward and 2 reverseReference
Clutchdry discReference
Five gears, plus reverse, in two ranges.Reference
TypesynchromeshReference
Gears9 forward and 3 reverseReference
Three synchronized gears, plus reverse, in three ranges. The synchro transmission became available in 1979.Reference
PTO & Hydraulics
PTO (claimed)65.6 kWReference
PTO (tested)65.9 kWReference
Typeopen centerReference
Pump flow41.6 lpmReference
Rear TypeIIReference
Rear lift2721 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM1000@1818Reference
Power at rated PTO speed62.1 kWReference
Dimensions
Wheelbase228 cmReference
Weight4041 kgReference
Front tire7.50-16Reference
Rear tire14-34Reference
Ag front7.50-16Reference
Ag rear14-34Reference
Length381 cmReference
Width217 cmReference
Operating weight4041 kgReference
Ballasted weight6014 kgReference
Test results
Diesel 10-speed 2WDMay 3 - 30, 1975Link: Nebraska Tractor Test 1178 fileReference
PTO performanceReference
Fuel use21.2 l/hourReference
Fuel use19.3 l/hourReference
Drawbar performanceReference
Gear 6 used for power test.Reference
Max pull2293 kgReference
Gear 2-High used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
