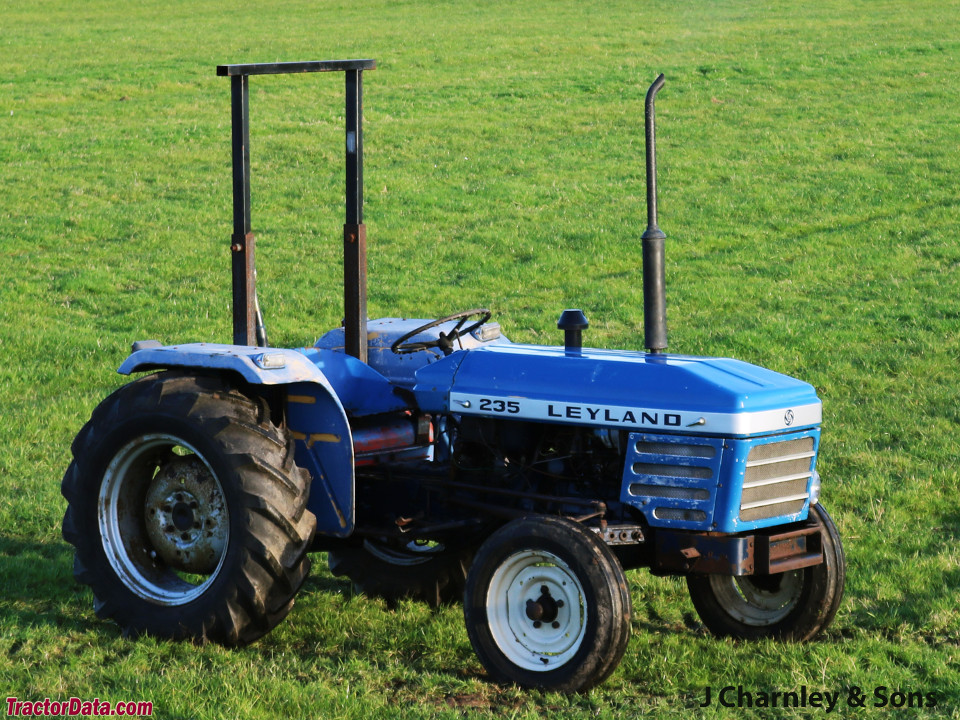

The Leyland 235 is a tractor rated at 28 hp — making it one of the more compact options in its class. The 235 was manufactured from 1982 to 1984. Power comes from a 4-cylinder diesel liquid-cooled engine, driving through two-wheel drive with a 9-speed gearbox. Listed weight is 1229 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
1229 kg
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
28 hp
Recorded weight
1229 kg
Transmissions
9-speed gear
Production years
1982-1984
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLeylandReference
Utility tractorReference
Original price was $8,300 in 1984Reference
Two-wheel driveReference
Manual steeringReference
Engine
Leyland 1.8L 4-cyl dieselReference
Fuel tank31.8 LReference
Engine20.9 kWReference
Leyland 18TReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke80 x 89 mmReference
Power20.9 kWReference
Rated RPM2500Reference
Torque93.6 NmReference
Torque RPM1600Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Rear lift567 kgReference
Rear PTOcontinuousReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase170 cmReference
Weight1229 kgReference
Front tire5.50-16Reference
Rear tire14-24Reference
Ag front5.50-16Reference
Ag rear14-24Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
