Tractor · 1972Unverified

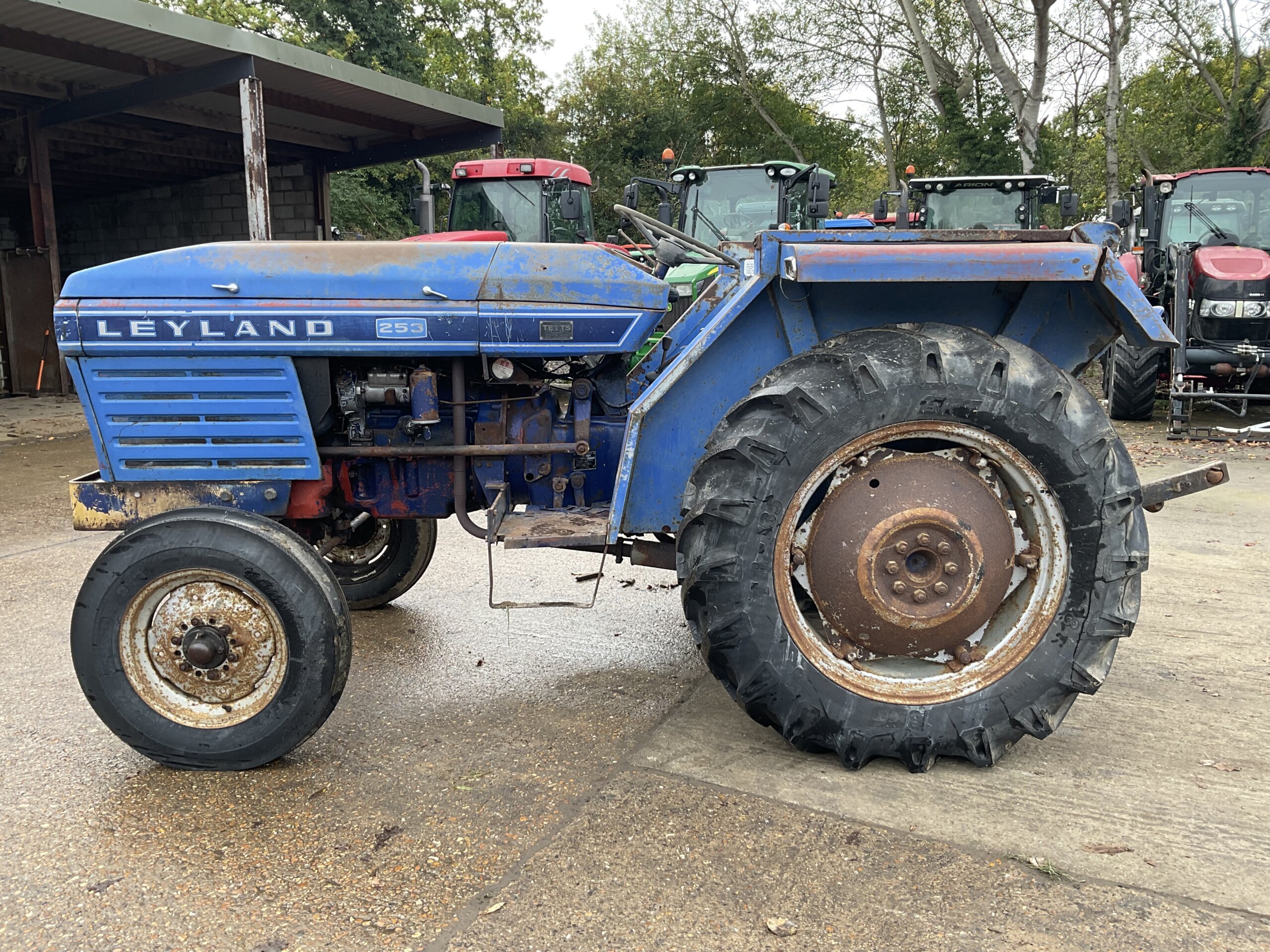

Leyland 253
Leyland 253 — Utility tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
2116 kg
Hover a source tag to verify
Overview
ManufacturerLeylandReference
Utility tractorReference
Two-wheel driveReference
Open operator station.Reference
Engine
Perkins 2.5L 3-cyl dieselReference
Engine35.0 kWReference
PerkinsReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power35.0 kWReference
Fuel systemdirect injectionReference
Compression18.5:1Reference
Rated RPM2250Reference
Torque173.6 NmReference
Torque RPM1300Reference
Transmission
10-speedReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)26.1 kWReference
Valves2Reference
Pump flow30.3 lpmReference
Rear TypeII/IReference
Rear lift1701 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1812Reference
Dimensions
Weight2116 kgReference
Length321 cmReference
Width162 cmReference
Speeds
With 11.00x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
