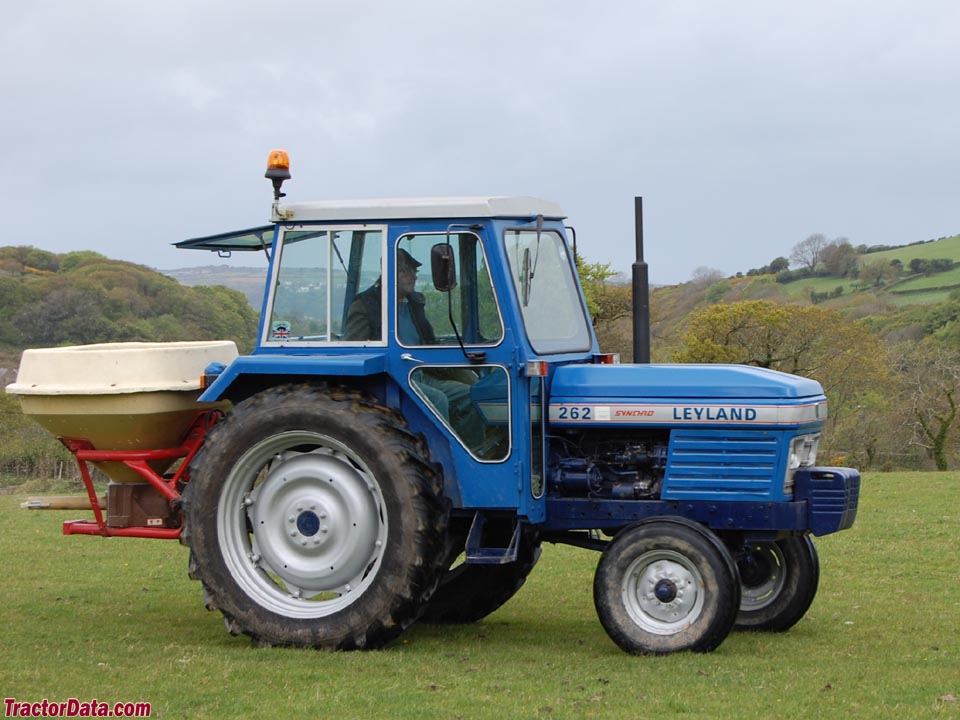

The Leyland 262 tractor is a lightweight model, with a rating of approximately 48 horsepower. It was manufactured from 1976 to 1984. The 262 is equipped with a 4-cylinder diesel liquid-cooled engine and features four-wheel drive with a 10-speed gearbox. Its operating weight is listed at 2449 kg, suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
2449 kg
Catalogue coverage
Variants represented
2
Richest spec table
49 rows
Recorded power
48 hp
Recorded weight
2449 kg
Transmissions
10-speed gear
Production years
1976-1984
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLeylandReference
Two-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Disc brakesReference
Open operator station. Cab available.Reference
Variants
2622WDReference
4624WDReference
Engine
Leyland 3.8L 4-cyl dieselReference
Fuel tank56.8 LReference
Engine45.3 kWReference
Leyland 4/98DTReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke98 x 125 mmReference
Power45.3 kWReference
Compression16.8:1Reference
Rated RPM2200Reference
Torque223.7 NmReference
Torque RPM1200Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Transmission
10-speed gearReference
9-speedReference
TypegearReference
Gears10 forward and 2 reverseReference
Clutchdry discReference
TransmissionSynchroReference
Gears9 forward and 3 reverseReference
Three synchromesh gears, plus reverse, in three ranges.Reference
PTO & Hydraulics
PTO (claimed)35.8 kWReference
PTO (claimed)39.5 kWReference
Pump flow30.3 lpmReference
Rear TypeII/IReference
Rear lift (at ends)1814 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1813Reference
Dimensions
Wheelbase203 cmReference
Weight2449 kgReference
Front tire7.50-16Reference
Rear tire16.9-30Reference
Ag front7.50-16Reference
Ag rear16.9-30Reference
Length337 cmReference
Width162 cmReference
Ground clearance45 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
