Tractor · 1976Unverified

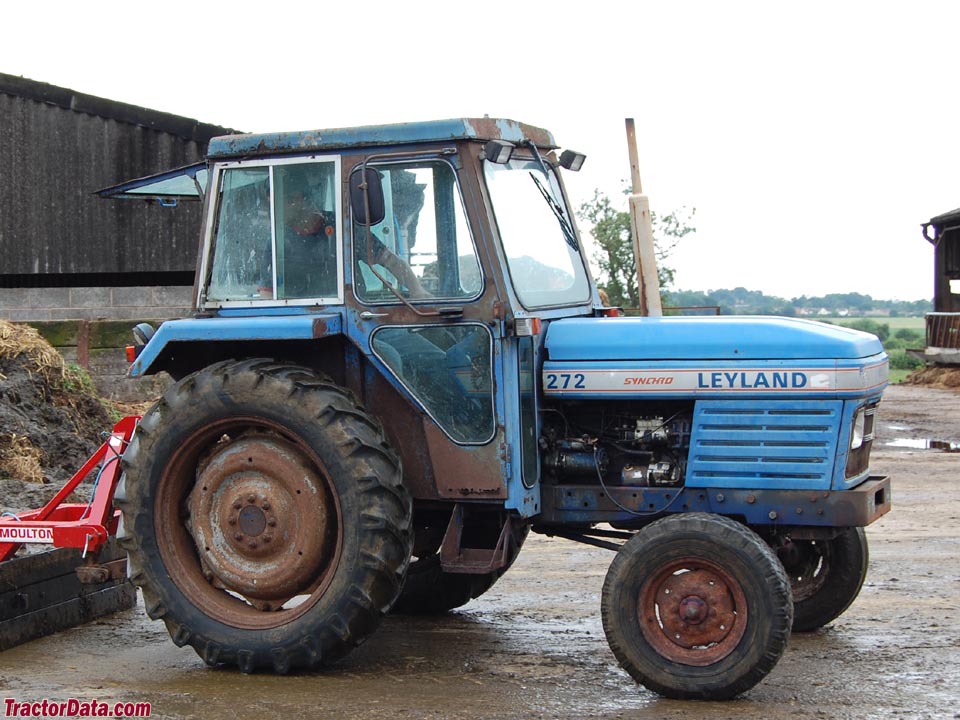

Leyland 272

Name: Leyland 272
Brand: Leyland

Leyland 272 · 64 hp. Reference specifications; pending source verification.

The Leyland 272 is a tractor with a power rating of 64 hp, positioning it as a compact option in its class. Manufactured between 1976 and 1984, it features a 4-cylinder diesel liquid-cooled engine. The tractor is equipped with four-wheel drive and a hydrostatic transmission. Its listed weight is 3402 kg, suitable for tasks covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

64 hp

Max power

38.5 kW

Weight

3402 kg

Catalogue coverage

Variants represented

Richest spec table

50 rows

Recorded power

64 hp

Recorded weight

3402 kg

Transmissions

9-speed

Production years

1976-1984

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLeylandReference

Original price$12,500 (1984)Reference

The Leyland 472 is the four-wheel drive version of the 272.Reference

Two-wheel driveReference

Steeringhydrostatic powerReference

Independent hydraulic dry disc brakesReference

Variants

2722WDReference

4724WDReference

Engine

Leyland 3.8L 4-cyl dieselReference

Fuel tank68.1 LReference

Engine52.9 kWReference

Drawbar (tested)38.5 kWReference

LeylandReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.8 LReference

Bore/Stroke98 x 125 mmReference

Power52.9 kWReference

Air cleanersingle paper elementReference

Compression16.8:1Reference

Rated RPM2200Reference

Torque78.6 NmReference

Torque RPM1200Reference

Starter volts12Reference

Power at rated engine speed47.4 kWReference

Max power38.5 kWReference

Transmission

9-speedReference

10-speedReference

Gears9 forward and 3 reverseReference

Gears10 forward and 2 reverseReference

PTO & Hydraulics

PTO (tested)47.4 kWReference

Rear TypeI,IIReference

Rear PTOindependentReference

Rear PTO Type540Reference

Power at rated PTO speed43.6 kWReference

Dimensions

Wheelbase211 cmReference

Weight3402 kgReference

Front tire7.50-16Reference

Rear tire18.4-30Reference

Ag front7.50-16Reference

Ag rear18.4-30Reference

Length340 cmReference

Height267 cmReference

Test results

Diesel 9-speed 2WDApril 18 - 26, 1980Link: Nebraska Tractor Test 1341 fileReference

PTO performanceReference

Fuel use17.4 l/hourReference

Fuel use14.8 l/hourReference

Drawbar performanceReference

Gear 4 used for power test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
