Tractor · 1973Unverified

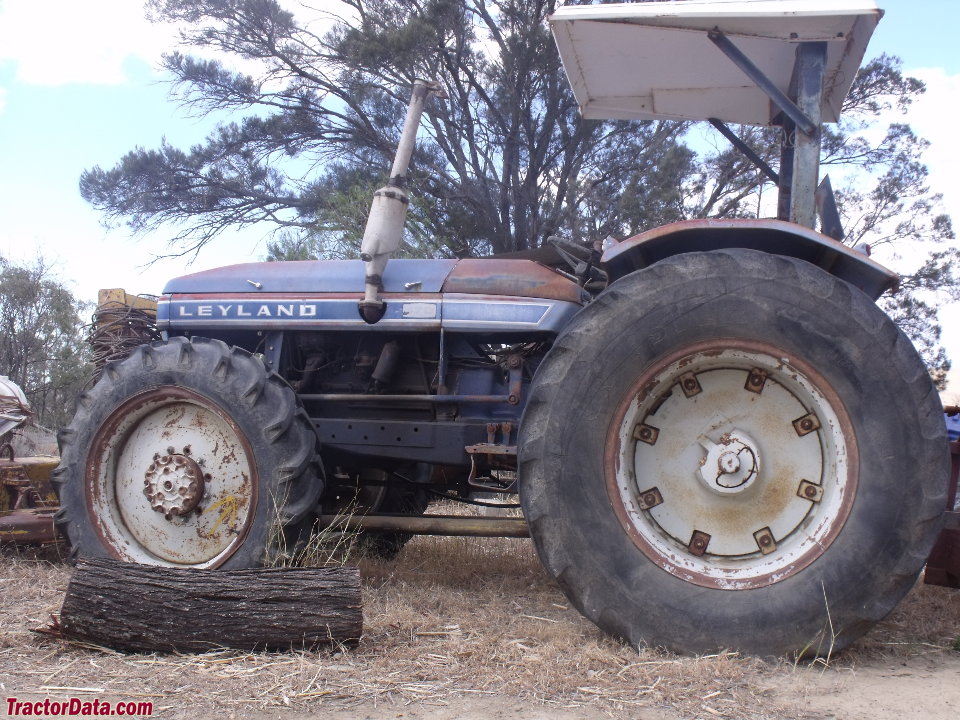

Leyland 470
Leyland 470 — Utility tractor · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
3181 kg
Hover a source tag to verify
Overview
ManufacturerLeylandReference
Utility tractorReference
The Leyland 470 was a 270 with a four-wheel drive system installed by Four Wheel Traction Ltd.Reference
Four-wheel driveReference
Steeringpower assistReference
Mechanical dry disc brakesReference
Safety cab standard.Reference
Engine
Leyland 3.8L 4-cyl dieselReference
Fuel tank68.1 LReference
Engine (net)52.2 kWReference
Leyland 4/98NTReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke98 x 125 mmReference
Power (net)52.2 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Rated RPM2200Reference
Torque257.6 NmReference
Torque RPM1300Reference
Starter volts12Reference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 2 reverseReference
Clutchmechanical dry discReference
Five gears (1-5) plus reverse (R) in two ranges (low/high).Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow29.9 lpmReference
Rear TypeII/IReference
Controlposition and top-link draft controlReference
Rear lift1814 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase209 cmReference
Weight3181 kgReference
Front tire10x24Reference
Rear tire12x38Reference
Ag front10x24Reference
Ag rear12x38Reference
Length372 cmReference
Height (cab)243 cmReference
Front tread152 to 182 cmReference
Rear tread142 to 203 cmReference
Electrical
Charging systemalternatorReference
Charging amps34Reference
Battery volts12Reference
Battery AH128Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
