Tractor · Unverified

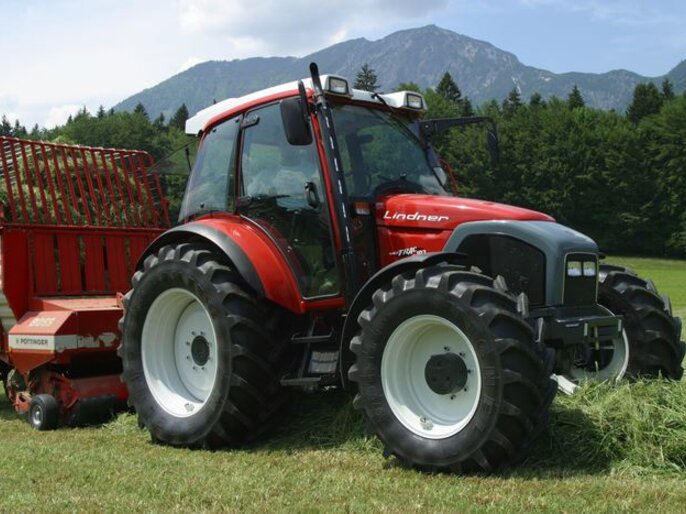

Lindner Geotrac 103
Lindner Geotrac 103 · 97 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
97 hp
Weight
3720 kg
Hover a source tag to verify
Overview
ManufacturerLindnerReference
Built in AustriaReference
Four-wheel driveReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank115.1 LReference
Engine72.3 kWReference
Perkins 1104Reference
turbo dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
Power72.3 kWReference
Rated RPM2200Reference
Torque547.8 NmReference
Torque RPM1400Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Pressure175.0 barReference
Total flow50.0 lpmReference
Rear PTO Type430, 540, 750, 1000Reference
Front PTO Type1000Reference
Dimensions
Wheelbase223 cmReference
Weight3720 kgReference
Front tire340/85R24Reference
Rear tire420/85R34Reference
Ag front340/85R24Reference
Ag rear420/85R34Reference
Length385 cmReference
Width201 cmReference
Height256 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
