Tractor · 1978Unverified

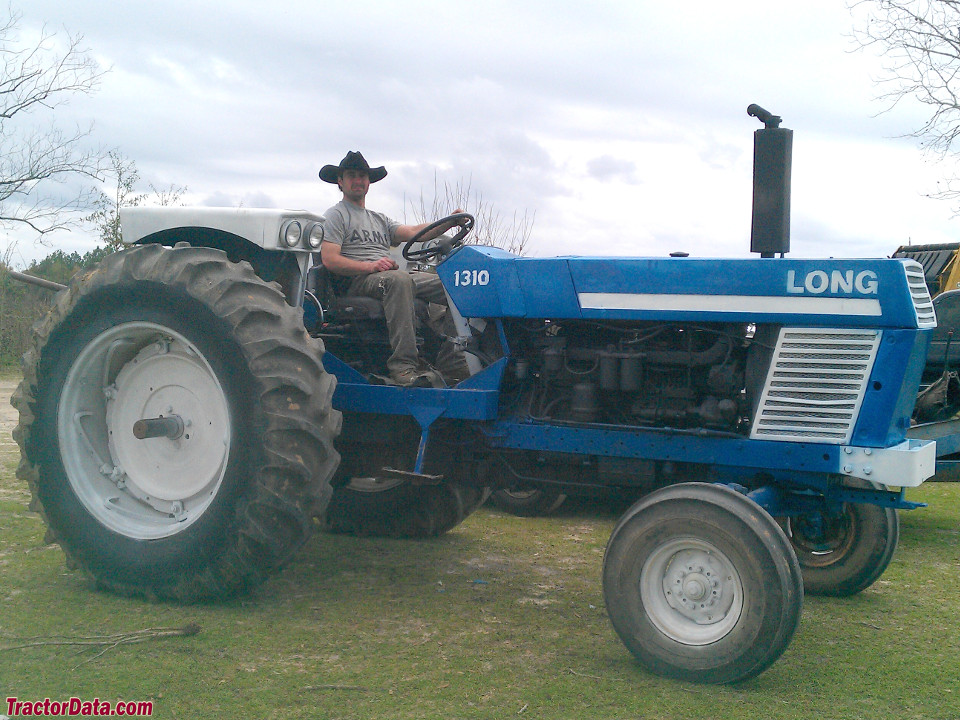

Long 1310
Long 1310 — Row-Crop tractor · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
4082 kg
Hover a source tag to verify
Overview
DistributorLongReference
ManufacturerZetorReference
Row-Crop tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (1310DT)Reference
Steeringhydraulic powerReference
Hydraulic disc brakesReference
Open operator station. Two-post ROPS optional. Cab optional.Reference
Variants
1310DT4WDReference
Engine
Zetor 7.0L 6-cyl dieselReference
Engine89.5 kWReference
ZetorReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.0 LReference
Bore/Stroke110 x 120 mmReference
Power89.5 kWReference
Compression17:1Reference
Rated RPM2200Reference
Torque417.6 NmReference
Starter volts12Reference
Starter power4.5 kWReference
Oil capacity19.2 LReference
Coolant capacity25.2 LReference
Transmission
16-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Clutch13-inch cerametallic dry discReference
Oil capacity45.4 LReference
Eight forward and four reverse gear with torque converter (TC).Reference
PTO & Hydraulics
PTO (claimed)78.3 kWReference
Valves1 or 2Reference
Total flow56.8 lpmReference
Steering cap.7.1 LReference
Rear Type2Reference
Controlposition and depth controlReference
Rear lift2993 kgReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540/1000Reference
Capacities
Fuel131.0 LReference
Steering7.1 LReference
Dimensions
Wheelbase276 cmReference
Weight4082 kgReference
Front tire11.5Lx15Reference
Rear tire18.4x38 (2WD)Reference
Standard tires (ag)Front: 11.5Lx15. Rear: 18.4x38 (2WD)Reference
Standard tires (ag)Front: 14.9x24. Rear: 18.4x34 (4WD)Reference
Length425 cmReference
Width235 cmReference
Shipping weight4082 kgReference
Clearance (front axle)53 cmReference
Bar rear axle82 mmReference
Front tread162 to 223 cmReference
Rear tread157 to 243 cmReference
Rear tread157 to 254 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 16.9-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
