Tractor · 1993Unverified
Long 2260

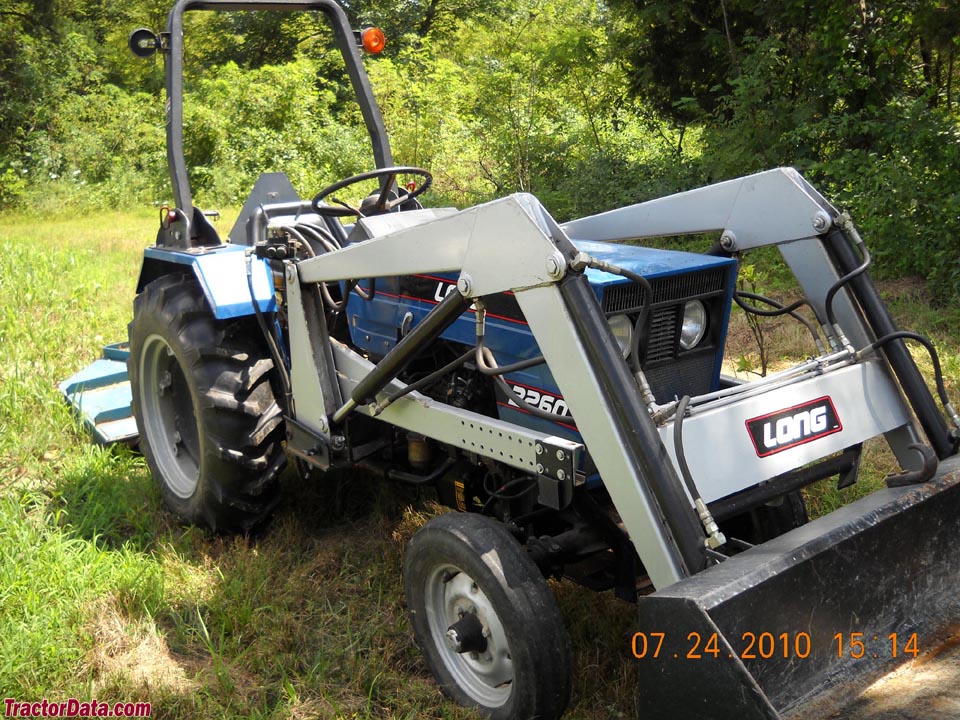

Long 2260 — Compact Utility tractor · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Hover a source tag to verify
Overview
DistributorLongReference
ManufacturerUTB/UniversalReference
Compact Utility tractorReference
Built in Brasov, RomaniaReference
Two-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical band brakesReference
Two-post folding ROPS.Reference
Engine
UTB/Universal 1.6L 2-cyl dieselReference
Fuel tank54.1 LReference
UTB/UniversalReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Air cleaneroil bathReference
Pre-heatingthermostartReference
Starter volts12Reference
Coolant capacity8.0 LReference
Transmission
6-speed partially synchronizedReference
Typepartially synchronizedReference
Gears6 forward and 2 reverseReference
Clutch254mm dry discReference
Gear pairs 2/3 and 5/6 are synchronized.Reference
PTO & Hydraulics
PTO (claimed)17.9 kWReference
Typeopen centerReference
Total flow22.7 lpmReference
Rear TypeI/0Reference
Rear PTOliveReference
Rear PTO Type540Reference
Engine RPM540@1970Reference
Dimensions
Front tire5.00-15Reference
Rear tire11.2-24Reference
Ag front5.00-15Reference
Ag rear11.2-24Reference
Front tread100 to 139 cmReference
Rear tread93 to 139 cmReference
Long 2260 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Long 1548A loaderReference
Long 1550C loaderReference
Long 2099 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
