Tractor · 1980Unverified

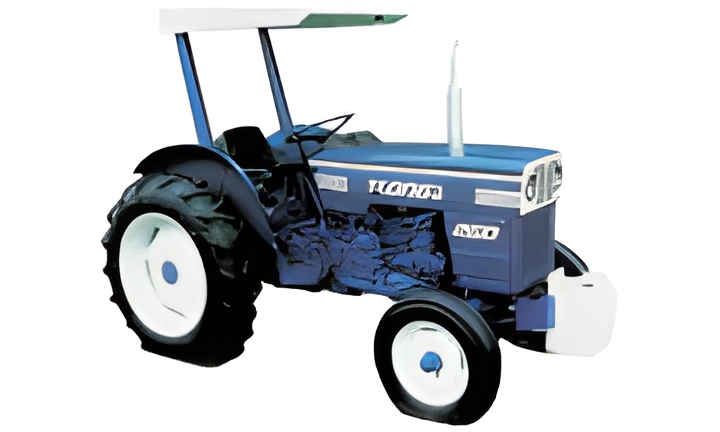

Long 260
Long 260 — Utility tractor · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1483 kg
Hover a source tag to verify
Overview
DistributorLongReference
ManufacturerUTB/UniversalReference
Utility tractorReference
Two-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
SteeringmanualReference
Steeringhydrostatic powerReference
Mechanical band brakesReference
Open operator station. Two-post fixed ROPS available. FOPS canopy optional.Reference
Variants
260-Ccompact chassisReference
260similar UTB/Universal modelReference
Engine
UTB/Universal 1.6L 2-cyl dieselReference
UTB/UniversalReference
dieselReference
2-cylinderReference
liquid-cooled inlineReference
Displacement1.6 LReference
Bore/Stroke95 x 110 mmReference
Air cleaneroil bathReference
Pre-heatingcoolant heater (optional)Reference
Compression17:1Reference
Rated RPM2400Reference
Idle RPM600-2550Reference
Firing order1-2Reference
Starter volts12Reference
Coolant capacity8.0 LReference
Oil capacity4.3 LReference
Transmission
6-speed partially synchronizedReference
8-speed partially synchronizedReference
Typepartially synchronizedReference
Gears6 forward and 2 reverseReference
Oil capacity16.1 LReference
Oil typeLONG Multi-Purpose Tractor FluidReference
Gears 2-3 and 5-6 are synchronized.Reference
Gears8 forward and 2 reverseReference
Oil capacity17.0 LReference
Gears 3-4 and 7-8 are synchronized.Reference
PTO & Hydraulics
PTO (claimed)17.9 kWReference
Hydraulic system16.1 LReference
Hydraulic system37.9 LReference
Typeopen centerReference
Capacity16.1 LReference
Capacity37.9 LReference
Valves0 to 2Reference
Total flow21.8 lpmReference
Rear lift0 kgReference
Rear lift (at ends)1199 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1970Reference
Capacities
Fuel54.1 LReference
Rear diff.1.4 LReference
Dimensions
Wheelbase179 cmReference
Weight1483 kgReference
Front tire5.00-15Reference
Rear tire11.2-28Reference
Standard tires (ag)Front: 5.00-15. Rear: 11.2-28Reference
Ag rear12.4-24Reference
Length276 cmReference
Width167 cmReference
Shipping weight1483 kgReference
Clearance (front axle)43 cmReference
Clearance (rear axle)48 cmReference
Front tread127 to 196 cmReference
Rear tread118 to 188 cmReference
Steering wheel148 cmReference
Long 260 attachments
front-end loaderReference
260 Serial Numbers
Location:A tractor identification plate is located on the right-hand side of the transmission housing.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps30Reference
Batteries1Reference
Batteries2Reference
Battery volts12Reference
Battery volts6Reference
Battery GroupBCI 30H (12v)Reference
Battery GroupBCI 3EH (6v)Reference
Long 260 Height
Hood133 cmReference
Exhaust191 cmReference
Speeds
With 11.2-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
