Tractor · 1977Unverified

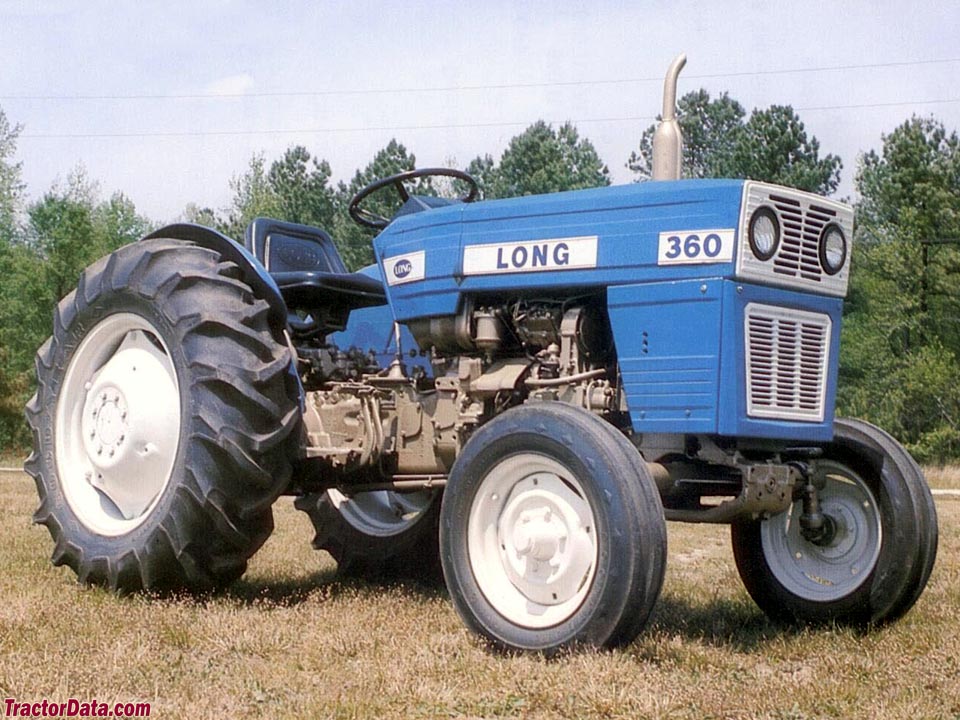

Long 360
Long 360 — Utility tractor · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Max power
23.2 kW
Weight
3750 to 4480 pounds
Hover a source tag to verify
Overview
DistributorLongReference
ManufacturerUTB/UniversalReference
Utility tractorReference
Built in Brasov, RomaniaReference
The Long 360 carried model number 1563.Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
SteeringmanualReference
Steeringpower optionalReference
Independent contracting band brakesReference
Open operator station.Reference

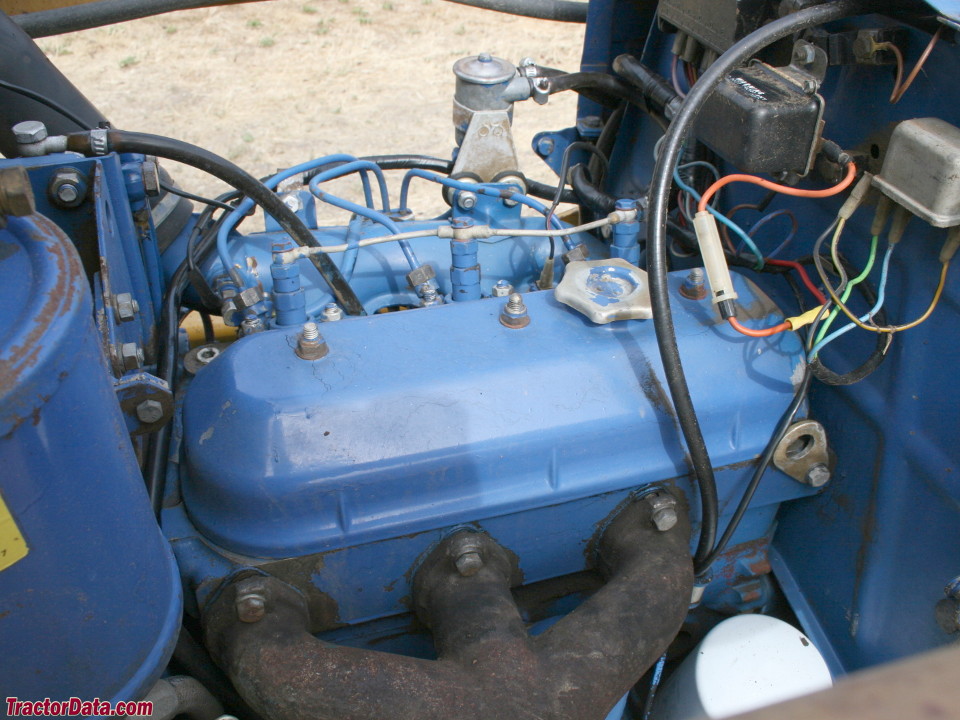

Engine
Uzina 2.3L 3-cyl dieselReference
Engine28.3 kWReference
Drawbar (claimed)22.4 kWReference
Drawbar (tested)23.2 kWReference
Uzina D-115Reference
dieselReference
3-cylinder 6-valveReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke95 x 110 mmReference
Power28.3 kWReference
Compression17:1Reference
Rated RPM2255Reference
Idle RPM600-2355Reference
Torque130.4 NmReference
Torque RPM1590Reference
Firing order1-2-3Reference
Starter volts12Reference
Oil capacity7.8 LReference
Coolant capacity12.8 LReference
Intake valve clearance2.499 mmReference
Exhaust valve clearance2.499 mmReference
Power at rated engine speed27.0 kWReference
Max power23.2 kWReference
Transmission
6-speed partially synchronizedReference
8-speedReference
Typepartially synchronizedReference
Gears6 forward and 2 reverseReference
Oil capacity17.0 LReference
Shifts between gears 2-3 and 5-6 are synchronized.Reference
Gears8 forward and 2 reverseReference

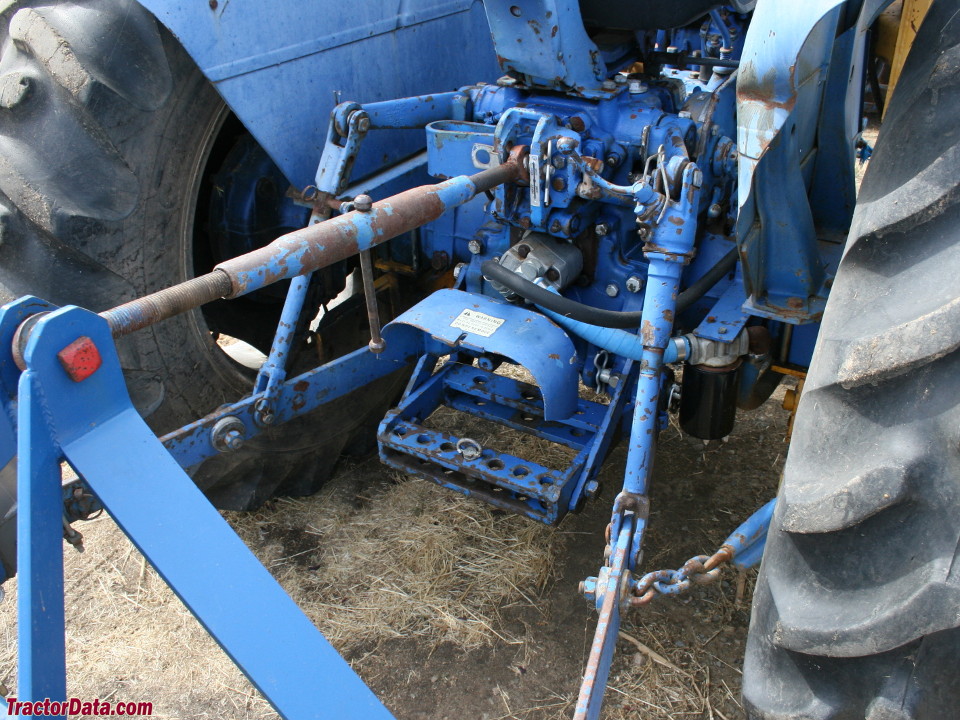

PTO & Hydraulics
PTO (claimed)26.1 kWReference
PTO (tested)27.0 kWReference
Hydraulic system17.0 LReference
Typeopen centerReference
Capacity17.0 LReference
Valves1Reference
Total flow21.8 lpmReference
Rear TypeII/IReference
Rear lift1202 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Engine RPM540@1970Reference
Power at rated PTO speed23.2 kWReference
Capacities
Fuel53.9 LReference
Dimensions
Wheelbase190 cmReference
Weight3750 to 4480 poundsReference
Front tire7.50-16Reference
Rear tire14.9-28Reference
Ag front7.50-16Reference
Ag rear14.9-28Reference
Length287 cmReference
Height (steering wheel)140 cmReference
Height (hood)136 cmReference
Ground clearance45 cmReference
Shipping1701 kgReference
Operating2032 kgReference
Ballasted2907 kgReference
Long 360 attachments

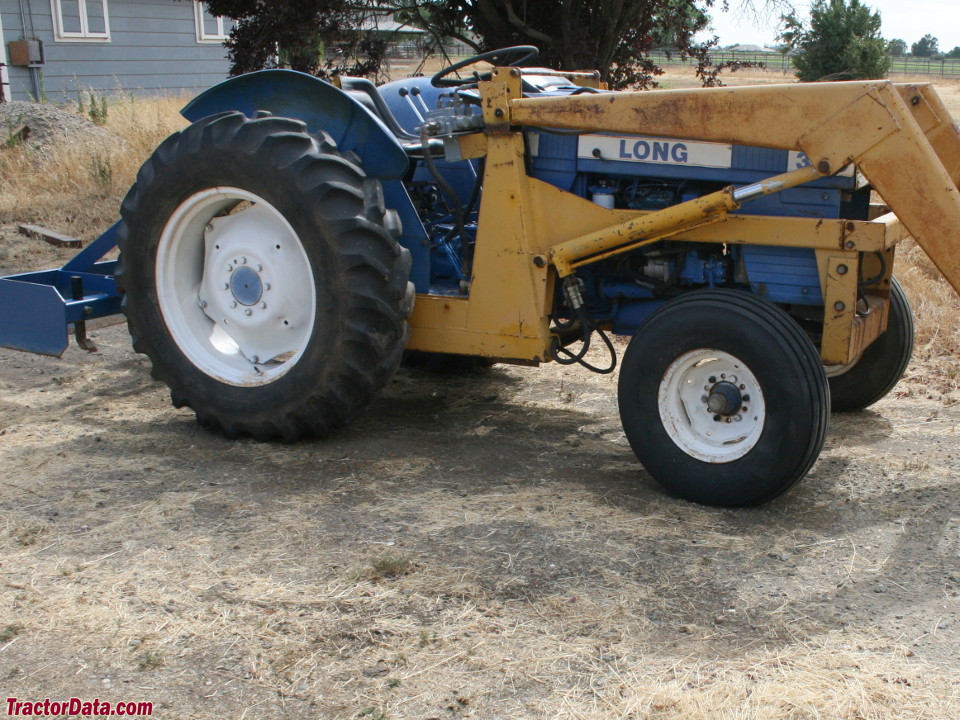

front-end loaderReference
360 Serial Number Location
Serial number plate on the right side of the tractor, near the brake pedals.Reference
Electrical
GroundnegativeReference
Battery CCA100Reference
Battery CCA135Reference
Battery volts12Reference
Test results
Diesel 6-speed 2WDMarch 13 - 20, 1979Link: Nebraska Tractor Test 1298 fileReference
PTO performanceReference
Fuel use9.5 l/hourReference
Fuel use8.3 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull2180 kgReference
Gear 1 used for pull test.Reference
Speeds
With 12.4x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
