Tractor · 1999Unverified

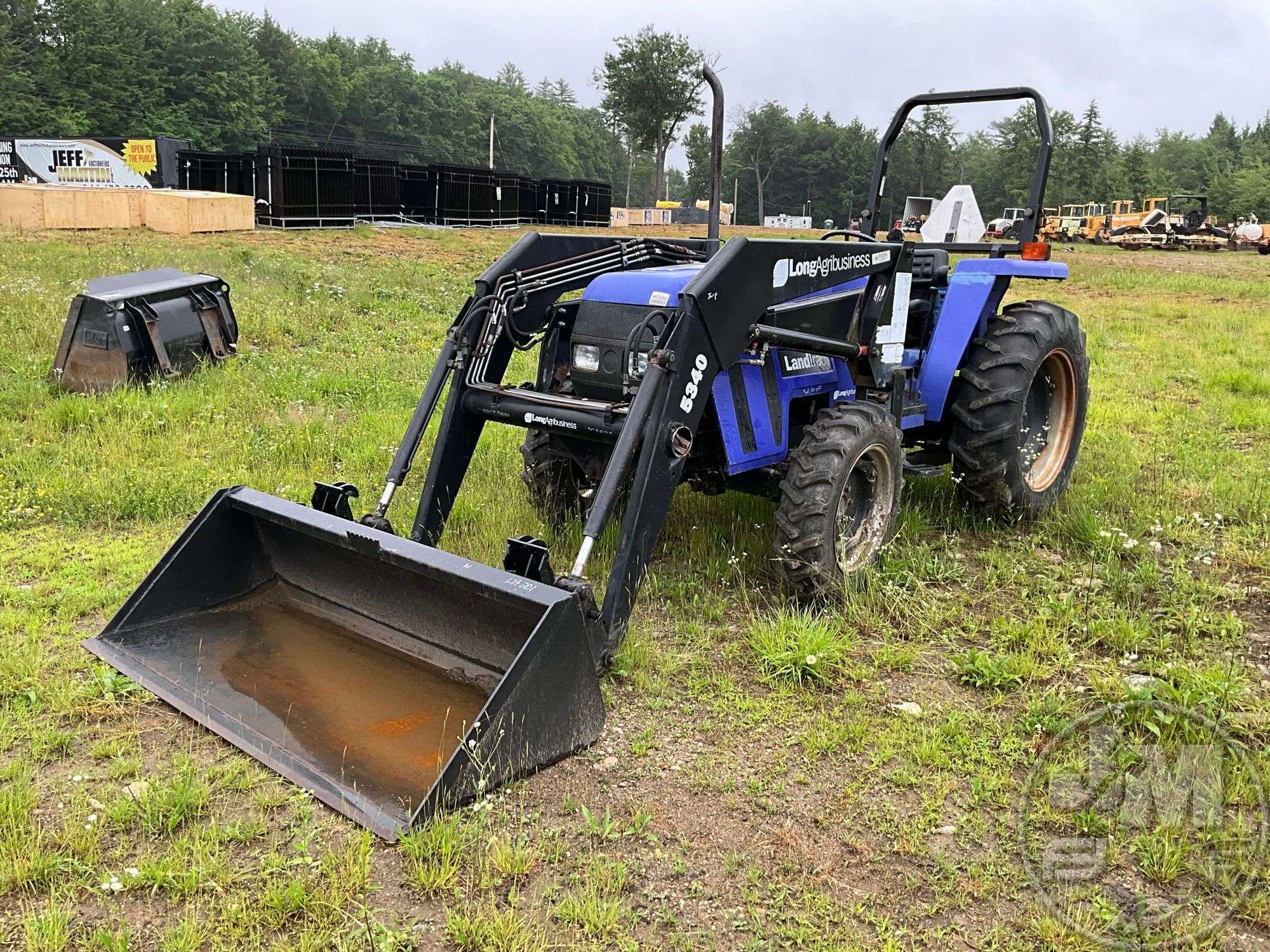

Long 410
Long 410 — Utility tractor · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
2013 kg
Hover a source tag to verify
Overview
ManufacturerLongReference
Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 2.3L 4-cyl dieselReference
Fuel tank54.9 LReference
Engine30.6 kWReference
MitsubishiReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke88 x 95 mmReference
Power30.6 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
TypeshuttleReference
Gears8 forward and reverseReference
Clutch275mm dry discReference
PTO & Hydraulics
PTO (claimed)28.3 kWReference
Typeopen centerReference
Pump flow33.3 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)1349 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase184 cmReference
Weight2013 kgReference
Front tire8.3x20Reference
Rear tire12.4x28Reference
Standard tires (ag)Front: 8.3x20. Rear: 12.4x28Reference
Length347 cmReference
Width156 cmReference
Height (ROPS)236 cmReference
Ground clearance34 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery CCA600Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
