Tractor · 1977Unverified

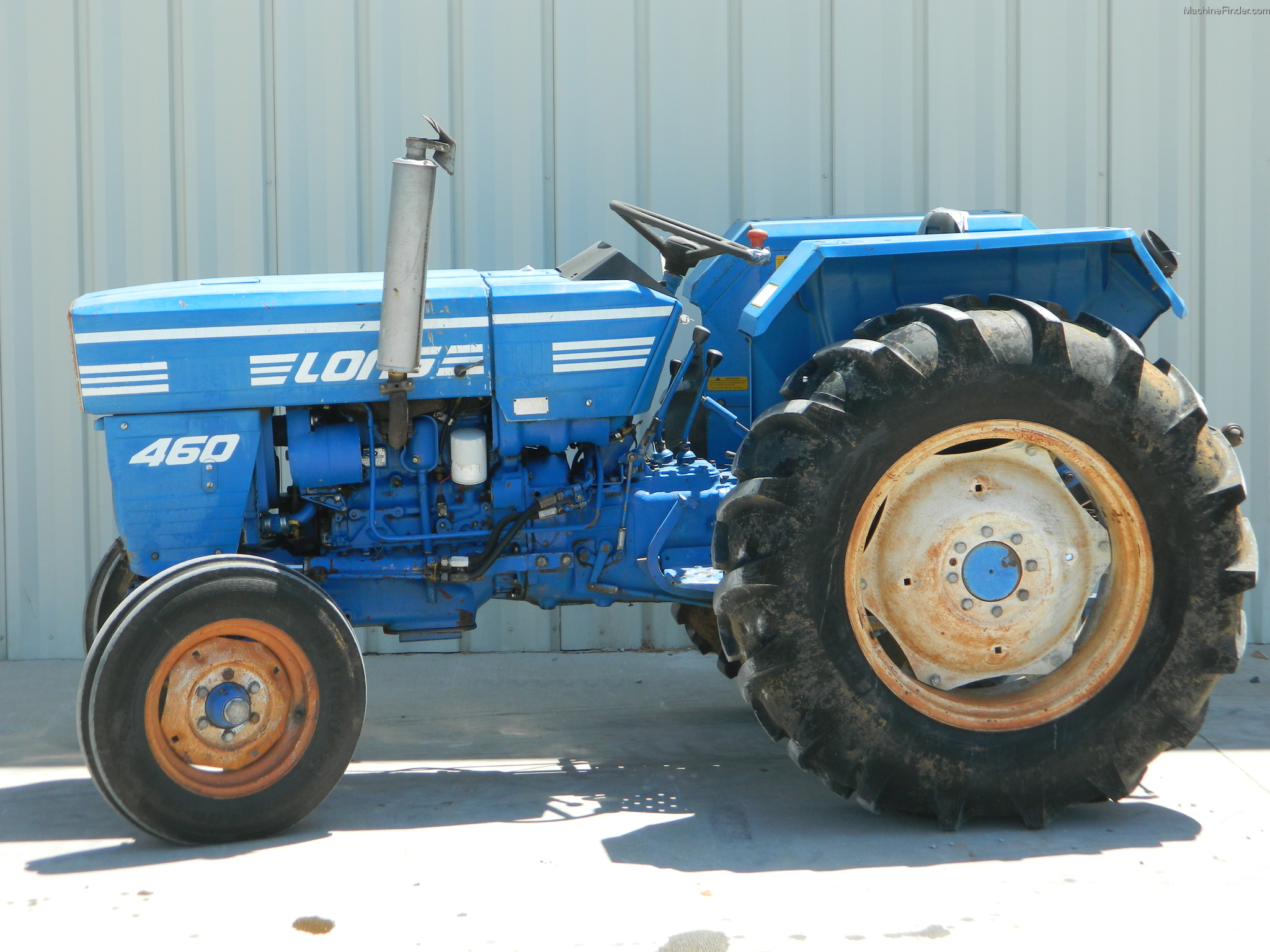

Long 460
Long 460 — Utility tractor · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Max power
27.6 kW
Weight
3850 to 4480 pounds
Hover a source tag to verify
Overview
DistributorLongReference
ManufacturerUTB/UniversalReference
Utility tractorReference
Built in Brasov, RomaniaReference
Two- or four-wheel driveReference
Differential lockpedal with automatic disengagementReference
SteeringmanualReference
Steeringpower optionalReference
Differential contracting band brakesReference
Open operator station.Reference
Variants
4602WDReference
460-DT4WDReference
Engine
Uzina 2.3L 3-cyl dieselReference
Engine33.6 kWReference
Drawbar (claimed)27.6 kWReference
Drawbar (tested)27.6 kWReference
Uzina 1529Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke95 x 110 mmReference
Power33.6 kWReference
Air cleaneroil bath with pre-cleanerReference
Compression17:1Reference
Rated RPM2400Reference
Idle RPM600-2550Reference
Torque RPM1500Reference
Firing order1-2-3Reference
Starter volts12Reference
Oil capacity7.8 LReference
Coolant capacity12.8 LReference
Power at rated engine speed31.3 kWReference
Max power27.6 kWReference
Transmission
6-speed partially synchronizedReference
9-speed partially synchronizedReference
8-speedReference
Typepartially synchronizedReference
Gears6 forward and 2 reverseReference
Oil capacity17.0 LReference
Shifts between gears 2-3 and 5-6 are synchronized. Six speed was used on early model 460s, until 1979.Reference
TransmissioncreeperReference
Gears9 forward and 3 reverseReference
Gears8 forward and 2 reverseReference
Eight speed transmission used from 1979 on.Reference
PTO & Hydraulics
PTO (claimed)31.2 kWReference
PTO (tested)31.3 kWReference
Hydraulic system17.0 LReference
Typeopen centerReference
Capacity17.0 LReference
Pressure147.1 barReference
Valves1Reference
Total flow21.8 lpmReference
Rear TypeII/IReference
Rear lift1206 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@1970Reference
Power at rated PTO speed27.2 kWReference
Capacities
Fuel53.9 LReference
Front diff.2.8 LReference
Dimensions
Wheelbase180 cmReference
DT Wheelbase190 cmReference
Weight3850 to 4480 poundsReference
Front tire6.00x16Reference
Rear tire14.9x28Reference
Ag front6.00x16 (2WD)Reference
Ag front7.50x20 (4WD)Reference
Ag rear14.9x28 (2WD)Reference
Ag rear13.6x28 (4WD)Reference
Ag front13.6x28 (2WD)Reference
Lawn/turf front7.50x16Reference
Lawn/turf rear13.6x28Reference
Lawn/turf rear18.4x16AReference
Length293 cmReference
Height (steering wheel)144 cmReference
Height (hood)137 cmReference
Ground clearance46 cmReference
Front tread128 to 196 cmReference
Rear tread120 to 188 cmReference
Shipping1746 kgReference
Operating2032 kgReference
Ballasted3538 kgReference
Electrical
GroundnegativeReference
Battery CCA100Reference
Battery volts12Reference
Test results
Diesel 6-speed 2WDSeptember 20 - 28, 1972Link: Nebraska Tractor Test 1108 fileReference
PTO performanceReference
Fuel use11.7 l/hourReference
Fuel use10.2 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull2680 kgReference
Gear 1 used for pull test.Reference
Speeds
With 14.9x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
