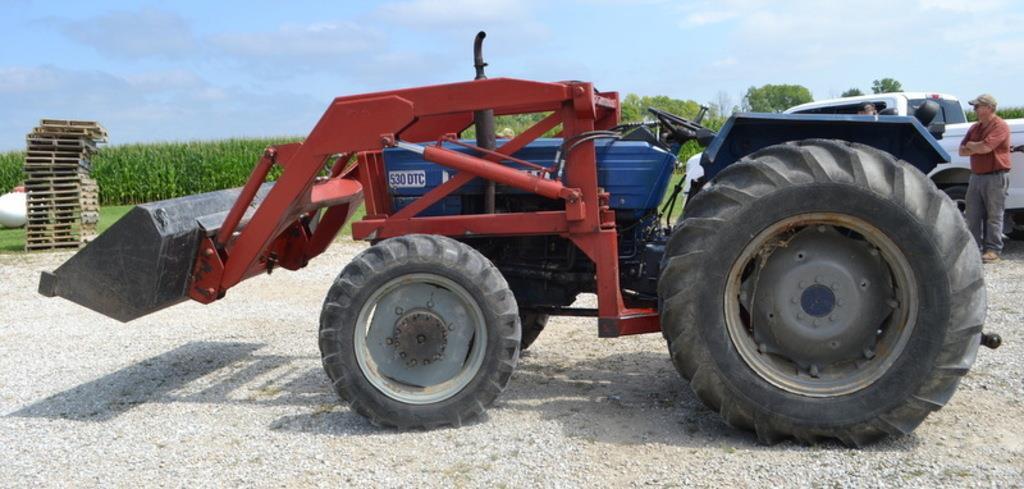

The Long 530 is a tractor model with a horsepower rating of approximately 46 hp, positioning it at the lighter end of its class. It was manufactured from 1999 to 2001. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine and a four-wheel drive system with an 8-speed gearbox. Its operating weight is specified at 2091 kg, with a suitable operating area of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
2091 kg
Catalogue coverage
Variants represented
2
Richest spec table
49 rows
Recorded power
46 hp
Recorded weight
2091 kg
Transmissions
8-speed shuttle
Production years
1999-2001
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLongReference
Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 3.3L 4-cyl dieselReference
Fuel tank54.9 LReference
Engine39.5 kWReference
MitsubishiReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke94 x 120 mmReference
Power39.5 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
TypeshuttleReference
Gears8 forward and reverseReference
Clutch275mm dry discReference
PTO & Hydraulics
PTO (claimed)34.3 kWReference
Typeopen centerReference
Pump flow36.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)1349 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase195 cmReference
Weight2091 kgReference
Front tire9.5x20Reference
Rear tire13.6x28Reference
Standard tires (ag)Front: 9.5x20. Rear: 13.6x28Reference
Length347 cmReference
Width165 cmReference
Height (ROPS)238 cmReference
Ground clearance37 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery CCA600Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
