Tractor · 1979Unverified

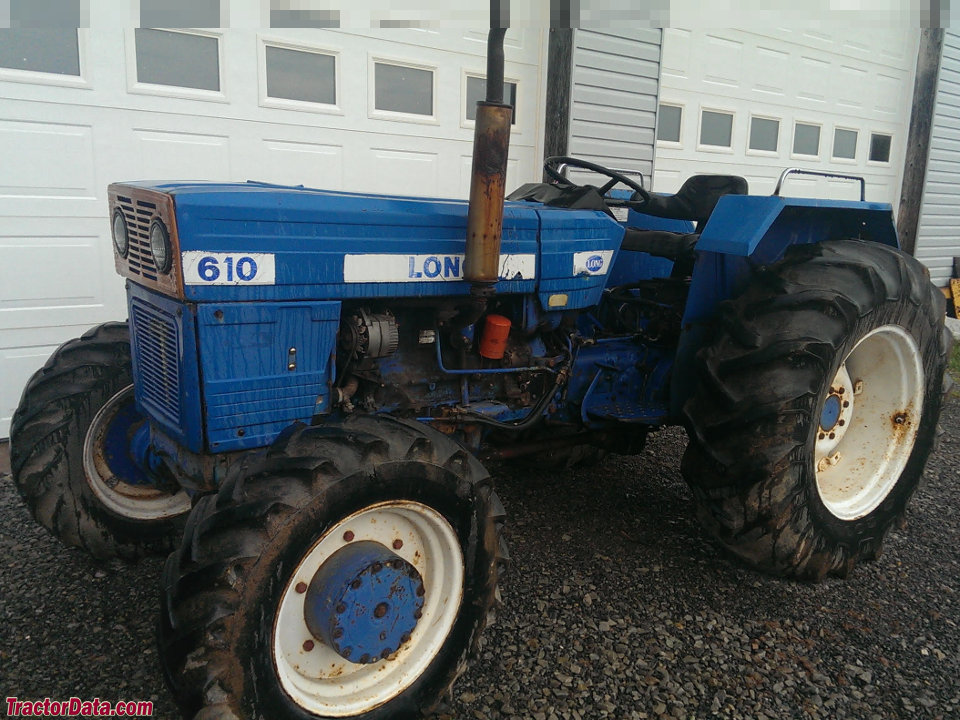

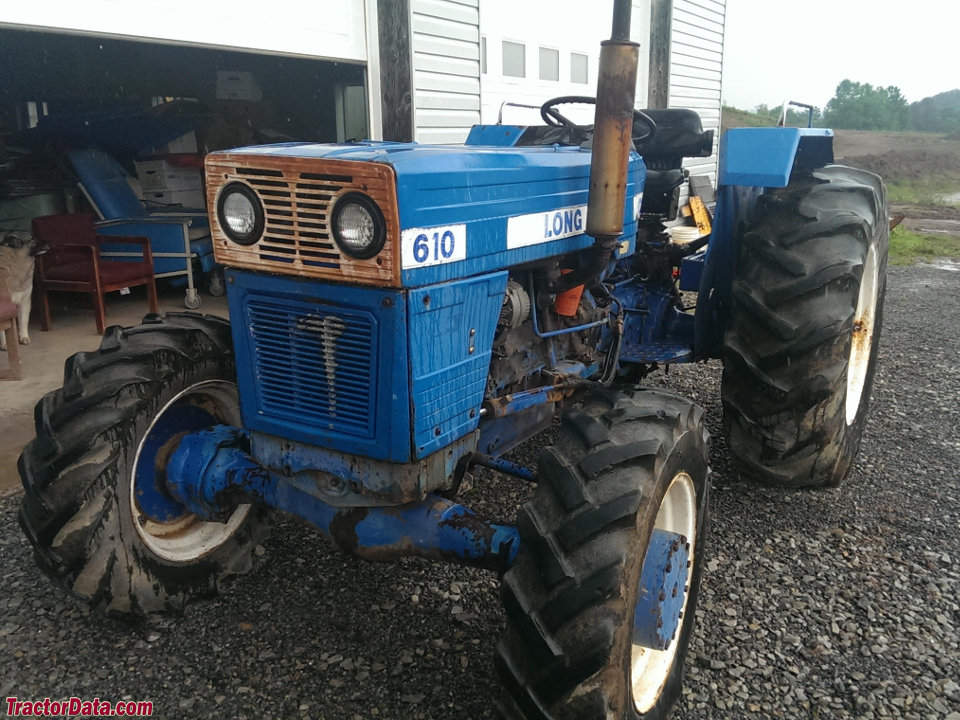

Long 610
Long 610 — Utility tractor · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Max power
41.8 kW
Hover a source tag to verify
Overview
DistributorLongReference
ManufacturerUTB/UniversalReference
Utility tractorReference
Built in Brasov, RomaniaReference
Some versions of the Long model 610 carried a "Model 1582" designation on the serial number plate.Reference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Independent contracting band brakesReference
Open operator station. Two-post fixed ROPS available. Cab available.Reference
Engine
UTB/Universal 3.6L 4-cyl dieselReference
Drawbar (tested)41.8 kWReference
UTB/UniversalReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke102 x 110 mmReference
Air cleaneroil bathReference
Pre-heatingthermostartReference
Compression17:1Reference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity9.9 LReference
Coolant capacity13.2 LReference
Power at rated engine speed48.0 kWReference
Max power41.8 kWReference
Transmission
8-speed partially synchornizedReference
Typepartially synchornizedReference
Gears8 forward and 2 reverseReference
Clutch279.4mm dry discReference
Oil capacity16.1 LReference
Four gears, plus reverse, in two ranges. Gears 3/4 are synchronized.Reference
PTO & Hydraulics
PTO (claimed)47.7 kWReference
PTO (tested)48.0 kWReference
Hydraulic system16.1 LReference
Typeopen centerReference
Capacity16.1 LReference
Pressure147.1 barReference
Valves1Reference
Pump flow21.8 lpmReference
Pump flow37.9 lpmReference
Total flow21.8 lpmReference
Rear TypeII/IReference
Rear lift1202 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2160Reference
Power at rated PTO speed45.2 kWReference
Capacities
Fuel53.9 LReference
Dimensions
2WD Wheelbase207 cmReference
4WD Wheelbase205 cmReference
Front tire7.50-16Reference
2WD Rear tire16.9-28Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-28Reference
4WD Standard tires (ag)Front: 9.5-20. Rear: 14.9-28Reference
Length345 cmReference
Height (hood)137 cmReference
Ballasted weight4075 kgReference
Ground clearance46 cmReference
2WD Front tread132 to 200 cmReference
4WD Front tread149 cmReference
Rear tread119 to 190 cmReference
Long 610 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH100Reference
Battery AH135Reference
Attachment overview
Long 1548A loaderReference
Long 1550C loaderReference
Test results
Diesel 8-speed 2WDOctober 27 - November 10, 1981Link: Nebraska Tractor Test 1417 fileReference
PTO performanceReference
Fuel use15.9 l/hourReference
Fuel use14.4 l/hourReference
Drawbar performanceReference
Fuel use15.5 l/hourReference
Gear 5 used for power test.Reference
Max pull3183 kgReference
Gear 2 used for pull test.Reference
Speeds
With 16.9-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
